ABMX

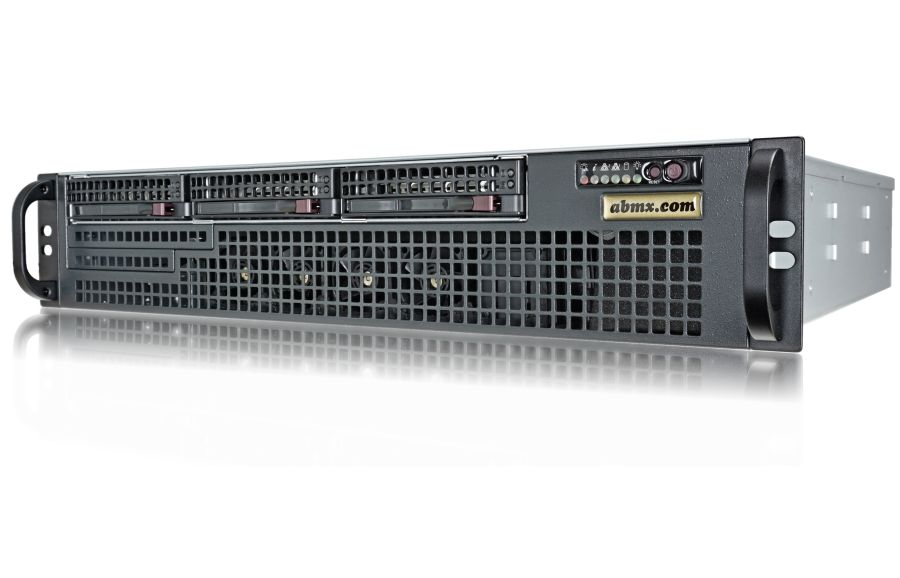

2U Server - AMD EPYC - 3 x Hot-Swap Bays

CTO
Model218L8H4SLN-NAS
ProcessorAMD EPYC 9124 · 16C
Memory16 GB DDR5 ECC
Storage256 GB SATA SSD

Specifications 7 normalized

Processor
Processor
AMD EPYC 9124 (16-Core, 3.0 GHz to 3.7 GHz)
Memory & storage
Memory
16 GB (1 x 16 GB) - DDR5 ECC Registered Memory
Storage
256 GB SATA SSD - Endurance: 72 TBW - Generic brand
Power & battery
Power
Redundant High-Efficiency Power Supply
Physical & build
Chassis
2U Rackmount Chassis (18-inch deep, 3 x hot-swap drive bays, Low-Profile PCI-e, Redundant Power)
Security
TPM
TPM 2.0 Trusted Platform Module (TCG 2.0)
Other
Motherboard
Supermicro H14SSL-NT Motherboard

Configurator · 11 groups · 120 options · tree only

⚠ this model configures to order without published per-option prices. Showing the configurable option tree without prices. Configure & price on abmx.com ↗
Processor 14 options
✓ AMD EPYC 9124 (16-Core, 3.0GHz to 3.7GHz)
AMD EPYC 9224 (24-Core, 2.5GHz to 3.7GHz)
AMD EPYC 9254 (24-Core, 2.9GHz to 4.15GHz)
AMD EPYC 9354 (32-Core, 3.25GHz to 3.8GHz)
AMD EPYC 9374F (32-Core, 3.85GHz to 4.3GHz)
AMD EPYC 9255 (24-Core, 3.2GHz to 4.3GHz)
AMD EPYC 9334 (32-Core, 2.7GHz to 3.9GHz)
AMD EPYC 9454P (48-Core, 2.75GHz to 3.8GHz)
AMD EPYC 9454 (48-Core, 2.75GHz to 3.8GHz)
AMD EPYC 9534 (64-Core, 2.45GHz to 3.7GHz)
AMD EPYC 9634 (84-Core, 2.25GHz to 3.1GHz)
AMD EPYC 9734 (112-Core, 2.2GHz to 3.0GHz)
AMD EPYC 9654 (96-Core, 2.4GHz to 3.7GHz)
AMD EPYC 9684X (96-Core, 2.55GHz to 3.7GHz)
Memory 7 options
✓ 16GB (1 x 16GB) - DDR5 ECC Registered Memory
32GB (2 x 16GB) - DDR5 ECC Registered Memory
64GB (2 x 32GB) - DDR5 ECC Registered Memory
128GB (2 x 64GB) - DDR5 ECC Registered Memory
256GB (4 x 64GB) - DDR5 ECC Registered Memory
512GB (8 x 64GB) - DDR5 ECC Registered Memory
768GB (12 x 64GB) - DDR5 ECC Registered Memory
Storage 27 options
✓ 256GB SATA SSD - Endurance: 72 TBW - Generic brand
1TB - Endurance: 600 TBW -- Samsung 990 EVO Plus - M.2 NVMe SSD
2TB - Endurance: 1200 TBW -- Samsung 990 EVO Plus - M.2 NVMe SSD
4TB - Endurance: 2400 TBW -- Samsung 990 EVO Plus - M.2 NVMe SSD
1TB - Endurance: 600 TBW -- Samsung 990 PRO - M.2 NVMe SSD
2TB - Endurance: 1,200 TBW -- Samsung 990 PRO - M.2 NVMe SSD
4TB - Endurance: 2,400 TBW -- Samsung 990 PRO - M.2 NVMe SSD
1TB - Endurance: 600TBW -- Samsung 9100 PRO - M.2 NVMe SSD
2TB - Endurance: 1,200 TBW -- Samsung 9100 PRO - M.2 NVMe SSD
4TB - Endurance: 2,400 TBW -- Samsung 9100 PRO - M.2 NVMe SSD
8TB - Endurance: 4,800 TBW -- Samsung 9100 PRO - M.2 NVMe SSD
2TB - Endurance: 1,200 TBW -- SK hynix Platinum P51 - M.2 NVMe SSD
4TB - Endurance: 2,400 TBW -- WD_BLACK SN850X - M.2 NVMe SSD
8TB - Endurance: 4,800 TBW -- WD_BLACK SN850X - M.2 NVMe SSD
4TB - Endurance: 2,400 TBW -- Samsung 870 EVO - SATA SSD
960GB - Endurance: 1.75 PBW -- Solidigm D3-S4520 - SATA SSD
3.84TB - Endurance: 14.7 PBW -- Solidigm D3-S4520 - SATA SSD
960GB - Endurance: 5.2 PBW -- Solidigm D3-S4620 - SATA SSD
1.92TB - Endurance: 10.5 PBW -- Solidigm D3-S4620 - SATA SSD
3.84TB - Endurance: 21 PBW -- Solidigm D3-S4620 - SATA SSD
8TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
10TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
14TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
18TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
22TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
24TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
26TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
Additional Storage 15 options
✓ None
Vacant 2.5-inch hot-swappable SSD tray
4TB - Endurance: 2,400 TBW -- Samsung 870 EVO - SATA SSD
960GB - Endurance: 1.75 PBW -- Solidigm D3-S4520 - SATA SSD
3.84TB - Endurance: 14.7 PBW -- Solidigm D3-S4520 - SATA SSD
960GB - Endurance: 5.2 PBW -- Solidigm D3-S4620 - SATA SSD
1.92TB - Endurance: 10.5 PBW -- Solidigm D3-S4620 - SATA SSD
3.84TB - Endurance: 21 PBW -- Solidigm D3-S4620 - SATA SSD
8TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
10TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
14TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
18TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
22TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
24TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
26TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
Additional Storage 15 options
✓ None
Vacant 2.5-inch hot-swappable SSD tray
4TB - Endurance: 2,400 TBW -- Samsung 870 EVO - SATA SSD
960GB - Endurance: 1.75 PBW -- Solidigm D3-S4520 - SATA SSD
3.84TB - Endurance: 14.7 PBW -- Solidigm D3-S4520 - SATA SSD
960GB - Endurance: 5.2 PBW -- Solidigm D3-S4620 - SATA SSD
1.92TB - Endurance: 10.5 PBW -- Solidigm D3-S4620 - SATA SSD
3.84TB - Endurance: 21 PBW -- Solidigm D3-S4620 - SATA SSD
8TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
10TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
14TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
18TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
22TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
24TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
26TB - 7200RPM, 6.0GB/s (512e/4Kn) -- SATA HDD
RAID / Storage Controller 3 options
✓ None
Hardware RAID - MegaRAID 9560-8i (4GB Cache)
Hardware RAID - MegaRAID 9560-8i (4GB Cache) + CacheVault Module (protects data cache)
Additional Network Adapter 9 options
✓ None
Network Adapter - 1-port, 1GbE, RJ45, Intel Controller
Network Adapter - 1GbE 2-port RJ45 - Intel Controller
Network Adapter - 1GbE 4-port RJ45 - Intel Controller
Network Adapter - 2-port, 10GbE, SFP+, Intel Controller
Network Adapter - 2-port, 10GbE, RJ45, Intel Controller
Network Adapter - 2-port, 100/50/25/10GbE, QSFP28, Intel Controller
Network Adapter - 2-port, 25GbE, SFP28, Intel Controller
Network Adapter - 4-port, 10GbE, RJ45, Intel Controller
Video Adapter 3 options
✓ No Discrete Graphics Card Selected
Video Card -- NVIDIA - RTX PRO 2000 Blackwell - Output: 4 x mini-DP 2.1b
Video Card -- NVIDIA - RTX PRO 4000 Blackwell SFF - Output: 4 x mini-DP 2.1
Optical Drive 2 options
✓ None
Slim DVD/RW Drive
OS Compatibility 5 options
✓ Windows Server
Linux
VMware vSphere Hypervisor
FreeBSD
Other (Please specify below)
Operating System 20 options
✓ TrueNAS Core 13.0-U5 - QA install, community support
TrueNAS Scale 22 - QA install, community support
OpenMediaVault 6.5 - QA install, community support
Ubuntu Server 20.04 LTS - QA install, community support
Ubuntu Server 22.04 LTS - QA install, community support
Ubuntu Desktop 20.04 LTS - QA install, community support
Ubuntu Desktop 22.04 LTS - QA install, community support
Debian 11 - QA install, community support
Debian 12 - QA install, community support
RHEL 9.2 (Red Hat Enterprise Linux Server) - 60-day Evaluation
Fedora Server 38 - QA install, community support
Rocky Linux 9 - QA install, community support
CentOS Enterprise Linux 7 - QA install, community support
CentOS Stream 8 - QA install, community support
FreeBSD 13 - QA install, community support
vSphere Hypervisor 8 (60-day evaluation) - VMware
Windows Server 2022 Standard , 16-core Base License (w/ DVD, no CALS) -- Microsoft
Windows Server 2025 Standard , 16-core Base License (w/ DVD, no CALS) -- Microsoft
30-day Evaluation Microsoft Windows Server 2022 Standard -- Microsoft
30-day Evaluation Microsoft Windows Server 2025 Standard -- Microsoft
