ASRock

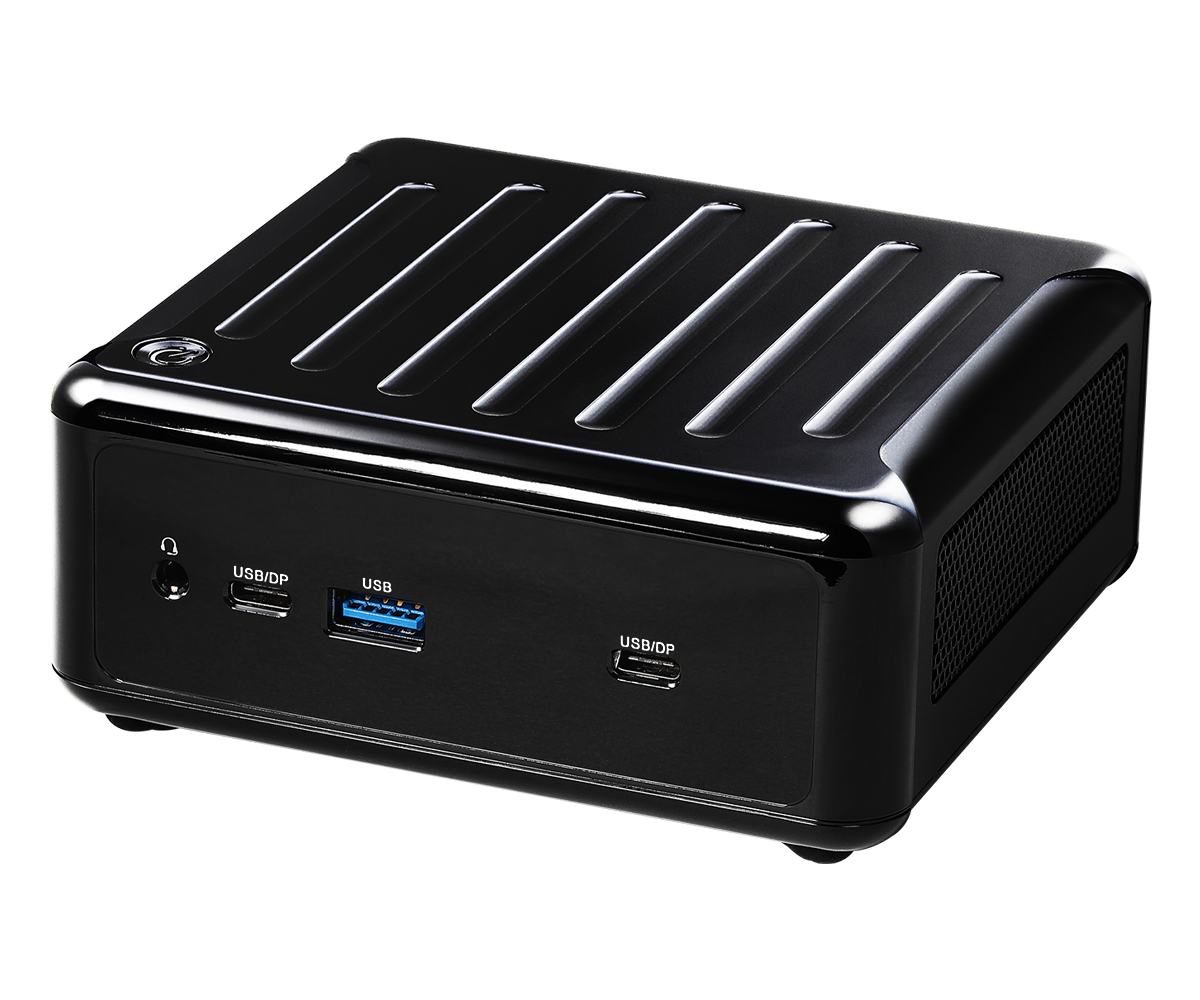

4X4 BOX-7535U/D5

Model7535U/D5MPN4X4 BOX-7535U/D5
ProcessorAMD Ryzen 7000U-Series
Memory64 GB DDR5-4800
Storage6.0 GB SSD PCIe 4.0
GraphicsAMD Radeon Graphics
Weight2.2 lb

Specifications 33 normalized

Processor
Processor
AMD Ryzen 7000U-Series
4X4 BOX-7535U/D5 (AMD Ryzen 5 7535U, 6Cores, Max Speed up to 4.55 GHz)
Chipset
SoC
Memory & storage
Memory
Technology: Dual Channel DDR5 4800 MHz
Capacity: 64 GB (32 GB per DIMM)
Socket: 2 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Storage Temp
40° C ~ 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
AMD Radeon Graphics
Display
Display Outputs
HDMI: HDMI 2.1
Max resolution up to 7680 x 4320@60 Hz
DisplayPort: DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60 Hz
MultiDisplay: Max 4 display (Included 2 outputs from Type-C)
Rear I/O DisplayPort
1 x DP 1.4a
Connectivity
Networking
Controller/ Speed: LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111EPV with 10/100/1000 Mbps,support DASH function
Connector: 2 x RJ-45
Rear I/O Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
Wireless
1 x Wi-Fi 6E 802.11ax + BT 5.2
Front I/O USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB4 (Supports DP1.4a display output)
Rear I/O HDMI
1 x HDMI 2.1
Rear I/O USB
2 x USB 2.0
Camera & audio
Audio
Interface: Realtek ALC233/ALC256, High Definition Audio.
Front I/O Audio
1 (headphone & microphone jack)
Power & battery
Power
Input PWR: 12V~19V DC-In Jack
Power On: AT/ATX supported
AT: Direct PWR on as power input ready
ATX:Press button to PWR on after power input ready
Physical & build
Weight
Net Weight: 1 kg
Form Factor Dimensions
117.5 x 110.0 x 47.85 mm
Dimensions
117.5 x 110.0 x 47.85 mm(4.63" x 4.33" x 1.88")
Form Factor
4X4 BOX (4"×4" NUC-class)
Operating system & software
Others OS Support
Windows 10/11
Security
Others TPM
TPM 2.0 onboard IC
Other
BIOS
AMI SPI 256 Mbit
Rear I/O DC Jack
1
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments 0,1,2....255sec
Operating Temp
0ºC ~ 40ºC
Operating Humidity
5% ~ 90%
Mechanical Mounting
VESA mount
Others Certifications
CE, FCC
Others Packing List
19V/90W Power Adapter (R5 7535U)
1 x VESA mount bracket

I/O Ports 9

  • 2x RJ-45
  • 1x USB 3.2 Gen2 (Type-A)
  • 2x USB4 (Supports DP1.4a display output)
  • 1x Audio (headphone & microphone jack)
  • 1x HDMI 2.1
  • 1x DP 1.4a
  • 1x 1 Gigabit LAN
  • 1x 2.5 Gigabit LAN
  • 2x USB 2.0
