ASRock

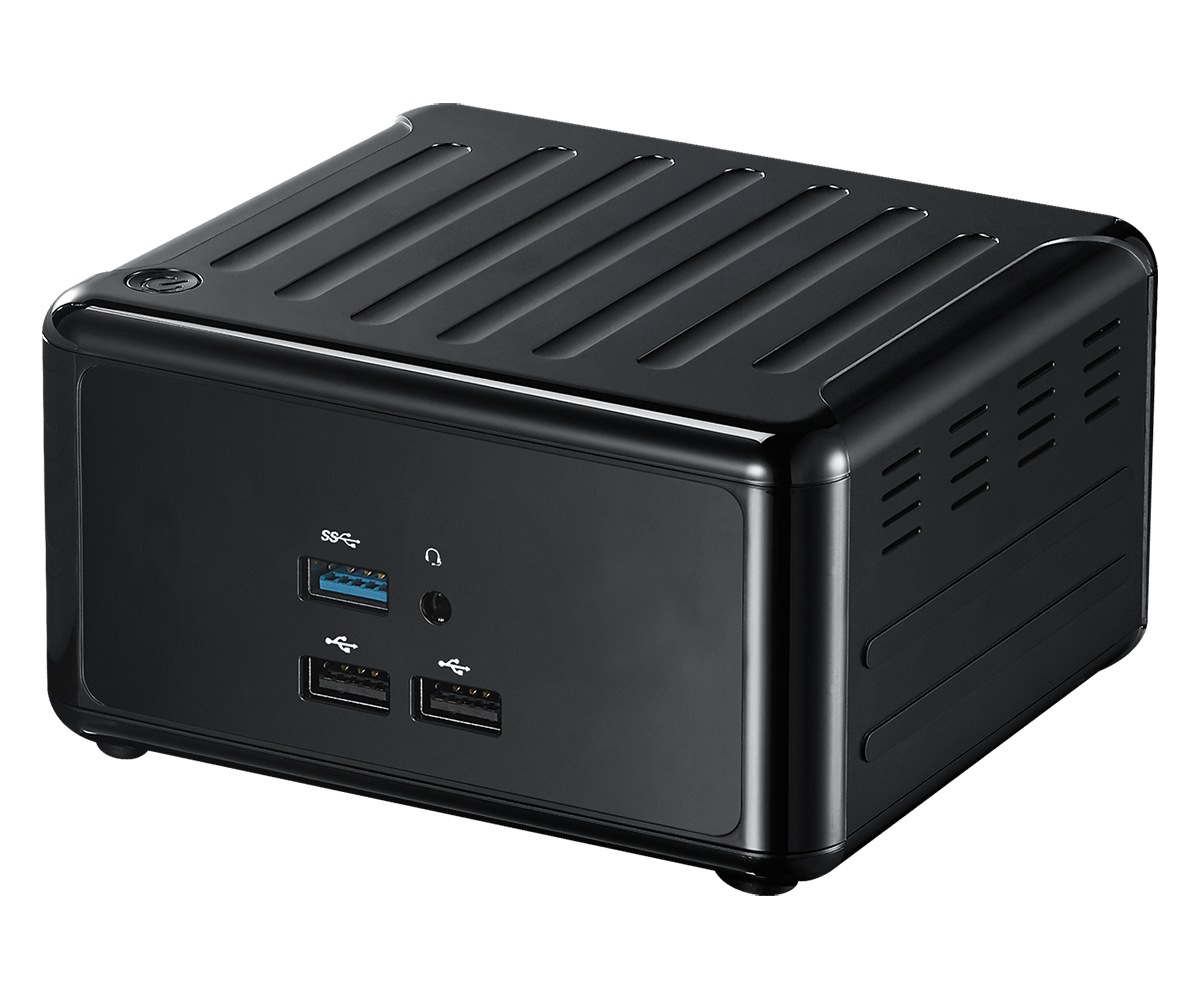

4X4 BOX-R1000V

ModelR1000VMPN4X4 BOX-R1000V
ProcessorAMD Ryzen Embedded R-Series
Memory32 GB DDR4-2400
Storage6 GB SSD SATA III
GraphicsAMD Radeon Vega 3
Weight2.2 lb

Specifications 32 normalized

Processor
Processor
AMD Ryzen Embedded R-Series (R1505G, DC, 2.4 GHz, 12-25W)
Chipset
SoC
Memory & storage
Memory
Technology: Dual Channel DDR4 2400 MHz
Capacity: 32 GB (16 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260) with PCIe x4 and SATA3 for SSD
*Not support M.2 Key M 2280
SATA: 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
Storage Temp
40° C ~ 85° C
Storage Humidity
10% ~ 90%
Graphics
Graphics
AMD Radeon Vega 3 Graphics
Display
Display Outputs
HDMI: HDMI 2.0a
Max resolution up to 4096x2160@60 Hz
DisplayPort: DisplayPort 1.2a
Max resolution up to 3840x2160@60 Hz
MultiDisplay: Triple Display
Rear I/O DisplayPort
2 x DP 1.2a
Connectivity
Networking
Controller/ Speed: 2 x Realtek RTL8111G with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 1 Gigabit LAN
Wireless
1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
Front I/O USB
1 x USB 3.2 (Gen2) + 2 x USB 2.0
Rear I/O HDMI
1 x HDMI 2.0a
Rear I/O USB
2 x USB 3.2(Gen2)
Camera & audio
Audio
Interface: Realtek ALC233, High Definition Audio, Line-out, Mic-in
Front I/O Audio
1 (Mic-in or Line-out)
Power & battery
Power
Input PWR: 1 x 12V/96W Power Adapter
Power On: AT/ATX supported
AT: Direct PWR on as power input ready
ATX:Press button to PWR on after power input ready
Physical & build
Weight
Net Weight: 1 kg
Dimensions
110.0 x 118.5 x 67.3 mm
Form Factor
4X4 BOX (4"×4" NUC-class)
Operating system & software
Others OS Support
Windows 10
Other
BIOS
AMI SPI 64 Mbit
Rear I/O DC Jack
1
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments 0,1,2....255sec
Operating Temp
0ºC ~ 40ºC
Operating Humidity
10% ~ 90%
Mechanical Construction
Plastic
Mechanical Mounting
VESA mounting
Others Certifications
CE, FCC Class A
Others Packing List
1 x 12V/96W Power Adapter & Power cord
1 x Screw Package
1 x Product DVD
1 x VESA mounting bracket
1 x Heatsink for M.2 Key M

I/O Ports 10

  • Line-out
  • Mic-in
  • 2x RJ-45
  • 1x USB 3.2 (Gen2)
  • 2x USB 2.0
  • 1x Audio (Mic-in or Line-out)
  • 1x HDMI 2.0a
  • 2x DP 1.2a
  • 2x 1 Gigabit LAN
  • 2x USB 3.2(Gen2)
