Catalog›Mini PCs›ASRock
ASRock

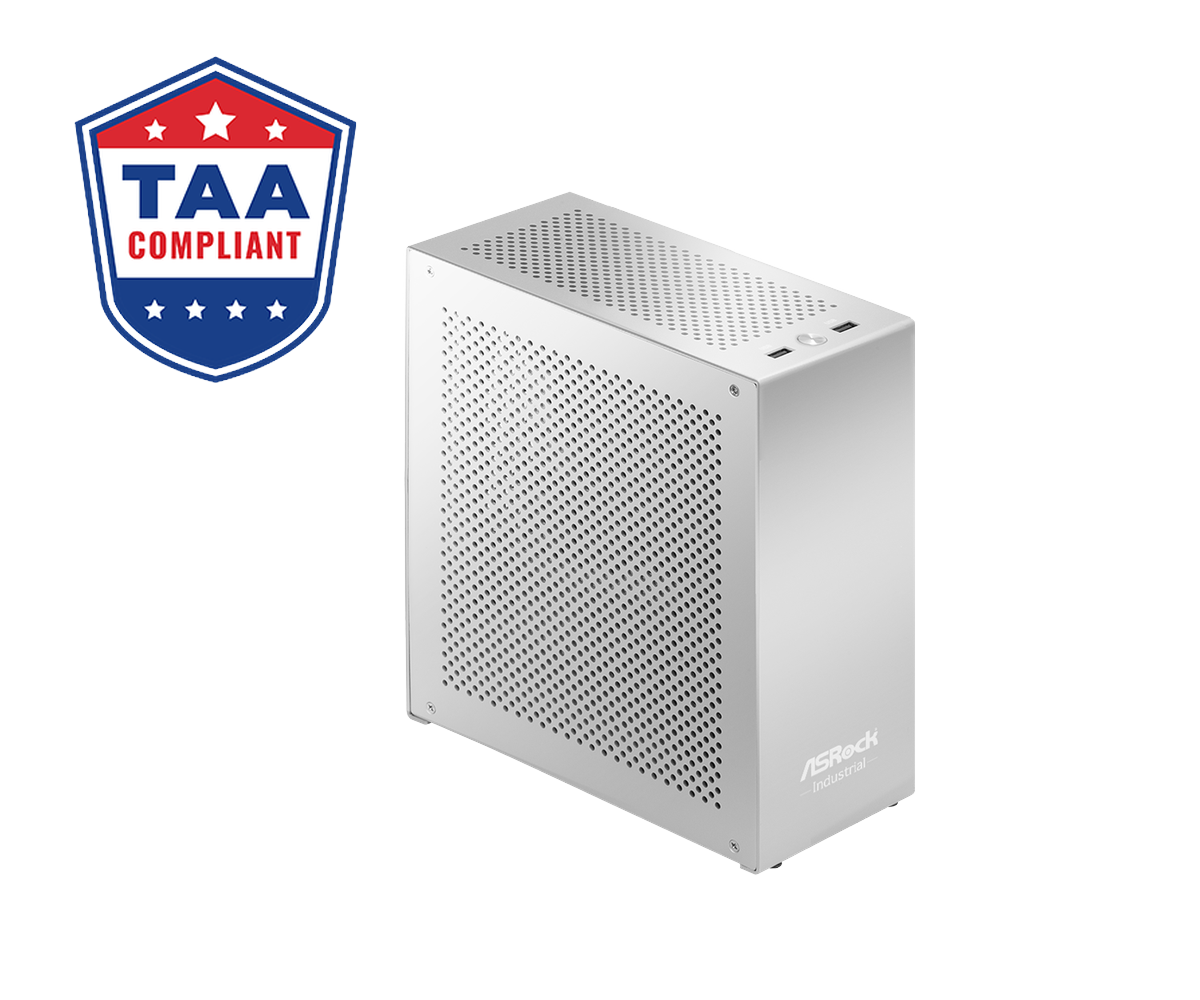

AI BOX-A395

SKUA395MPNAI BOX-A395
ProcessorAMD Ryzen AI Max 300 Series
Memory128 GB LPDDR5X
GraphicsAMD Radeon 8060S
NPU50 TOPS
Weight6.2 lb

Specifications 29 normalized

Processor
Processor
AMD Ryzen AI Max 300 Series
(AMD Ryzen AI Max+395, 16C, Boost up to 5.1 GHz)
Memory & storage
Memory
Technology: Onboard LPDDR5X, up to 8000 MT/s
Capacity: AI BOX-A395/128G
AI BOX-A395/64G
Storage
M.2: 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2280) with PCIe Gen4 x4 for SSD
RAID: Supports RAID 0/1
Storage Temp
40° C ~85° C
Storage Humidity
5% ~ 90% (non-condensing)
Graphics
Graphics
AMD Radeon 8060S Graphics
Display
Display Outputs
HDMI: HDMI 2.1
Max resolution up to 7680x4320@60 Hz
DisplayPort: DisplayPort 2.1
MultiDisplay: Quad display (included 3 outputs from Type-C)
Connectivity
Networking
Controller/ Speed: LAN1: Marvell AQC113 with 10/100/1000/2500/5000/10000 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
1 x 10 Gigabit LAN
1 x 2.5 Gigabit LAN
Wireless
1 x Wi-Fi 7 802.11be+ BT 5.4
Rear I/O HDMI
2 x HDMI 2.1
Rear I/O USB
2 x USB4 (5V/3A, supports DP 2.1 output)
1 x USB 3.2 Gen2 (Type C ,5V/3A, supports DP 2.1 output)
2 x USB 3.2 Gen2
Top I/O USB
2 x USB2.0
Camera & audio
Audio
Interface: Realtek ALC897, High Definition Audio
Rear I/O Audio
2 (Mic-In/Line-Out)
Power & battery
Power
Input PWR: AC INPUT (100-240V, 60-50 Hz, 400W)
Power On: AT/ATX Supported
AT : Directly PWR on as po wer input ready
ATX : Press button to PWR on after po wer input ready
Physical & build
Weight
Net Weight: 2.8KG
Dimensions
200 x 100 x 232 mm (7.87" x 3.94" x 9.13")
Form Factor
AI BOX (edge AI system)
Operating system & software
Others OS Support
Windows 11
Security
Others TPM
TPM 2.0 onboard IC
Other
BIOS
2 x AMI SPI 256 Mbit*
*This motherboard has two BIOS chips, a primary BIOS (BIOS1) and a redundant BIOS
(BIOS2), which enhances the safety and stability of your system. Normally, the system
will work on the primary BIOS (BIOS1). However, if the primary BIOS is corrupted or
damaged, the system will recover from redundant BIOS (BIOS2) to primary BIOS
BIOS1). When the system fails to recover, the redundant BIOS (BIOS2) will take over
on the next system boot with warning message. For safety issues, users are not able
to update the redundant BIOS (BIOS2) manually.
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
0ºC ~ 40ºC
Operating Humidity
5% ~ 90% (non-condensing)
Mechanical Construction
Aluminum housing
Others Certifications
CE, FCC
Others Packing List
1 x Power cord, 1 x Handle Kit, 2 x Antenna, 1 x M.2 NUT, 1 x QIG
1 x M.2 Heatsink Module, 1 x M.2 Thermal Pad, 2 x M.2 Screw

I/O Ports 9

  • 2x RJ-45
  • 2x HDMI 2.1
  • 1x 10 Gigabit LAN
  • 1x 2.5 Gigabit LAN
  • 2x USB4 (5V/3A, supports DP 2.1 output)
  • 1x USB 3.2 Gen2 (Type C ,5V/3A, supports DP 2.1 output)
  • 2x USB 3.2 Gen2
  • 2x Audio (Mic-In/Line-Out)
  • 2x USB2.0
