Catalog›Mini PCs›ASRock
ASRock

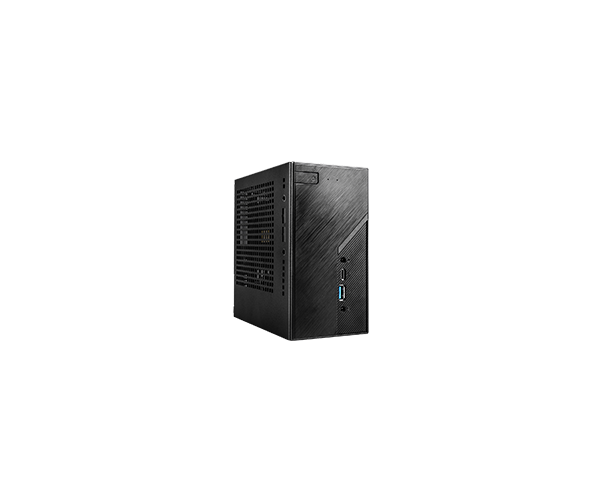

DeskMini B760

SKUDeskMini B760
ProcessorSupports 14th
Memory64 GB DDR4-3200
Storage6 GB HDD PCIe 5.0
GraphicsHDMI
OSWindows 10

Specifications 15 normalized

Processor
Processor
Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700), Max. TDP 65W
Chipset
Intel B760
Memory & storage
Memory
Supports 2 x SO-DIMM DDR4-3200 MHz, Max. 64 GB (non-ECC)
Storage
2 x SATA3 6Gb 2.5-inch 7 mm/9.5 mm Hard Drive (RAID 0/1) *
1 x Blazing M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode * *
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode * *
Graphics
Graphics
HDMI (4K@60 Hz)
DisplayPort 1.4 (over USB Type-C Alt Mode)
D-Sub
Connectivity
Networking
2.5 Gigabit LAN (Dragon RTL8125BG)
Wireless
1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
Camera & audio
Audio
Realtek ALC269 Audio Codec
Physical & build
Dimension
155 x 155 x 80 mm (1.92L)
Form Factor
STX barebones (1.9 L)
Cooling
Supports Intel CPU Cooler (Max. Height ≦ 47 mm)
Operating system & software
Operating System
Microsoft Windows 10 64-bit / 11 64-bit
Other
Front I/O
1 x MIC-In
1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
1 x Head Phone with MIC Jack
Rear I/O
1 x DC-In Jack (Compatible with the 19V power adapter)
1 x D-Sub Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
2 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED
Accessory
2 x SATA Data with Power Cable
1 x 120W/19V adapter
1 x Screws Pack

I/O Ports 13

  • 2.5 Gigabit LAN (Dragon RTL8125BG)
  • 1x MIC-In
  • 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (Supports ESD Protection)
  • 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
  • 1x Head Phone with MIC Jack
  • 1x DC-In Jack (Compatible with the 19V power adapter)
  • 1x D-Sub Port
  • 1x HDMI Port
  • 1x DisplayPort 1.4
  • 1x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports USB Type-C Alt Mode)
  • 2x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
  • 2x USB 2.0 Ports (Supports ESD Protection)
  • 1x RJ-45 LAN Port with LED
