ASRock

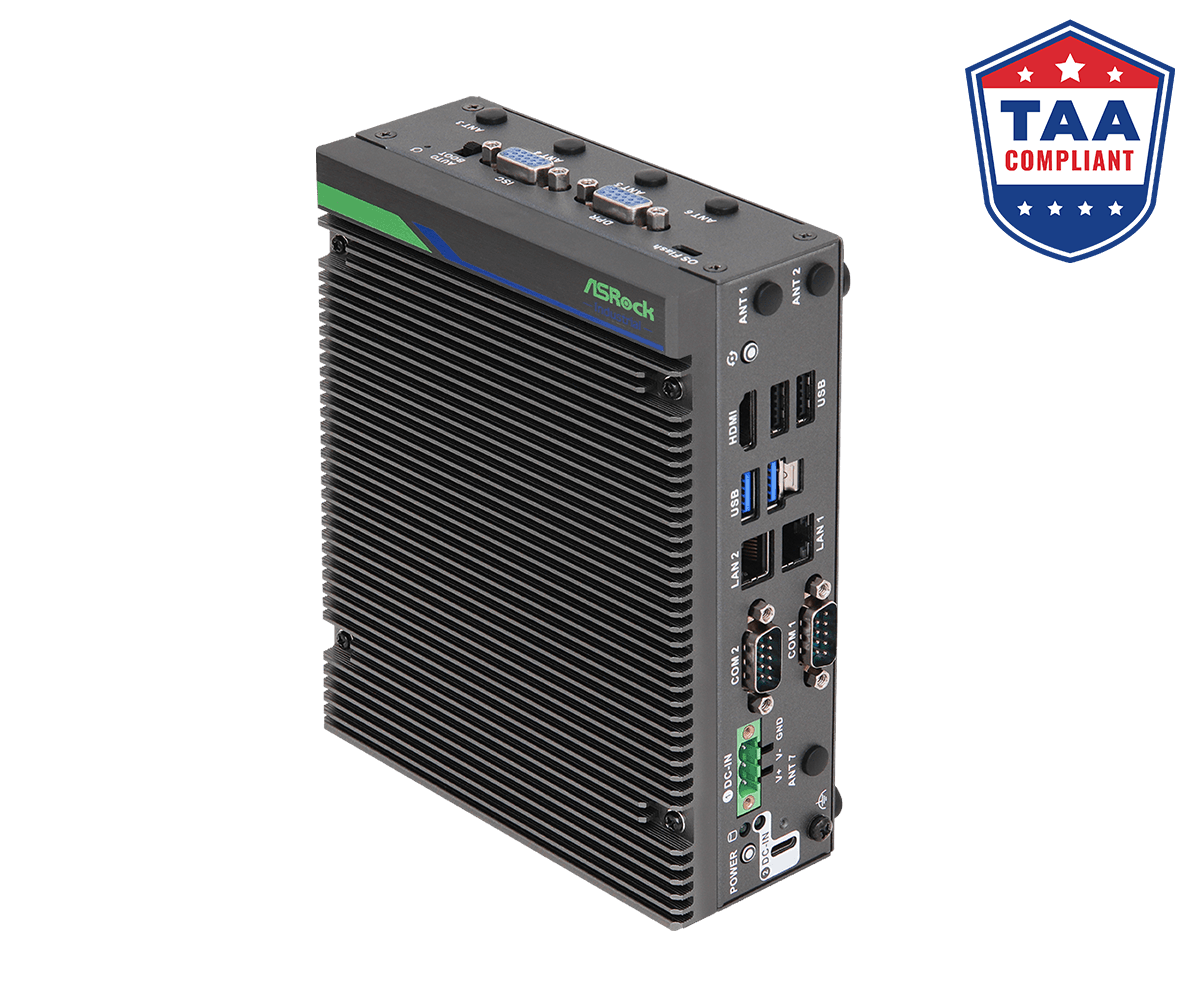

iEP-6010E Series

Model6010E
Memory16 GB LPDDR5
Storage16 GB NVMe PCIe 4.0
Weight2.9 lb

Specifications 28 normalized

Memory & storage
Memory
16 GB 128-bit LPDDR5 (Jetson Orin NX 16 GB)
Storage
M.2: For Orin NX 16 GB/8 GB SOM without Super Mode (JetPack 5.1.2)
1 x M.2 (Key M, 2280) for wide temperature PCIe Gen3 x 4
NVMe SSD module (System Operating temperature -25° C~60° C)
1 x M.2 (Key M, 2280)for wide temperature PCIe Gen4 x 4
NVMe SSD module (System Operating temperature -25° C~55° C)
PCIe Gen4 x 4 SSD only supported by Orin NX SOM
Micro SD Card slot: 1 x Micro SD Card Slot (UHS-I/SDR-50)
Storage Temp
40°C~85°C ( -40°F~185°F)
Connectivity
I/O Ethernet
2x 1G LAN (LAN1 from SOM, LAN2 from Intel I210AT)
Wireless
up to 4 x 5G/4G LTE antenna + 2 x Wi-Fi antenna for 5G SKU
I/O Serial Port
1 x RS-232, 1 x RS-232/422/485
(Pin9 default is N/A, +5V or +12V/1A software programmable)
I/O USB
2 x USB 3.2 Gen 2x1 (one with Locking)
2 x USB 2.0, 1 x Micro USB 2.0 (Device mode only, for OS Flash)
Add-on Feature / OS Support 2nd DC IN Interface
PD3.0 20V USB Type-C power adaptor interface (Locking feature),
It can be backup DC input when 1st DC IN is 21V~36V
Expansion SIM
1 x Nano SIM Card slot
Power & battery
Power
DC Input: 1st DC IN source:
12V~36V DC input, 80V Surge Protection. OVP, UVP, OCP,
Reverse Protection, Phoenix type connector
2nd DC IN source:
PD3.0 20V USB Type-C power adaptor interface (Locking feature),
It can be backup DC input when 1st DC IN is 21V~36V
AC to DC Adaptor (Option): For Basic SKU:
120W Adapter, AC input 100-240Vac,
1.8A 50-60 Hz, DC output 19V, 6.32A
For POE/5G SKU:
330W Adapter, AC input 100-240Vac,
4.2A 50-60 Hz, DC output 24V, 13.75A
Physical & build
Weight
Basic SKU: 1.3 kg, 5G/POE SKU: 1.6 kg
Dimensions
Basic SKU : 55(W) x 170(H) x 134(D) mm
POE/5G SKU : 68(W) x 170(H) x 134(D) mm
Form Factor
iEP (industrial edge)
Operating system & software
Add-on Feature / OS Support OS Support
NVIDIA JetPack 5.1.2
Security
TPM
TPM2.0
Other
System on Module
NVIDIA Jetson Orin NX SOM 16 GB support
(Basic SKU iEP-6010E-000, PoE SKU iEP-6010E-001,
5G SKU iEP-6010E-003)
Video
1 x HDMI 2.0 (Orin NX)
I/O PoE (Option)
2x Intel I210AT ports, each port supports IEEE 802.3AF PoE
(Orin NX SOM 16 GB PoE SKU iEP-6010E-001)
I/O Proprietary IO
(DPR connector is proprietary design of DIO, Power/GND, Remote Power Button signals and power/GND pins)
DPR connector: 1 x DB15 for 4*DI, 4*DO, GND, Power Pin(Default is N/A, +5V/1A software programmable), PowerOn, LED+, LED-, GND, Reset
(ISC connector is proprietary design of I2C, SPI, CANBUS Interface and Power/GND Pins.)
ISC connector: 1xDB15 for Power Pin(Default is N/A, +3V/1A software programmable) , 5 x GND, 1 x I2C, 1 x SPI, 1 x CANBUS
Operating Temp
For Orin NX 16 GB/8 GB SOM without Super Mode (JetPack 5.1.2)
25~60° C (-13~140°F) for Basic sku, PoE sku, or 5G sku w/ 4G LTE Module when installed with WT SSD Gen3 x 4
25~55° C (-13~131°F) for Basic sku, PoE sku, or 5G sku w/ 4G LTE Module when installed with WT SSD Gen4 x 4
25~55° C (-13~131°F) for 5G sku w/ 5G Module when installed with WT SSD Gen4 x 4 or WT SSD Gen3 x 4
(w/ air flow 0.5~0.8m/s)
Humidity
~90% @ 45°C (non-condensing)
EMC
CE, FCC Class A (EN61000-6-4/-2)
Safety
LVD
Shock
IEC 60068-2-27, Operating Shock 100G with 11 ms duration, half sine wave
Vibration
IEC 60068-2-64, Operating Random Vibration 5 Grms, 5-500 Hz, 3 axes, 30 min/axis
Mechanical Indicator
1 x Storage LED
1 x DC-IN LED
Mechanical Function
Power on button with LED, OS Flash Button, Reset Tact Switch
Enable/Disable Auto power on Switch
Mechanical Mounting (Option)
Horizontal Wall mounting or VESA mounting bracket (Basic SKU only)
Vertical Wall mounting or Din Rail mounting bracket (All SKU)

I/O Ports 6

  • 2x 1G LAN (LAN1 from SOM, LAN2 from Intel I210AT)
  • 1x RS-232
  • 1x RS-232/422/485
  • 2x USB 3.2 Gen 2x1 (one with Locking)
  • 2x USB 2.0
  • 1x Micro USB 2.0 (Device mode only, for OS Flash)
