ASRock

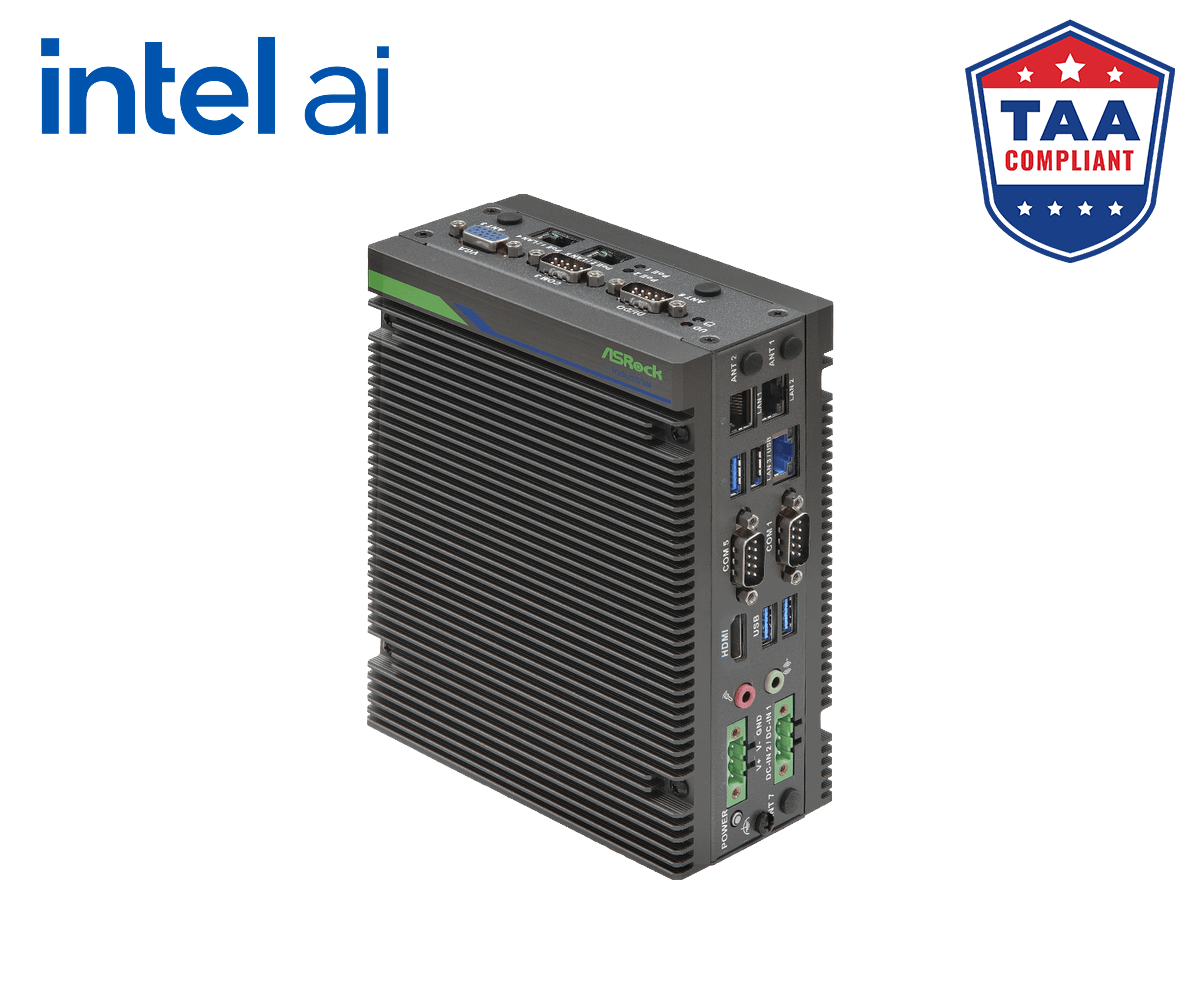

iEP-7031E Series

Model7031E
ProcessorIntel Core Ultra 125H
Memory64 GB DDR5-5600
GraphicsIntel Arc Graphics
Weight0.01 lb

Specifications 46 normalized

Processor
Processor
Intel Core Ultra processors 125H, 4P+8E, 28W
Chipset
MCP
Memory & storage
Memory
Technology: Dual Channel DDR5 5600 MHz
Capacity: Up to 64 GB
Socket: 2 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 2280 Key M (PCIe Gen4 x4)
Storage Humidity
40°C ~ 85°C (-40°F~185°F)
Graphics
Graphics
Intel Arc graphics
Display
Display Outputs
HDMI: HDMI 2.0b
Max resolution up to 4096x2160@60 Hz
VGA: Max resolution up to 1920x1200@60 Hz
Connectivity
Networking
Controller/ Speed: LAN1/LAN2/LAN3 : Intel I226IT with 10/100/1000/2500 Mbps
LAN4/LAN5: Intel I210AT with 10/100/1000 Mbps (For 5LAN SKU)
PoE1/PoE2: Intel I210AT. PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE. (For PoE SKU)
Connector: RJ45
Front I/O Ethernet
3 x 2.5G LAN
Top I/O Ethernet
2 x 1G LAN for 5LAN SKU only
Wireless
1 x M.2 3042/3052 Key B (PCIe Gen3x1/USB3.2 mode)
Support 4G LTE/5G module
1 x M.2 2230/2260 Key E (CNVi/PCIe Gen3x1/USB2.0 mode)
Support Wifi/BT module
Expansion RF& Antenna
7 x SMA connector hole reserved, support for Basic/5G SKU
5 x SMA connector hole reserved, support for PoE/5LAN/8DIO SKU
Front I/O HDMI
1 x HDMI 2.0b
Front I/O USB
3 x USB 3.2 Gen2x1
1 x USB 2.0
Rear I/O SIM Card
1 x Nano SIM Card slot
Camera & audio
Audio
Interface: Realtek ALC897, High Definition Audio
Front I/O Audio
1 x Mic-in
1 x Line-out
Power & battery
Front I/O Power Button
1 (with LED)
Power
DC Input: For Basic/5LAN/5G/8DIO SKU : DC 9V to 36V, Redundant Power Input
For PoE SKU : DC 19V to 36V, Redundant Power Input
OVP, UVP, OCP, plus 80V surge protection
AC to DC Adaptor (Option): Adapter 120W for Basic/5LAN/5G SKU
AC input 100-240Vac, 1.8A 50-60 Hz, DC output 19V, 6.32A,
Adapter 330W for PoE SKU only
AC input 100-240Vac, 4.2A 50-60 Hz, DC output 24V, 13.75A
Power Interface: 3-pin Terminal Block : V+, V-, Frame Ground
Physical & build
Dimensions
For Basic/8DIO SKU : 55 x 170 x 134 mm
For PoE/5LAN/5G SKU : 68 x 170 x 134 mm
Form Factor
iEP (industrial edge)
Operating system & software
Others OS Support
Windows 11 / Linux
Security
Manageability / Security Manageability
Intel In-Band Manageability
Manageability / Security
TPM2.0
Other
BIOS
AMI SPI 256 Mbit
Front I/O COM
2 x RS-232/422/485
Front I/O LED
2 x Diagnostic LED
2 x DC-IN LED
Front I/O DC-IN
2 x 3-pin Phoenix type
Rear I/O Micro SD Card
1 x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50)
Top I/O COM
1 x RS-232/422/485
Top I/O PoE
2 x 1G LAN, support IEEE 802.3AF for PoE SKU only
Top I/O LED
2 x PoE LED for PoE SKU only
Top I/O Digital I/O
4DIs/4DOs for all SKU (15-pin D-sub connector)
8DIs/8DOs with sink/source isolation 36V for 8DIO SKU only (2x10-pin connector)
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
25°C~50°C (-13°F~122°F)
(with airflow 0.5~0.8m/s)
Humidity
~95% @ 40°C (non-condensing)
Mechanical Construction
Aluminum
Mechanical Mounting (Option)
For Basic/8DIO SKU : DIN-Rail, Wall Mount, VESA Mount
For PoE/5LAN/5G SKU: Wall mount, Din Rail
Standards and Certifications Safety
EN 62368-1 (LVD)
Standards and Certifications EMC
EN 61000-6-2/-6-4 (CE)
FCC Part 15B Class A
Standards and Certifications EMS
IEC 61000-4-2, ESD protection Level 4 : Contact +/-8 KV, Air +/-15
Standards and Certifications Shock
IEC 60068-2-27, Operating 100 G, half sine 11 ms duration with SSD
Standards and Certifications Vibration
IEC 60068-2-64, Operating: 5 Grms, 5-500 Hz, 3 axes with SSD
Others Packing List
3 x M2*2 Screw Package
2 x 3-pin phoenix connector
1 x System QIG
Others Optional Items
(1) 19V/120W Power Adapter for Basic/5LAN/5G/8DIO SKU
(2) 24V/330W Power Adapter for PoE SKU
(3) WIFI Kits (include WIFI Module, Antenna and SMA Cable)
(4) 4G Kits (include 4G Module, Antenna and SMA Cable)
(5) 5G Kits (include 5G Module, Antenna and SMA Cable)
(6) DIN Rail Kit
(7) Wall Mount Kit
(8) VESA Mount Kit

I/O Ports 16

  • RJ45
  • 1x Mic-in
  • 1x Line-out
  • 2x RS-232/422/485
  • 3x 2.5G LAN
  • 1x HDMI 2.0b
  • 3x USB 3.2 Gen2x1
  • 1x USB 2.0
  • 2x DC-IN LED
  • 1x SIM Card x Nano SIM Card slot
  • 1x Micro SD card slot (Support SD specification v3.0 UHS-I: SDR25/SDR50)
  • 1x RS-232/422/485
  • 2x 1G LAN for 5LAN SKU only
  • 2x 1G LAN
  • 2x LED x PoE LED for PoE SKU only
  • 4DIs/4DOs for all SKU (15-pin D-sub connector)
