ASRock

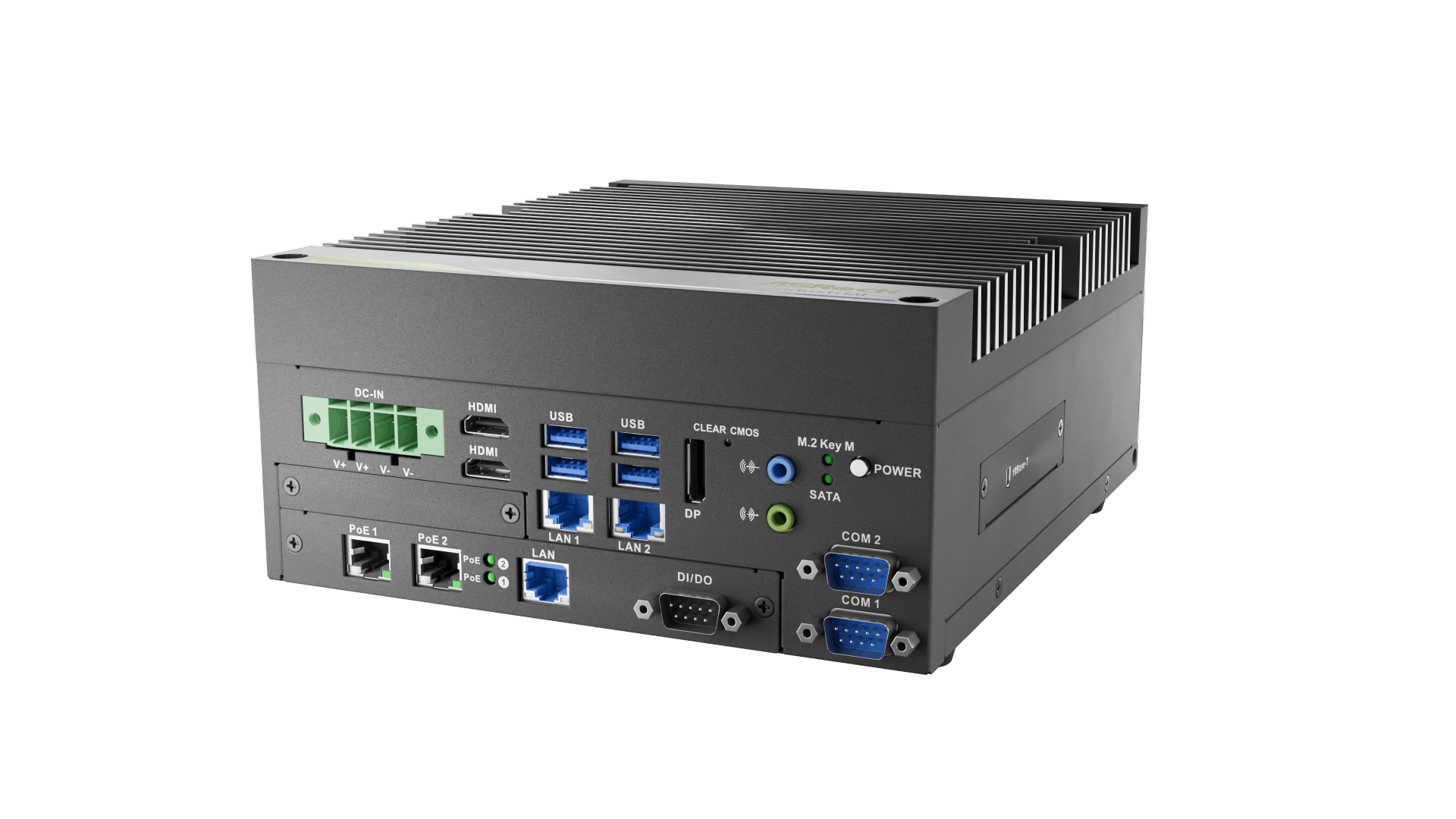

iEP-9040VE

Model9040VEMPNiEP-9040VE
ProcessorIntel Core
Memory96 GB DDR5-5600 ECC
Storage6 GB NVMe
GraphicsIntel UHD Graphics
Weight13.2 lb

Specifications 35

Processor
Processor
Intel Core Processors (Series 2)
Chipset
Intel R680E
Memory & storage
Memory
Technology: Dual Channel DDR5 5600 MHz
(ECC memory supported by R680E + Selected CPU)
Capacity: 96 GB (48 GB per DIMM)
Socket: 2 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280/22110/25110) with
Gen4 x4 for NVMe SSD
SATA: 2 x SATA3 (6Gb/s), R680E: support RAID 0/1
CFast: 1 x Type II socket (Shared with SATA3)
Storage Temperature
40 °C~85 °C ( -40 °F~185 °F)
Graphics
Graphics
Intel UHD Graphics
Display
Display Outputs
DisplayPort: DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60 Hz
HDMI: HDMI 2.0b
Front I/O DisplayPort
1
Connectivity
Networking
Controller/ Speed: 1 x Intel i219LM (vPro Support)
1 x Intel i210IT
Connector: 2 x RJ45
Front I/O Ethernet
2 x Intel 1G LAN
Front I/O HDMI
2
Front I/O USB
4 x USB 3.2 Gen2x1, 2 x Internal USB 3.2 Gen2x1 (Optional)
Camera & audio
Audio
Interface: Realtek ALC897, High Definition Audio.
Front I/O Audio
1 x Line-in, 1 x Line-out
Power & battery
Power
Input PWR: 9V~36V DC
OVP, UVP, OCP and reverse protection for MB Power Input.
Ignition Power Input w/ 13-mode condition.
Physical & build
Weight
6 kg
Dimensions
200 mm (W) x 230 mm (D) x 93 mm (H) (7.87" x 9.06" x 3.66")
Form Factor
iEP (industrial edge)
Operating system & software
Others OS Support
Windows 11 & Windows 10 & Linux
Security
Others TPM
TPM 2.0
More details
Socket
LGA 1700
Front I/O COM
2 x RS232/422/485
Front I/O DIO
4DIs/4DOs
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temperature
45 W CPU: - 40 °C ~ 55 °C (-40 °F ~ 131 °F)
65 W CPU: - 40 °C ~ 50 °C (-40 °F ~ 122 °F)
(w/ air flow 0.5~0.8 m/s)
Operating Humidity
~95% @ 40 °C (non-condensing)
Shock
MIL-STD-810H, Method 516.8, Procedure I
Vibration
MIL-STD-810H, Method 514.8
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical Construction
Aluminum heatsink + Metal chassis
Mechanical Mounting
Desk Mount
Others Real-Time Enablement
TSN, TCC support under YOCTO

I/O Ports 9

  • 2x RJ45
  • 1x DisplayPort
  • 2x HDMI
  • 2x Intel 1G LAN
  • 4x USB 3.2 Gen2x1
  • 2x Internal USB 3.2 Gen2x1 (Optional)
  • 1x Line-in
  • 1x Line-out
  • 2x RS232/422/485
