Catalog›Mini PCs›ASRock
ASRock

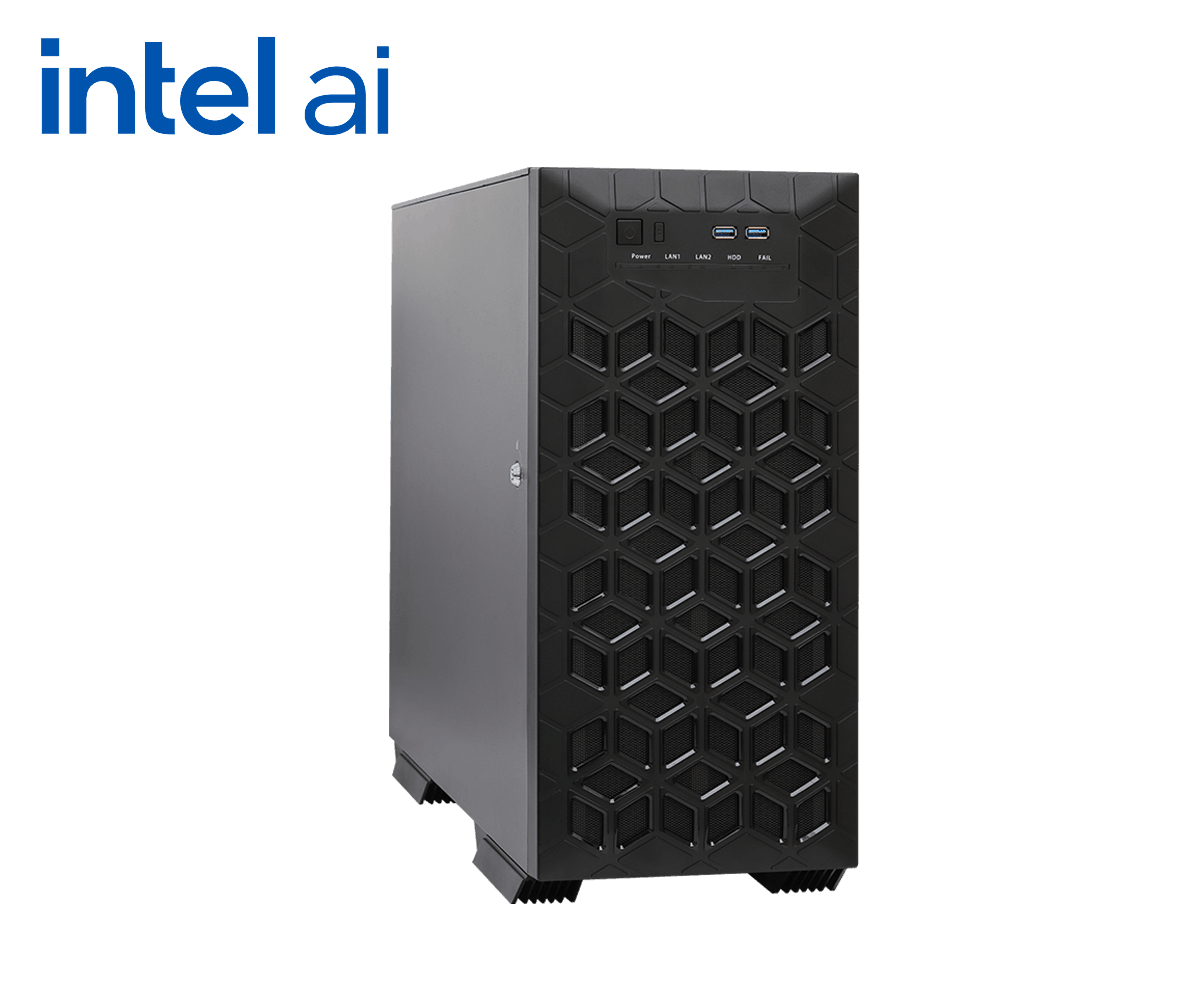

iEPF-10000S Series

Model10000S
ProcessorIntel Core Series 2
Memory192 GB DDR5-5600 ECC

Specifications 33 normalized

Processor
Processor
Intel Core Processor Series 2 (Bartlett Lake-S) or Intel 14th/13th Core Processor, up to 125W.
CPU Graphics Controller
Intel UHD Graphics
CPU Graphics HDMI
HDMI 2.0b
Max resolution up to 4096x2160@60 Hz
CPU Graphics DisplayPort
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60 Hz
CPU Graphics VGA
Max resolution up to 1920 x 1200@60 Hz
CPU Graphics MultiDisplay
Triple Display
Chipset
Intel Q670 or Intel W680 (Option)
Memory & storage
Memory
Technology: Dual Channel DDR5 4400/5600 MHz*
*Actual memory frequency depends on the CPU types and DRAM modules, for more information refer to technical FAQ
*For DDR5 5600 support refer to memory support list
ECC feature only supported by W680
Capacity: 192 GB (48 GB per DIMM)
Socket: 4 x 288-pin Long-DIMM
Storage
M.2: 1 x M.2 2280 (Key M) PCIe Gen4 x4 SSD or 1 x M.2 2280 (Key M) PCIe Gen4 x4 SSD and 1 x M.2 2280 (Key M) PCIe Gen3 x4 SSD (Option)
SATA: 2.5"/3.5" HDD bays x 5
RAID: Intel VMD RAID 0/1/5/10
**supported by identical interface (PCIe or SATA)
PCIe interface: M.2 Key B + M.2 Key M x1 or x2(Option)
SATA interface: SATA port
Display
MB Rear I/O DisplayPort
1 x DP 1.4a++
Connectivity
MB Rear I/O Ethernet
3 x 2.5 Gigabit LAN
Networking
Controller/ Speed: LAN1: Intel I226V with 10/100/1000/2500 Mbps, supports PoE (IEEE 802.3at).
LAN2: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN3: Intel I226V with 10/100/1000/2500 Mbps
Connector: 3 x RJ-45
Expansion PCIe
2 x PCIe Gen5 Slots (PCIE1/PCIE4:single at x16(PCIE1)
dual at x8 (PCIE1) / x8 (PCIE4))
2 x PCIe x4 (Gen4), 3 x PCIe x1 (Gen3)
Expansion M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x1, USB3.2 Gen1, USB 2.0
and SIM for 4G/5G
Expansion SIM Socket
1 x SIM socket connected to M.2 Key B
MB Rear I/O HDMI
1 x HDMI 2.0b
MB Rear I/O USB
5 x USB 3.2 Gen2
1 x USB 3.2 Gen2x2 (Type-C, 5V/3A)
MB Internal Connector USB
2 x USB 3.2 Gen1 (Chassis front side), 2 x USB 2.0 Type-A (internal vertical connector), 2 x USB 2.0 (1 x 2.54 pitch header)
MB Internal Connector COM
COM3, COM4, COM5, COM6 (RS-232)
MB Internal Connector Parallel
1
MB Internal Connector GPIO
8 x GPI, 8 x GPO (shared with LPT header)
MB Internal Connector PS2
1 x PS2 header
MB Internal Connector Thunderbolt header
1
Camera & audio
MB Rear I/O Audio
3 (Mic-in, Line-in, Line-out)
Audio
Interface: Realtek ALC897, High Definition Audio. Line-in, Line-out, Mic-in
(Rear Side)
Power & battery
Power
Power Supply Unit: 1000W: Rated Output Power Input Voltage 100-240V
1600W: Rated Output Power 1600W at 115-240V, Rated Output Power 1300W at 100-240V
Power On: AT/ATX Supporte
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Dimensions
597 mm (D) x 206 mm (W) x 455.1 mm (H)
Form Factor
iEPF (fanless industrial edge)
Security
Security TPM
TPM 2.0 onboard IC
Other
Socket
LGA1700
BIOS
AMI SPI 256 Mbit
MB Rear I/O VGA
1
MB Rear I/O COM
COM1, COM2 (RS-232/422/485)

I/O Ports 11

  • 1x HDMI 2.0b
  • 1x DP 1.4a++
  • 1x MB Rear VGA
  • 3x 2.5 Gigabit LAN
  • 5x USB 3.2 Gen2
  • 1x USB 3.2 Gen2x2 (Type-C, 5V/3A)
  • 3x MB Rear Audio (Mic-in, Line-in, Line-out)
  • High Definition Audio. Line-in
  • Line-out
  • Mic-in
  • 3x RJ-45
