ASRock

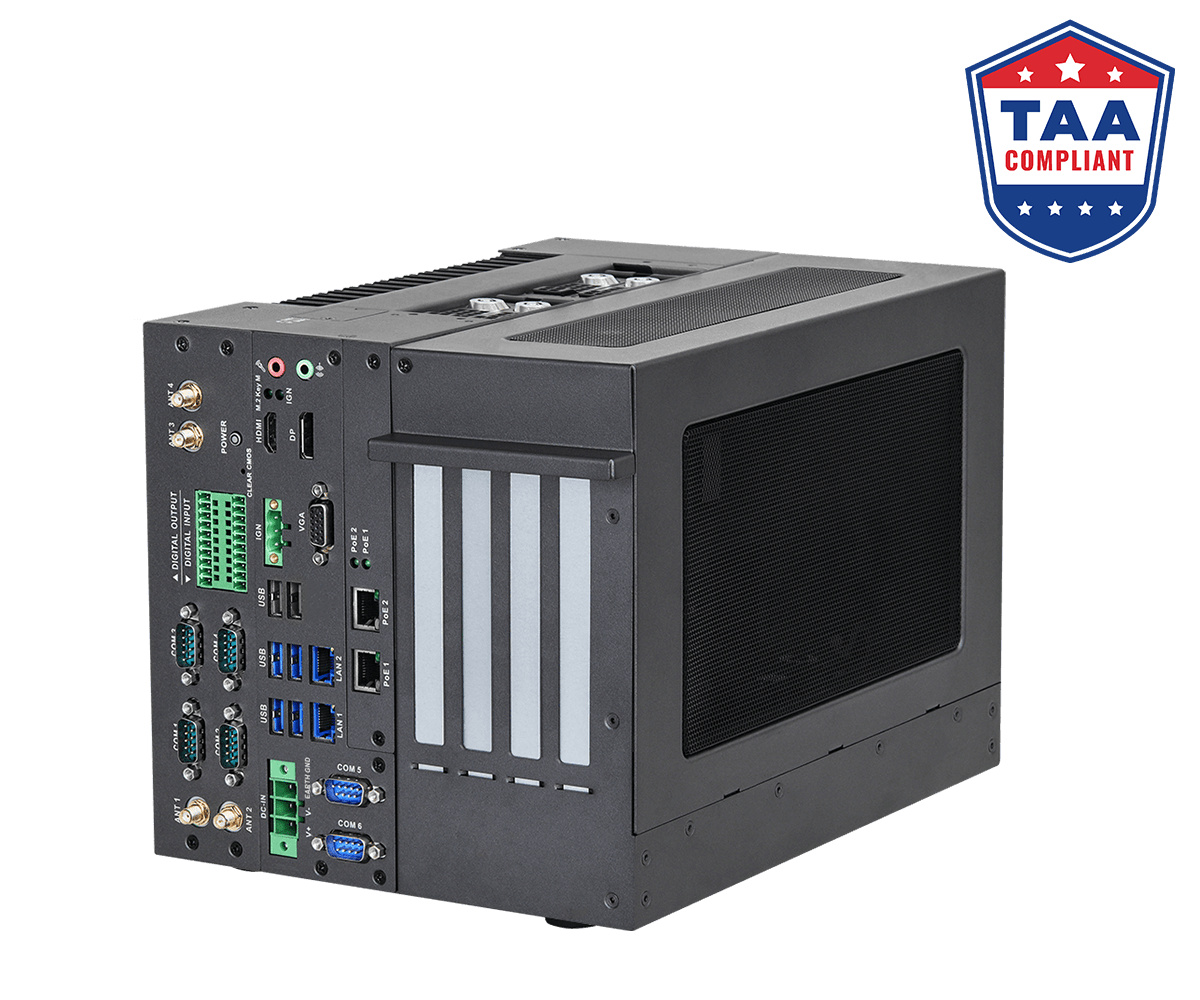

iEPF-9012S-EY4

Model9012S-EY4MPNiEPF-9012S-EY4
ProcessorIntel 12th Gen Core, Pentium or Celeron
Memory64 GB DDR4-2933
Storage6 GB SSD SATA III
GraphicsIntel UHD Graphics
Weight22.1 lb

Specifications 41 normalized

Processor
Processor
Intel 12th Gen Core, Pentium or Celeron Processors
Chipset
Intel H610
Memory & storage
Memory
Technology: Dual Channel DDR4 2933 MHz
Capacity: 64 GB (32 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM
Storage
SATA: 4 x SATA3 (6Gb/s)
Accommodate up to 4 x 2.5" HDD/SSD Tray (Default 1 piece, additional HDD trays are available as optional parts for order)
CFast: 1 x Type II socket (Shared with SATA3)
Storage Temp
40°C~85°C ( -40°F~185°F)
Graphics
Graphics
Intel UHD Graphics
Display
Display Outputs
DisplayPort: DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60 Hz
VGA: Max resolution up to 1920x1200@60 Hz
HDMI: HDMI 2.0b
Front I/O DisplayPort
1
Connectivity
Networking
Controller/ Speed: 4 x Intel 2.5G LAN(2 support PoE, PoE output max.15.4W/port, each port supports IEEE 802.3AF PoE)
Connector: 4 x RJ45
Front I/O Ethernet
4 x 2.5G LAN
Wireless
1 x M.2 (Key E, 2230) with CNVI/PCIe Gen3 x1 and USB2.0 for Wi-Fi/BT module
1 x M.2 (Key B, 2280/3042/3052) with PCIe Gen3 x1 /USB2.0 for 4G / 5G
Expansion PCIe
1 x PCIe Gen4 x16 , with default power cable can support up to 180W graphic card (275 mm x 113 mm x 60 mm (D x H x W),if remove the card holder, it can be limited on 275 mm x 138 mm x 60 mm) Graphic card can be up to 300W with optional VGA module
Expansion mini-PCIe
1 x Full/Half size with PCIe Gen3 x1 and USB 2.0
Expansion RF& Antenna
8 x SMA connector hole reserved
Expansion SIM Socket
2 x Nano SIM Card slot
(1 connected to Mini PCIe, 1 connected to M.2 Key B)
Front I/O HDMI
1
Front I/O USB
2 x USB 3.2 Gen2x1, 2 x USB 3.2 Gen1x1, 2 x USB 2.0,
1 x USB2.0 internal connector w/ lock function
Camera & audio
Audio
Interface: Realtek ALC897, High Definition Audio.
Front I/O Audio
1 x Mic-in, 1 x Line-out
Power & battery
Power
Input PWR: 9V~36V VDC with Ignition control and remote power on/off switch.
80V Surge Protection, OVP, UVP, OCP and reverse protection
Ignition Power Input w/ 13-mode condition
Physical & build
Weight
10 kg
Dimensions
209.8 mm (W) x 290.8 mm (D) x 201.7 mm (H) (8.26" x 11.45" x 7.94")
Form Factor
iEPF (fanless industrial edge)
Operating system & software
Others OS Support
Windows 10 & Linux
Security
Others TPM
TPM 2.0
Other
Socket
LGA 1700
Front I/O VGA
1
Front I/O COM
4 x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
Protection, COM5- Isolation Protection, COM6)
2 x RS232 (COM3, COM4)
Front I/O DIO
8DIs/8DOs
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
35W CPU: -40°C~75°C ( -40°F~167°F)
46W~65W CPU: -40°C~55°C ( -40°F~131°F)
(with FAN inside, without Add-on Card) (w/ air flow 0.5~0.8 m/s)
Humidity
~95% @ 40°C (non-condensing)
Shock
Operating: 50 G, half sine 11ms duration with SSD (More stringent than MIL-STD-810H)
Vibration
Operating: 5 Grms, 5-500 Hz, 3 axes with SSD (More stringent than MIL-STD-810H)
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical Construction
Aluminum heatsink + Metal chassis
Mechanical Mounting
Desk Mount
Others Optional Items
If the system installs the 300W VGA-PWR Board, the VGA Power Output:
VGA Loading <200W (with DC-IN +12V~+36V)
VGA TDP<200W
VGA Loading <350W (Peak) (with DC-IN +24V~+36V)
VGA TDP<285W

I/O Ports 14

  • 4x Intel 2.5G LAN
  • 4x RJ45
  • 1x DisplayPort
  • 1x HDMI
  • 1x VGA
  • 2x USB 3.2 Gen2x1
  • 2x USB 3.2 Gen1x1
  • 2x USB 2.0
  • 1x USB2.0 internal connector w/ lock function
  • 1x Mic-in
  • 1x Line-out
  • 4x RS232/422/485 (COM1, COM2- optional Card w/ Isolation
  • 2x RS232 (COM3, COM4)
  • 4x 2.5G LAN
