ASRock

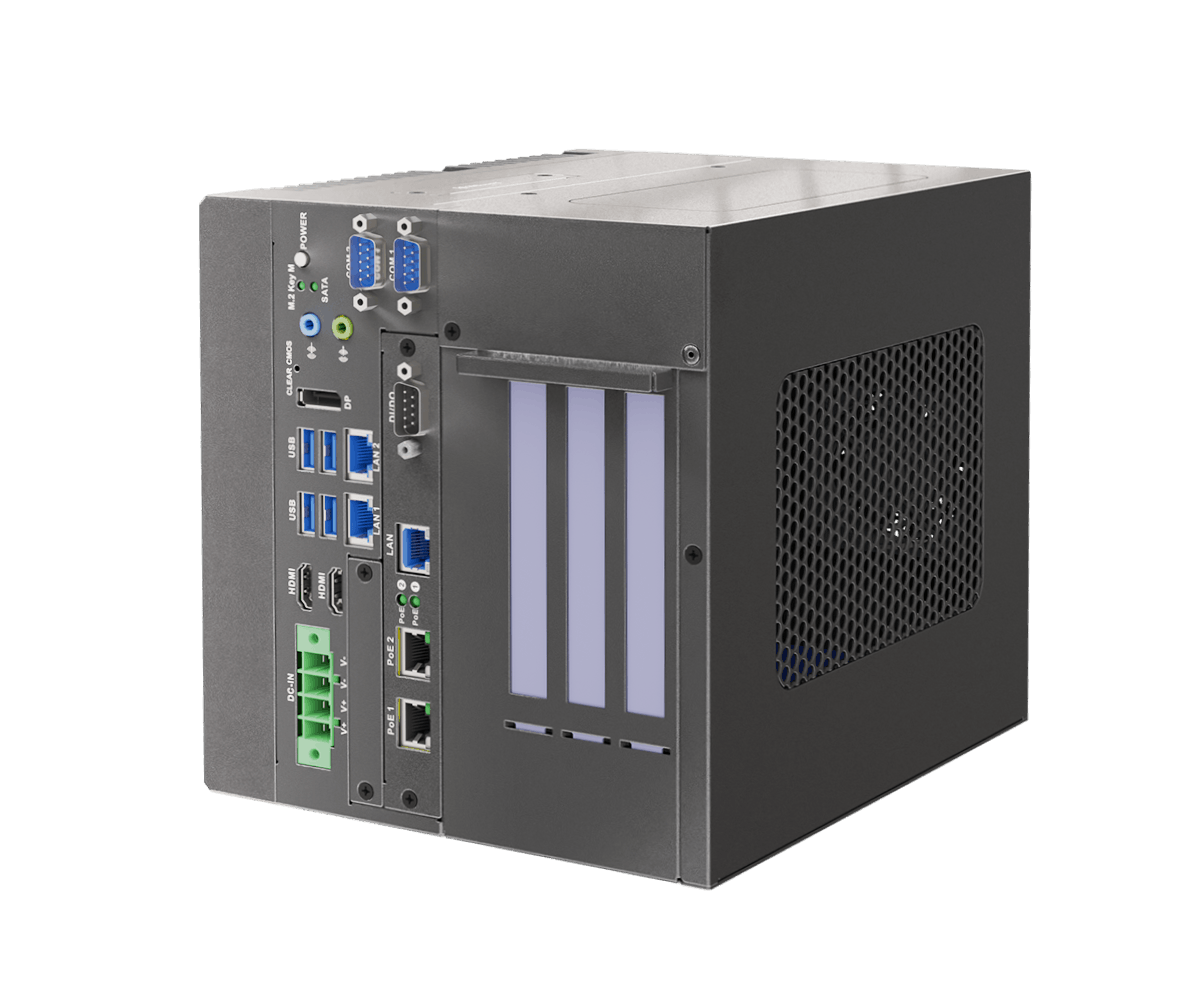

iEPF-9040VS-EW2

Model9040VS-EW2MPNiEPF-9040VS-EW2
ProcessorIntel Core
Memory96 GB DDR5-5600 ECC
Storage6 GB NVMe PCIe 4.0
GraphicsIntel UHD Graphics
Weight16.5 lb

Specifications 36 normalized

Processor
Processor
Intel Core Processors (Series 2)
Chipset
Intel R680E
Memory & storage
Memory
Technology: Dual Channel DDR5 5600 MHz
(ECC memory supported by R680E + Selected CPU)
Capacity: 96 GB (48 GB per DIMM)
Socket: 2 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280/22110/25110) with
Gen4 x4 for NVMe SSD
SATA: 2 x SATA3 (6Gb/s), R680E: support RAID 0/1
CFast: 1 x Type II socket (Shared with SATA3)
Storage Temp
40°C~85°C ( -40°F~185°F)
Graphics
Graphics
Intel UHD Graphics
Display
Display Outputs
DisplayPort: DisplayPort 1.4a , DP++
Max resolution up to 4096x2160@60 Hz
HDMI: HDMI 2.0b
Front I/O DisplayPort
1
Connectivity
Networking
Controller/ Speed: 1 x Intel i219LM (vPro Support)
1 x Intel i210IT
Connector: 2 x RJ45
Front I/O Ethernet
2 x Intel 1G LAN
Expansion PCIe
2 x PCIe Gen4 x8
Front I/O HDMI
2
Front I/O USB
4 x USB 3.2 Gen2x1, 2 x Internal USB 3.2 Gen2x1 (Optional)
Camera & audio
Audio
Interface: Realtek ALC897, High Definition Audio.
Front I/O Audio
1 x Line-in, 1 x Line-out
Power & battery
Power
Input PWR: 9V~36V DC
Physical & build
Weight
7.5 kg
Dimensions
187 mm (W) x 231.1 mm (D) x 200 mm (H) (7.36" x 9.10" x 7.87")
Form Factor
iEPF (fanless industrial edge)
Operating system & software
Others OS Support
Windows 11 & Windows 10 & Linux
Security
Others TPM
TPM 2.0
Other
Socket
LGA 1700
Front I/O COM
2 x RS232/422/485
Front I/O DIO
4DIs/4DOs
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
45W CPU: - 40°C ~ 55°C (-40°F ~ 131°F)
65W CPU: - 40°C ~ 50°C (-40°F ~ 122°F)
(w/airflow 0.5~0.8 m/s)
Humidity
~95% @ 40°C (non-condensing)
Shock
MIL-STD-810H, Method 516.8, Procedure I
Vibration
MIL-STD-810H, Method 514.8
ESD
Contact +/-4kV, Air +/-8kV
EMC
EN61000-6-4/-2, CE & FCC Class A
Safety
LVD
Mechanical Construction
Aluminum heatsink + Metal chassis
Mechanical Mounting
Desk Mount
Others Real-Time Enablement
TSN, TCC support under YOCTO

I/O Ports 9

  • 2x RJ45
  • 1x DisplayPort
  • 2x HDMI
  • 2x Intel 1G LAN
  • 4x USB 3.2 Gen2x1
  • 2x Internal USB 3.2 Gen2x1 (Optional)
  • 1x Line-in
  • 1x Line-out
  • 2x RS232/422/485
