ASRock

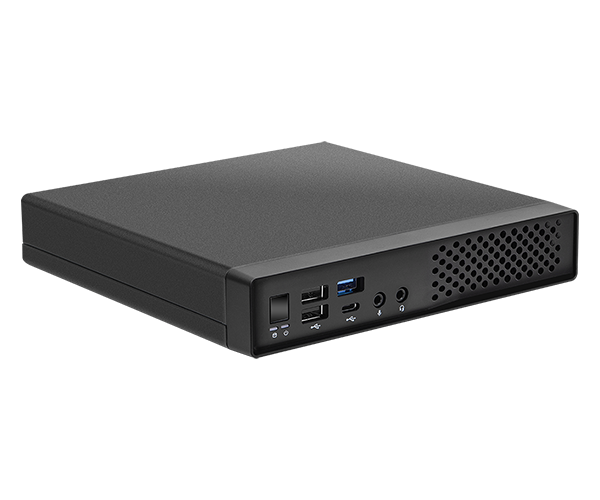

Jupiter X600

SKUJupiter X600
ProcessorSupports AMD Socket AM5 Ryzen 9000/8000/7000 Series
Memory128 GB DDR5-6400
Storage6 GB HDD PCIe 4.0
GraphicsDisplayPort 1.4
OSWindows 10

Specifications 17 normalized

Processor
Processor
Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors (Max. TDP 35W)
Chipset
AMD X600
Memory & storage
Memory
Supports 2 x DDR5-6400+(OC)MHz SO-DIMM Slots, Max. 128 GB (non-ECC)
Storage
1 x SATA 6Gb 2.5-inch 7 mm/9.5 mm Hard Drive
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
Graphics
Graphics
2 x DisplayPort 1.4 (DP1 & DP2) *
1 x HDMI
1 x Type-C * *
Connectivity
Networking
1 x 2.5 Gigabit LAN
Dragon RTL8125BG
Wireless
Default: Intel AC3168 or Azurewave AW-XB611NF Wi-Fi module
Optional: Intel AX210 Wi-Fi Module
Camera & audio
Audio
Realtek ALC269
1 x Head Phone with Mic Jack
1 x Mic-In
1 x 1W Speaker (optional)
Power & battery
Power Unit
90W/19V Adapter
Physical & build
Dimension
Motherboard: 170 x 172 (Proprietary)
Barebones: 179 x 178 x 34 mm (1.1L)
Form Factor
Compact SFF PC
Cooling
Integrated Cooling Solution
Operating system & software
Operating System
Microsoft Windows 10/11 64-bit compliant
Security
Security
TPM 2.0 IC (optional)
Kensington lock
Other
Front I/O
1 x Power Button
1 x Headphone/Headset Jack
1 x USB 3.2 Gen1 Type-A Port
1 x USB 3.2 Gen1 Type-C Port
2 x USB 2.0 Ports
1 x Microphone Input Jack
Rear I/O
1 x DC Jack (Compatible with the 19V power adapter)
1 x HDMI Port
2 x DisplayPort
1 x COM Port
4 x USB 3.2 Gen1 Type-A Ports
1 x USB 4.0 Type-C Port (40 Gb/s) *
1 x RJ-45 LAN Port with LED
Accessory
1 x Quick Installation Guide
1 x SATA Data with Power Cable
1 x Screws Pack
1 x Stand (optional)
1 x VESA Mount
2 x Antennas

I/O Ports 15

  • 1x Head Phone with Mic Jack
  • 1x Mic-In
  • 1x 2.5 Gigabit LAN
  • 1x Headphone/Headset Jack
  • 1x USB 3.2 Gen1 Type-A Port
  • 1x USB 3.2 Gen1 Type-C Port
  • 2x USB 2.0 Ports
  • 1x Microphone Input Jack
  • 1x DC Jack (Compatible with the 19V power adapter)
  • 1x HDMI Port
  • 2x DisplayPort
  • 1x COM Port
  • 4x USB 3.2 Gen1 Type-A Ports
  • 1x USB 4.0 Type-C Port (40 Gb/s)
  • 1x RJ-45 LAN Port with LED
