Catalog›Mini PCs›ASRock
ASRock

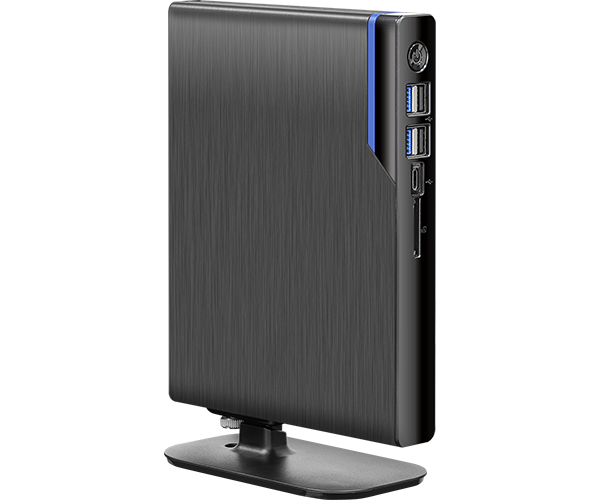

Mars ADL

SKUMars ADL
ProcessorIntel Core i5 1235U
Memory64 GB DDR4
Storage64 GB PCIe 4.0
GraphicsIntel Iris Xe Graphics
OSWindows 10

Specifications 17 normalized

Processor
Processor
Intel Core i5-1235U (10C12T, Turbo 4.4 GHz)
Memory & storage
Memory
Supports 2 x SO-DIMM DDR4, Max. 64 GB (non-ECC)
Storage
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3 x4 (32 Gb/s) modes *
1 x SD Card Reader
Graphics
Graphics
Intel Iris X e Graphics
Graphics Output
1 x Intel Thunderbolt 4 (8K@60 Hz) *
1 x HDMI (4K@60 Hz)
1 x D-Sub (1920x1200)
Connectivity
Networking
1 x RJ45 Gigabit LAN
Wireless
1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
1 x Intel AX210 Wi-Fi 6E Module
Front USB
1 x USB 4.0 Thunderbolt 4 Type-C (40 Gb/s for USB 4.0 protocol
40Gb/s for Thunderbolt protocol) *
2 x USB 3.2 Gen2 Type-A (10Gb/s)
2 x USB 2.0
Rear USB
2 x USB 3.2 Gen2 Type-A (10Gb/s)
Camera & audio
Audio
Realtek ALC269
1 x Line Out
1 x Microphone
Power & battery
Power Unit
65W/19V Adapter
Physical & build
Dimension
194 x 150 x 26 mm (~0.7L)
Form Factor
NUC-class mini-PC (soldered CPU)
Cooling
Integrate Proprietary Fansink
Operating system & software
Operating System
Microsoft Windows 10 64-bit / 11 64-bit
Other
Certification
CE, FCC
Remark
VESA Mount
Stand

I/O Ports 10

  • 1x Intel Thunderbolt 4 (8K@60Hz)
  • 1x HDMI (4K@60Hz)
  • 1x D-Sub (1920x1200)
  • 1x Line Out
  • 1x Microphone
  • 1x USB 4.0 Thunderbolt 4 Type-C (40 Gb/s for USB 4.0 protocol
  • 40Gb/s for Thunderbolt protocol)
  • 2x USB 3.2 Gen2 Type-A (10Gb/s)
  • 2x USB 2.0
  • 1x RJ45 Gigabit LAN
