ASRock

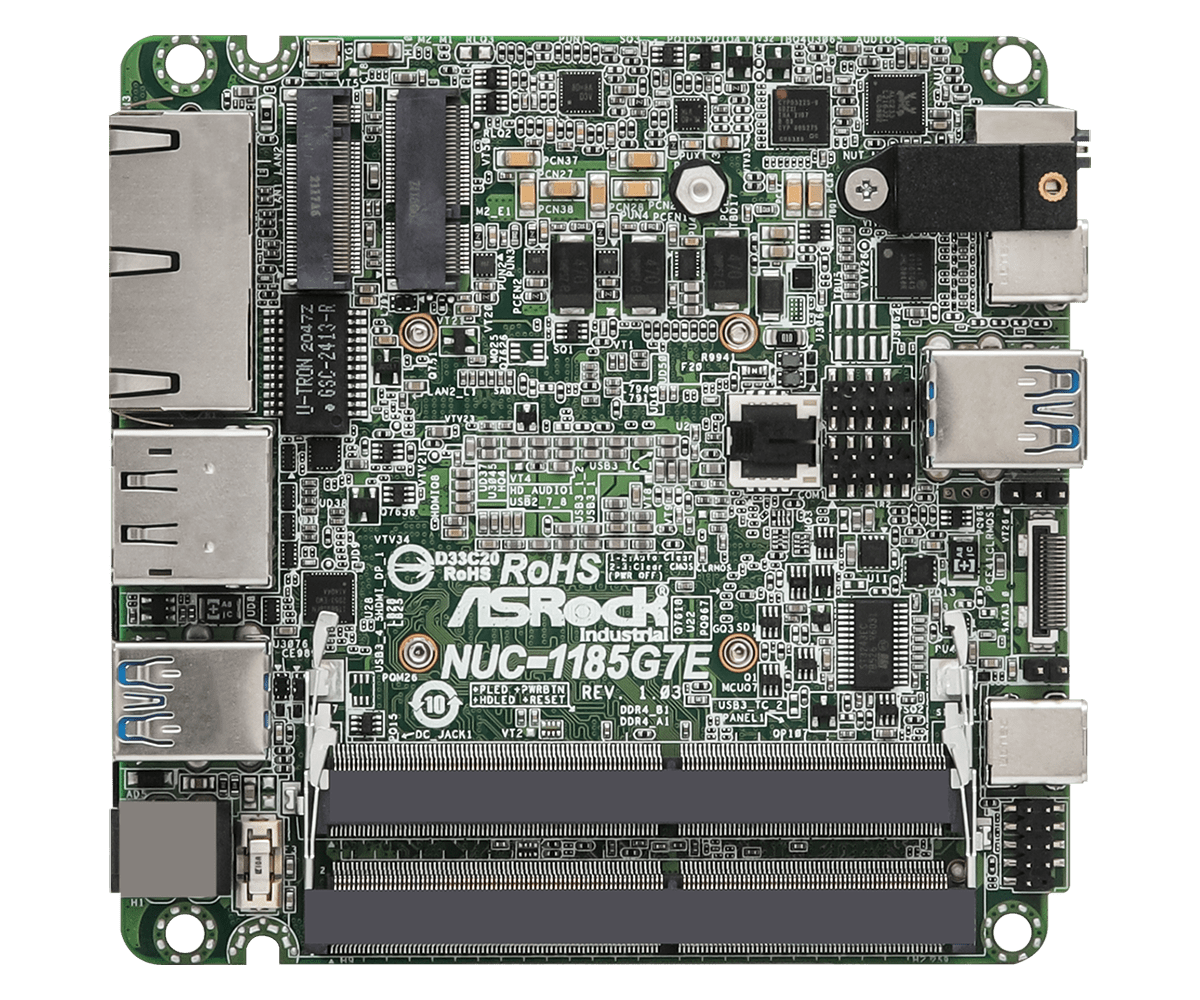

NUC-1185G7E
Model
NUC-1185G7ESKU1185G7ESoCIntel 11th Gen
RAM64 GB DDR4-3200
Storage6.0 GB SSD
Ethernet1 GbE
Power in12 to 19 V DC
Form factorMini PC
Specifications 29
Audio
- Audio
- Interface: Realtek ALC233/ALC256, High Definition Audio.
- Front I/O Audio
- 1 (headphone & microphone jack)
Environment & compliance
- Storage Temperature
- 40 °C ~ 85 °C
- Storage Humidity
- 5% ~ 90%
- Operating Temperature
- 20ºC ~ 70ºC
- Operating Humidity
- 5% ~ 90%
Display
- Display Outputs
- HDMI: HDMI 2.0a
Max resolution up to 4096x2160@60 Hz
DisplayPort: DisplayPort 1.4, DP++
MultiDisplay: Max 4 display (Included 2 outputs from Type-C) - Rear I/O HDMI
- 1 x HDMI 2.0a
- Rear I/O DisplayPort
- 1 x DP 1.4
Processor & AI
- Processor
- Intel 11th Gen (Tiger Lake-UP3) Core Processors
NUC-1185G7E (I7-1185G7E QC, Max Speed up to 4.4 GHz) - Chipset
- MCP
- Graphics
- Intel Iris Xe Graphics for i7/i5 CPU
Memory & storage
- Memory
- Technology: Dual Channel DDR4 3200 MHz
Capacity: 64 GB (32 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM - Storage
- M.2: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4 x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s) - Expansion M.2
- 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Networking
- Networking
- Controller/ Speed: LAN1: Intel I219LM with 10/100/1000 Mbps, supports vPro
LAN2: Intel I225LM/I225V/I226V with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45 - Rear I/O Ethernet
- 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
I/O & expansion
- Front I/O USB
- 2 x USB 3.2 Gen2 (Type-A)
1 x USB 4/Thunderbolt 4 (5V/3A, supports DP1.4 display output)
1 x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP1.4 display output)
*For Thunderbolt support, please refer to support list. - Rear I/O USB
- 2 x USB 3.2 Gen2 (Type A)
- Rear I/O DC Jack
- 1
- Internal Connector USB
- 2 x USB 2.0 (1 x 2.00 pitch header)
- Internal Connector COM
- 1 x COM(RS-232)
- Watchdog Timer Output
- From Super I/O to drag RESETCON#
- Watchdog Timer Interval
- 256 Segments, 0, 1, 2, ...255sec
Power
- Power
- Input PWR: 12V~19V DC-In Jack
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical
- Form Factor Dimensions
- NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)
- Form Factor
- NUC-form SBC (4"×4")
Software & security
- BIOS
- AMI SPI 256 Mbit
- Security TPM
- TPM 2.0 onboard IC
I/O Ports 9
- 2x RJ-45
- 2x USB 3.2 Gen2 (Type-A)
- 1x USB 4/Thunderbolt 4 (5V/3A, supports DP1.4 display output)
- 1x USB 3.2 Gen2 (Type-C, 5V/3A, supports DP1.4 display output)
- 1x Audio (headphone & microphone jack)
- 1x HDMI 2.0a
- 1x DP 1.4
- 1x 1 Gigabit LAN
- 1x 2.5 Gigabit LAN
