ASRock

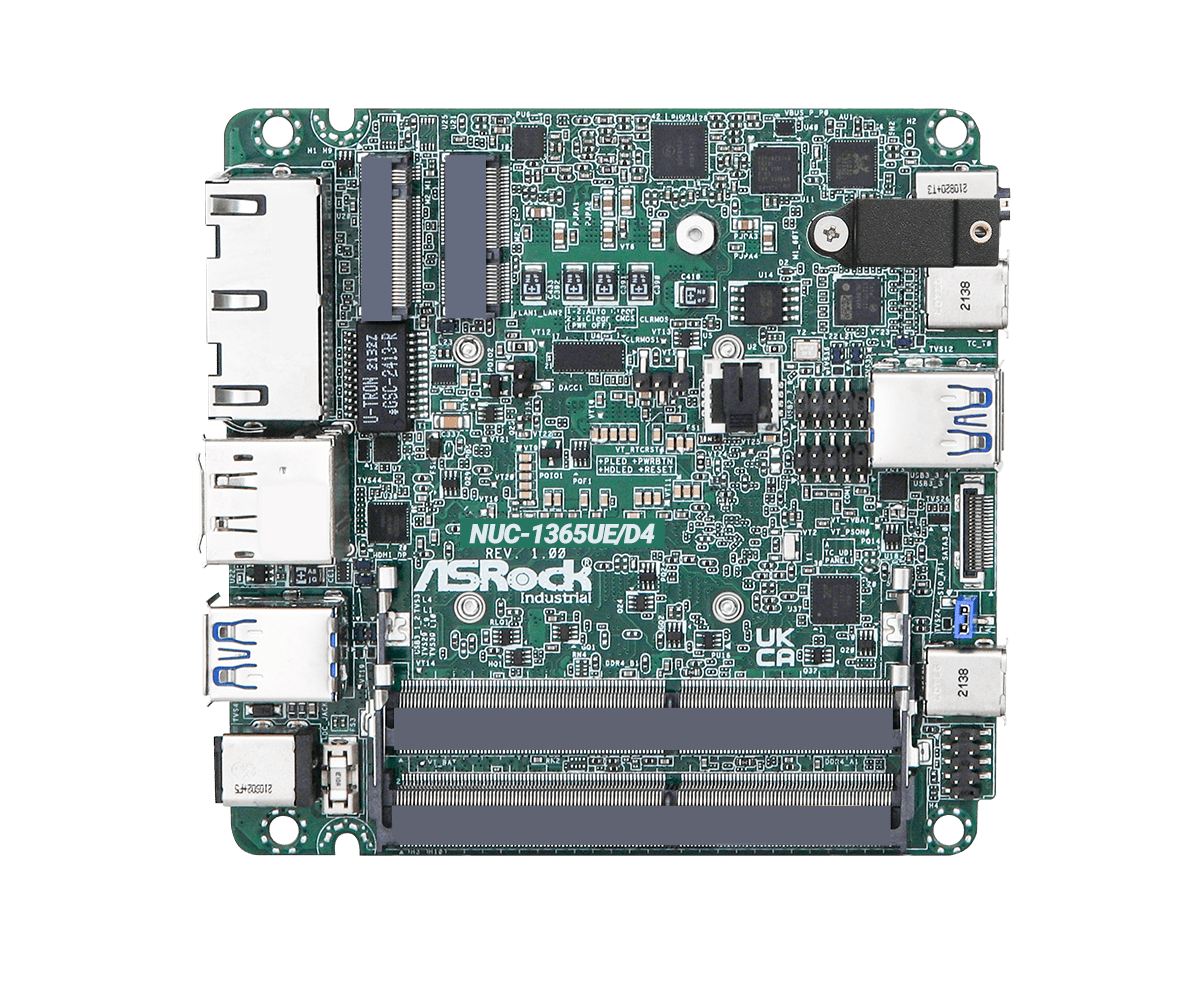

NUC-1365UE/D4

ModelNUC-1365UE/D4SKU1365UE/D4
ProcessorIntel 13th Gen
Memory64 GB DDR4-3200
Storage6.0 GB SSD PCIe 4.0
GraphicsIntel Iris Xe

Specifications 29 normalized

Processor
Processor
Intel 13th Gen (Raptor Lake-P) Core Processors
NUC-1365UE/D4 (i7-1365UE, 2P+8E)
Chipset
MCP
Memory & storage
Memory
Technology: Dual Channel DDR4 3200 MHz
Capacity: 64 GB (32 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280 (Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Storage Temp
40° C ~ 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
Intel Iris Xe Graphics
Display
Display Outputs
HDMI: HDMI 2.0b
Max resolution up to 4096x2160@60 Hz
DisplayPort: DisplayPort 1.4a, DP++
MultiDisplay: Max 4 display (Included 2 outputs from Type-C)
Rear I/O DisplayPort
1 x DP 1.4a
Connectivity
Networking
Controller/ Speed: LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I226LM/I226V with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 2.5 Gigabit LAN
Expansion M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
Front I/O USB
2 x USB 3.2 Gen2 (Type-A)
1 x USB4/Thunderbolt 4 (5V/3A, supports DP1.4a display output)
1 x USB 3.2 Gen2 (Type-C, 5V/1.5A, supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Rear I/O HDMI
1 x HDMI 2.0b
Rear I/O USB
2 x USB 3.2 Gen2 (Type-A)
Internal Connector USB
2 x USB 2.0 (1 x 2.00 pitch header)
Internal Connector COM
1 x COM (RS-232/RS-422/RS-485)
Camera & audio
Audio
Interface: Realtek ALC233/ALC256, High Definition Audio.
Front I/O Audio
1 (headphone & microphone jack)
Power & battery
Power
Input PWR: 12V~19V DC-In Jack
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Form Factor Dimensions
NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 cm)
Form Factor
NUC-form SBC (4"×4")
Security
Security TPM
TPM 2.0 onboard IC
Other
BIOS
AMI SPI 256 Mbit
Rear I/O DC Jack
1
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
20ºC ~ 70ºC
Operating Humidity
5% ~ 90%

I/O Ports 8

  • 2x RJ-45
  • 2x USB 3.2 Gen2 (Type-A)
  • 1x USB4/Thunderbolt 4 (5V/3A, supports DP1.4a display output)
  • 1x USB 3.2 Gen2 (Type-C, 5V/1.5A, supports DP1.4a display output)
  • 1x Audio (headphone & microphone jack)
  • 1x HDMI 2.0b
  • 1x DP 1.4a
  • 2x 2.5 Gigabit LAN
