ASRock

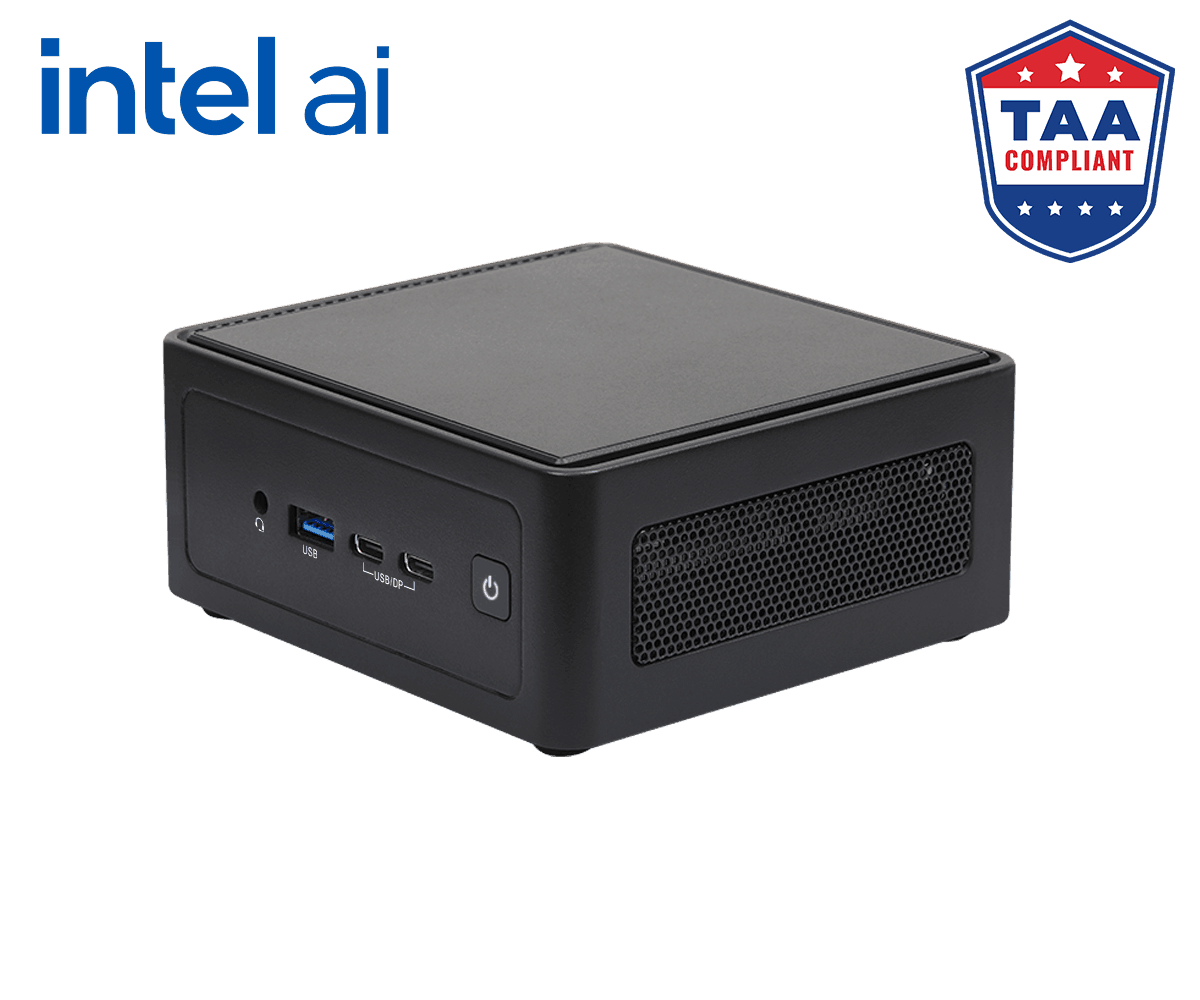

NUC BOX-225H

Model225HMPNNUC BOX-225H
ProcessorUltra
Memory96 GB DDR5-6400
Storage6.0 GB SSD PCIe 4.0
GraphicsIntel Arc 130T
Weight2.2 lb

Specifications 31 normalized

Processor
Processor
Ultra processors (Arrow Lake-H)
NUC BOX-225H (Ultra 5 225H, 4P+8E)
Chipset
MCP
Memory & storage
Memory
Technology: Dual Channel DDR5 6400 MHz
Capacity: 96 GB (48 GB per DIMM)
Socket: 2 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
SATA: 1 x SATA3.0 (6.0 Gb/s)
RAID: Intel VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M
Storage Temp
40° C ~ 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
Intel Arc 130T graphics
Display
Display Outputs
HDMI: HDMI 2.1 TMDS
Max resolution up to 4096x2160@60 Hz
DisplayPort: DisplayPort 2.1/ 1.4a, DP++
MultiDisplay: Quad-Display (Included 2 outputs from Type-C)
Connectivity
Networking
Controller/ Speed: LAN1: Intel I226LM with 10/100/1000/2500 Mbps
LAN2: Intel I226V with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 2.5 Gigabit LAN
Wireless
1 x Wi-Fi 6E 802.11ax + BT 5.3
(M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)
Front I/O USB
1 x USB 3.2 Gen2 (Type A)
1 x USB4/ThunderboltTM 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
Rear I/O HDMI
2 x HDMI 2.1 TMDS
Rear I/O USB
2 x USB 3.2 Gen2 (Type-A)
Camera & audio
Audio
Interface: Realtek ALC256, High Definition Audio.
Front I/O Audio
1 (headphone & microphone jack)
Power & battery
Power
Input PWR: 12V~24V DC-In Jack
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Weight
Net Weight:1.0Kg
Dimensions
117.5 x 110.0 x 49 mm (4.63" x 4.33" x 1.93")
Form Factor
NUC BOX (NUC-class)
Operating system & software
Others OS Support
Windows 10/11
Security
Others TPM
Intel PTT
Other
BIOS
AMI SPI 256 Mbit
Rear I/O DC Jack
1
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
0ºC ~ 40ºC
Operating Humidity
5% ~ 90%
Mechanical Mounting
VESA mount
Others Certifications
CE, FCC
Others Packing List
1 x 19V/120W Power Adapter (Core Ultra 7)
1 x 19V/90W Power Adapter (Core Ultra 5)
1 x VESA mount bracket

I/O Ports 8

  • 2x RJ-45
  • 1x USB 3.2 Gen2 (Type A)
  • 1x USB4/Thunderbolt 4 (Supports DP 2.1 display output)
  • 1x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
  • 1x Audio (headphone & microphone jack)
  • 2x HDMI 2.1 TMDS
  • 2x 2.5 Gigabit LAN
  • 2x USB 3.2 Gen2 (Type-A)
