ASRock

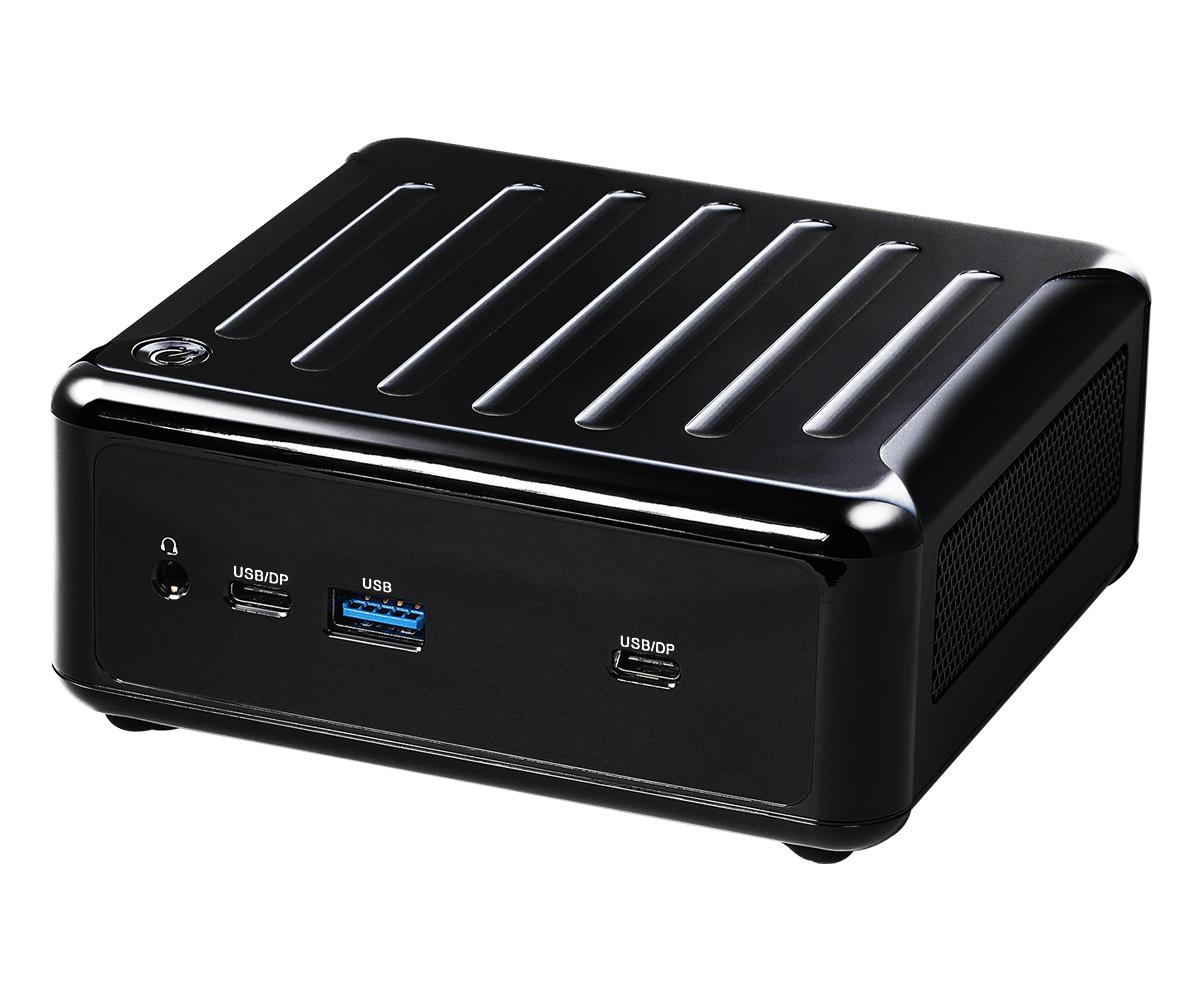

NUC BOX-N97/D5

ModelN97/D5MPNNUC BOX-N97/D5
ProcessorIntel N97
Memory32 GB DDR5-4800
Storage6.0 GB SSD PCIe 3.0
GraphicsIntel UHD Graphics
Weight2.2 lb

Specifications 31 normalized

Processor
Processor
Intel Alder Lake-N Processors N97
Chipset
MCP
Memory & storage
Memory
Technology: Single Channel DDR5 4800 MHz
Capacity: 32 GB
Socket: 1 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Storage Temp
40° C – 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
Intel UHD Graphics
Display
Display Outputs
HDMI: HDMI 2.0b
Max resolution up to 4096x2160@60 Hz
DisplayPort: DisplayPort 1.4a, DP++
MultiDisplay: Triple-Display (Included 2 outputs from Type-C)
Connectivity
Networking
Controller/ Speed: LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 2.5 Gigabit LAN
Wireless
1 x Wifi-Fi 6E 802.11ax + BT 5.2
Front I/O USB
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
Rear I/O HDMI
2 x HDMI 2.0b
Rear I/O USB
2 x USB 3.2 Gen2 (Type-A)
Internal Connector TPM
TPM 2.0 onboard IC
Camera & audio
Audio
Interface: Realtek ALC256, High Definition Audio.
Front I/O Audio
1 (headphone & microphone jack)
Power & battery
Power
Input PWR: 9V~24V DC-In Jack
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Weight
Net Weight:1.0Kg
Dimensions
117.5 x 110.0 x 47.85 mm (4.63" x 4.33" x 1.88")
Form Factor
NUC BOX (NUC-class)
Operating system & software
Others OS Support
Windows 10/11
Other
BIOS
AMI SPI 256 Mbit
Rear I/O DC Jack
1
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
0ºC ~ 40ºC
Operating Humidity
5% ~ 90%
Mechanical Mounting
VESA mount
Others Certifications
CE, FCC
Others Packing List
1 x 19V/65W Power Adapter
1 x VESA mount bracket

I/O Ports 7

  • 2x RJ-45
  • 1x USB 3.2 Gen2 (Type-A)
  • 2x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
  • 1x Audio (headphone & microphone jack)
  • 2x HDMI 2.0b
  • 2x 2.5 Gigabit LAN
  • 2x USB 3.2 Gen2 (Type-A)
