ASRock

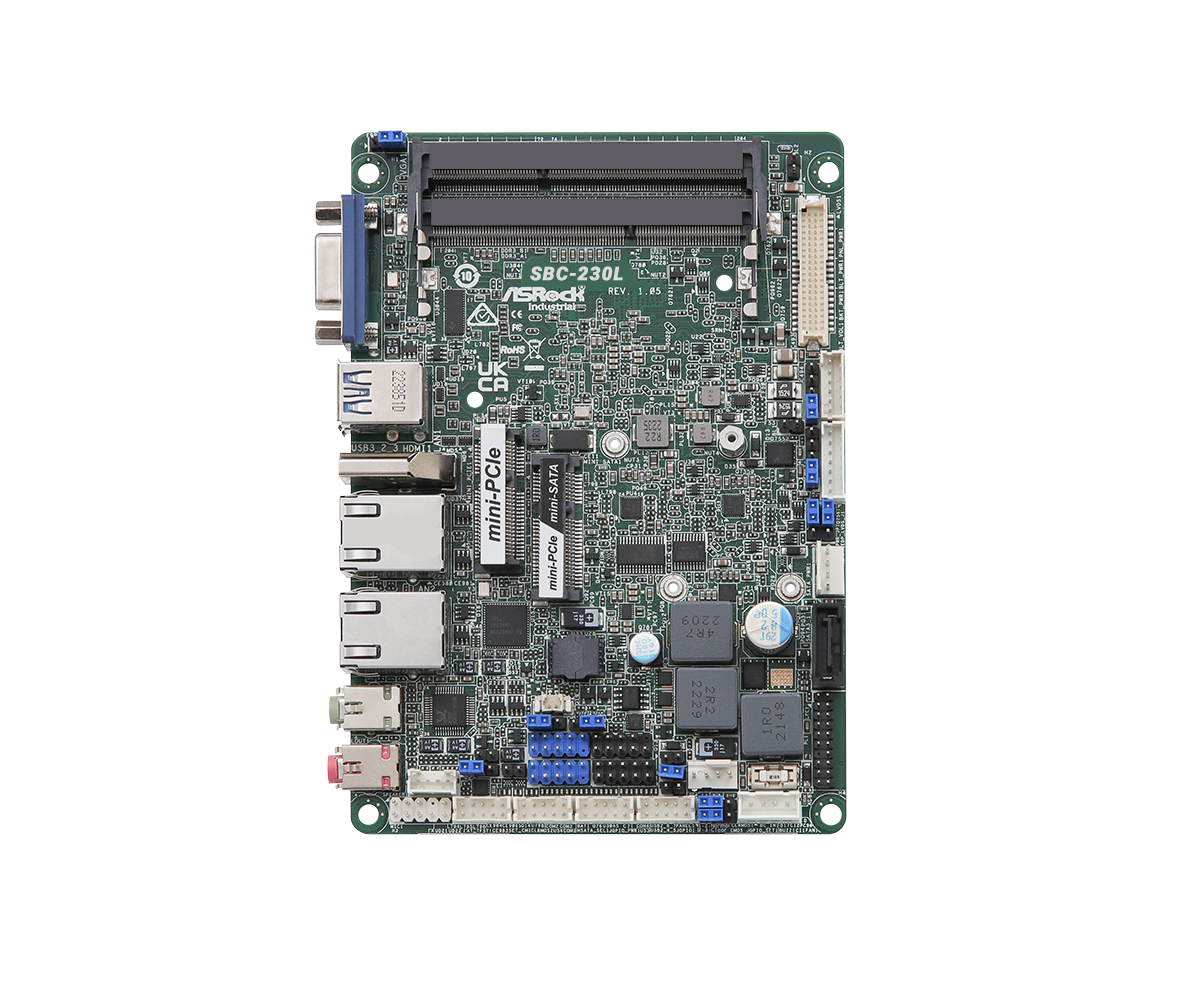

SBC-230L

ModelSBC-230LSKU230L
SoCIntel Apollo Lake/Apollo Lake-I SoC
RAM16 GB DDR3L-1866
Storage6 GB SATA III
GPIO4 x GPI, 4 x GPO
Ethernet1 GbE
PortsHDMI 1.4b · RJ45
Power in9 to 36 V DC
Form factorSBC (single-board computer)

Specifications 33

Audio
Audio
Interface: Realtek ALC897, High Definition Audio.
Rear I/O Audio
2 (Mic-in, Line-out)
Internal Connector Speaker Header
1
Environment & compliance
Storage Temperature
40 °C ~ 85 °C
Storage Humidity
5% ~ 90%
Operating Temperature
0ºC ~ 60ºC
Operating Humidity
5% ~ 90%
Display
Display Outputs
HDMI: HDMI 1.4b
Max resolution up to 4096 x 2160@24 Hz
VGA: Max resolution up to 1920x1200@60 Hz
LVDS: Dual channel 24 bit up to 1920x1200@60 Hz
eDP: Max resolution up to 4096x2160@60 Hz
MultiDisplay: Triple Display
Rear I/O HDMI
1 x HDMI 1.4b
Rear I/O VGA
1
Internal Connector LVDS
1 (shared with eDP, switch by BIOS)
Internal Connector eDP
1 (shared with LVDS, switch by BIOS)
Processor & AI
Processor
Intel Apollo Lake/Apollo Lake-I SoC Processors
SBC-230L (N3350, DC, 1.10 GHz, 6 W)
Chipset
SoC
Graphics
Intel Gen9 Graphics DX 12
Memory & storage
Memory
Technology: Dual Channel DDR3L 1866 MHz
Capacity: 16 GB (8 GB per DIMM)
Socket: 2 x 204-pin SO-DIMM
Storage
mSATA: 1 x Half size with USB 2.0 colay with Mini-PCIe
SATA: 1 x SATA3 (6Gb/s)
Expansion mini-PCIe/mSATA
1 x Full size with USB 2.0
Internal Connector SATA PWR Output
1
Networking
Networking
Controller/ Speed: 2 x Intel I210 with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 1 Gigabit LAN
I/O & expansion
Expansion mini-PCIe
1 x Full size with PCIe x1 and USB 2.0
Rear I/O USB
2 x USB 3.1 Gen1
Internal Connector USB
4 x USB 2.0 (2x 2.54 pitch header)
Internal Connector COM
1 x COM(RS-232/422/485)
3 x COM(RS-232)
Internal Connector GPIO
4 x GPI, 4 x GPO
Internal Connector TPM
TPM Header
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Power
Power
Input PWR: 9~36V DC-In
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical
Form Factor Dimensions
3.5"SBC (5.8-in x 4.0-in, 14.7 cm x 10.2 cm)
Form Factor
SBC (single-board computer)
Software & security
BIOS
AMI SPI 128 Mbit

I/O Ports 8

  • High Definition Audio. Line-out
  • Mic-in
  • 2x RJ-45
  • 1x HDMI 1.4b
  • 1x VGA
  • 2x 1 Gigabit LAN
  • 2x USB 3.1 Gen1
  • 2x Audio (Mic-in, Line-out)
