ASRock

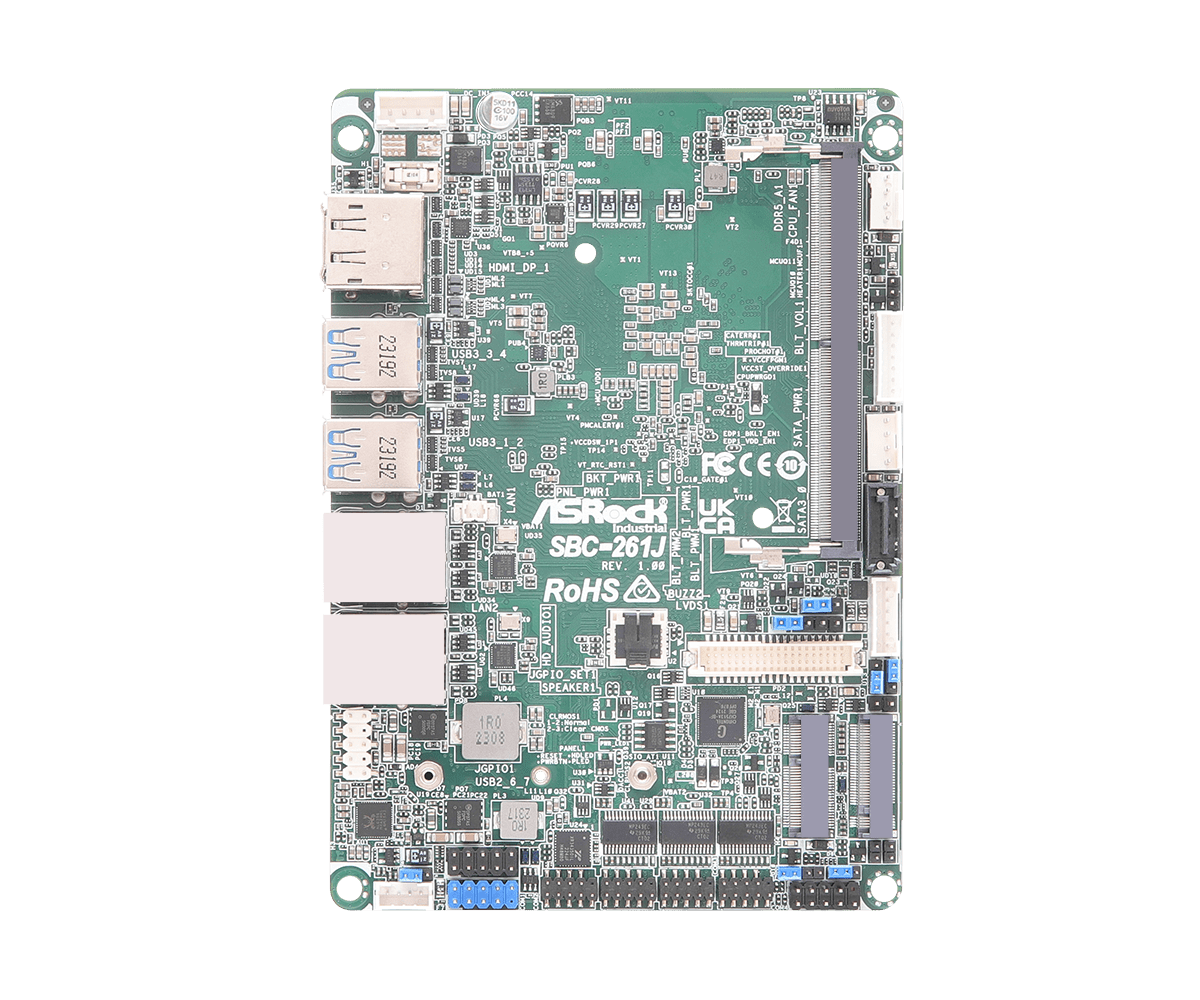

SBC-261J

ModelSBC-261JSKU261J
ProcessorIntel Alder Lake-N
Memory32 GB DDR5-4800
GraphicsIntel UHD Graphics

Specifications 29 normalized

Processor
Processor
Intel Alder Lake-N Processors
SBC-261J (N97, QC, Max Speed Up to 3.6 GHz, 12W)
Memory & storage
Memory
Technology: Single Channel DDR5 4800 MHz
Capacity: 32 GB
Socket: 1 x 262-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen3 x1, SATA3 and USB 2.0 for SSD
SATA: 1 x SATA3
Storage Temp
40° C ~ 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
Intel UHD Graphics
Display
Display Outputs
HDMI: HDMI 2.0b
Max resolution up to 4096 x 2160@60 Hz
DisplayPort: DP 1.4b
LVDS: Dual channel 24 bit up to 1920 x 1200@60 Hz
(Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60 Hz
(Connector shared with LVDS)
MultiDisplay: Triple display
Rear I/O DisplayPort
1 x DP 1.4b
Connectivity
Networking
Controller/ Speed: LAN1: Realtek RTL8111H with 10/100/1000 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
2 x 1 Gigabit LAN
Internal Connector Speaker Header
1
Expansion M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
Rear I/O HDMI
1 x HDMI 2.0b
Rear I/O USB
4 x USB 3.2 Gen2
Internal Connector USB
2 x USB 2.0 (1 x 2.54 pitch header)
Internal Connector COM
COM1 (RS-232/422/485)
COM2, COM3, COM4 (RS232)
Internal Connector GPIO
4 x GPI, 4 x GPO
Internal Connector LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
Internal Connector SATA PWR Output
1
Camera & audio
Audio
Interface: Realtek ALC256 HD, High Definition Audio.
Power & battery
Power
Input PWR: 12V DC-In
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Form Factor Dimensions
3.5"SBC (5.8-in x 4-in x 1.02-in, 14.7 cm x 10.2 cm x 2.6 cm)
Form Factor
SBC (single-board computer)
Security
Security TPM
Intel PTT
Other
BIOS
AMI SPI 256 Mbit
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
20ºC ~ 70ºC
Operating Humidity
5% ~ 90%

I/O Ports 5

  • 2x RJ-45
  • 1x HDMI 2.0b
  • 1x DP 1.4b
  • 2x 1 Gigabit LAN
  • 4x USB 3.2 Gen2
