ASRock

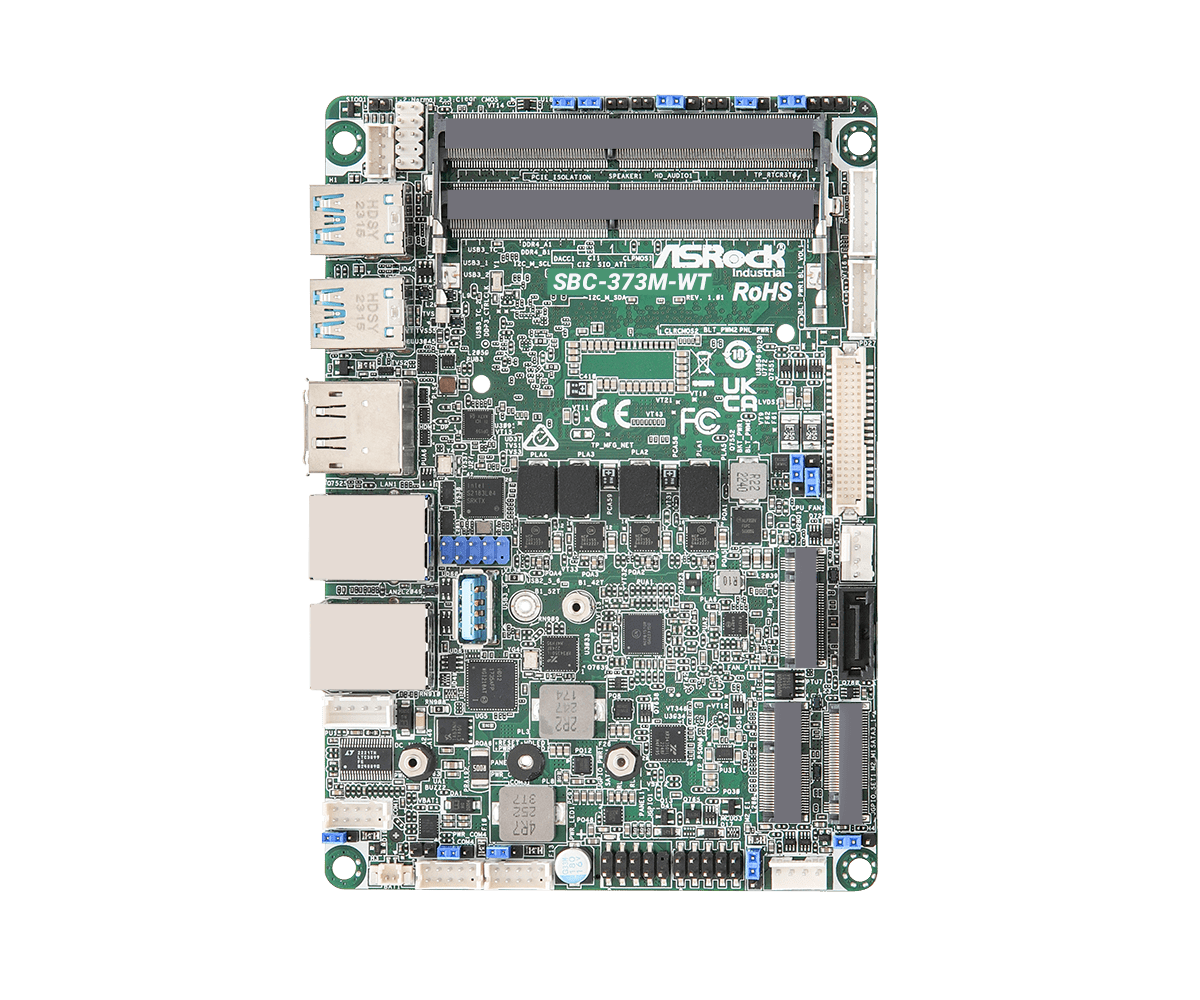

SBC-373M-WT

ModelSBC-373M-WTSKU373M-WT
ProcessorIntel Core i5 1345URE
Memory64 GB DDR4-3200
Storage6 GB SSD PCIe 4.0
GraphicsIntel Iris Xe

Specifications 31 normalized

Processor
Processor
Intel 13th Gen Raptor Lake P Processors i5-1345URE, 2P+8E
Memory & storage
Memory
Technology: Dual Channel DDR4 3200 MHz
Capacity: 64 GB (32 GB per DIMM)
Socket: 2 x 260-pin SO-DIMM
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 and USB 2.0 for SSD
SATA: 1 x SATA3 (6Gb/s)
RAID: Intel VMD RAID 0/1
**supported by PCIE interface
PCIE interface: M.2 Key B+ M.2 Key M
Storage Temp
40° C ~ 85° C
Storage Humidity
5% ~ 90%
Graphics
Graphics
Intel Iris Xe Graphics
Display
Display Outputs
HDMI: HDMI 2.0a
Max resolution up to 4096 x 2160@60 Hz
DisplayPort: DP 1.4a
LVDS: Dual channel 24 bit up to 1920 x 1200@60 Hz
(Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60 Hz
(Connector shared with LVDS)
MultiDisplay: Quad display (Included 2 output from Type-C)
Rear I/O DisplayPort
1 x DP 1.4a
Connectivity
Networking
Controller/ Speed: LAN1: Intel I226IT with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I210IT with 10/100/1000 Mbps
Connector: 2 x RJ-45
Rear I/O Ethernet
1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
Internal Connector Speaker Header
1
Expansion PCIe
1 x PCIe Gen3 x1 (supports up to 10W)
Expansion M.2
1 x M.2 (Key E, 2230) with PCIe Gen3 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (K ey B, 3042/3052) with PCIe Gen3 x1 or SATA3 and USB 3.2 Gen1 and USB 2.0 and SIM for 4G/5G
Expansion SIM Socket
1 x SIM socket connected to M.2 key B
Rear I/O HDMI
1 x HDMI 2.0a
Rear I/O USB
2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
Internal Connector USB
1 x USB 3.2 Gen2 (Type A connector)
2 x USB 2.0 (1 x 2.54 pitch header)
Internal Connector COM
COM1, COM3, COM4 (RS-232/422/485)
Internal Connector GPIO
4 x GPI, 4 x GPO
Internal Connector LVDS
1 (Connector with LVDS/eDP signal, switch by BIOS)
Internal Connector SATA PWR Output
1
Camera & audio
Audio
Interface: Realtek ALC256 HD, High Definition Audio. Line-out, Mic-in
Power & battery
Power
Input PWR: 12~36V DC-In with 4-pin wafer PWR cable
12V DC-In only (BOM option)
Power On: AT/ATX Supported
AT : Directly PWR on as power input ready
ATX : Press button to PWR on after power input ready
Physical & build
Form Factor Dimensions
3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)
Form Factor
SBC (single-board computer)
Security
Security TPM
TPM 2.0 onboard IC
Other
BIOS
AMI SPI 256 Mbit
Watchdog Timer Output
From Super I/O to drag RESETCON#
Watchdog Timer Interval
256 Segments, 0, 1, 2, ...255sec
Operating Temp
40° C ~ 85° C
Operating Humidity
5% ~ 90%

I/O Ports 9

  • High Definition Audio. Line-out
  • Mic-in
  • 2x RJ-45
  • 1x HDMI 2.0a
  • 1x DP 1.4a
  • 2x USB 3.2 Gen2
  • 2x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
  • 1x 1 Gigabit LAN
  • 1x 2.5 Gigabit LAN
