← Back to catalogWhere to buyASRock ↗checking retailers…
ProcessorIntel Core Ultra
Memory48 GB DDR5-5600
Storage6 GB SSD PCIe 4.0
GraphicsIntel Xe LPG Graphics
Specifications 31 normalized
Processor
- Processor
- Intel Core Ultra Processors (Meteor Lake-PS), up to 45W
Memory & storage
- Memory
- Technology: Single Channel DDR5 5600 MHz
Capacity: 48 GB
Socket: 1 x 262-pin SO-DIMM - Storage
- M.2: 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
SATA: 1 x SATA3 (6Gb/s) - Storage Temp
- 40°C ~ 85°C
- Storage Humidity
- 5% ~ 90%
Graphics
- Graphics
- Intel Xe LPG Graphics
Display
- Display Outputs
- HDMI: HDMI 2.1 TMDS
Max resolution up to 4096 x 2160@60 Hz
DisplayPort: DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60 Hz
LVDS: Dual channel 24 bit up to 1920 x 1200@60 Hz
(Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60 Hz
(Connector shared with LVDS)
MultiDisplay: Quad display (Included 1 output from Type-C) - Rear I/O DisplayPort
- 1 x DP 1.4a
Connectivity
- Networking
- Controller/ Speed: LAN1: Intel I226V with 10/100/1000/2500 Mbps
LAN2: Intel I219LM with 10/100/1000 Mbps, supports vPro
Connector: 2 x RJ-45 - Rear I/O Ethernet
- 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN - Internal Connector MIPI Camera Header
- 1
- Internal Connector Speaker Header
- 1
- Expansion M.2
- 1 x M.2 (Key E, 2230) with PCIe Gen4 x1 and USB 2.0 for Wireless
- Rear I/O HDMI
- 1 x HDMI 2.1 TMDS
- Rear I/O USB
- 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, Support DP 1.4a display output)
2 x USB 3.2 Gen2
2 x USB 2.0 - Internal Connector USB
- 4 x USB 2.0 (2 x 2.00 pitch header)
- Internal Connector COM
- COM1, COM2 (RS-232/422/485)
- Internal Connector GPIO
- 4 x GPI, 4 x GPO
- Internal Connector LVDS
- 1 (Connector with LVDS/eDP signal, switch by BIOS)
Camera & audio
- Audio
- Interface: Realtek ALC256 HD, High Definition Audio.
Power & battery
- Power
- Input PWR: 12~28V DC-In with 4-pin wafer PWR
Power On: AT/ATX Supported
AT : Directly PWR on as po wer input ready
ATX : Press button to PWR on after po wer input ready
Physical & build
- Form Factor Dimensions

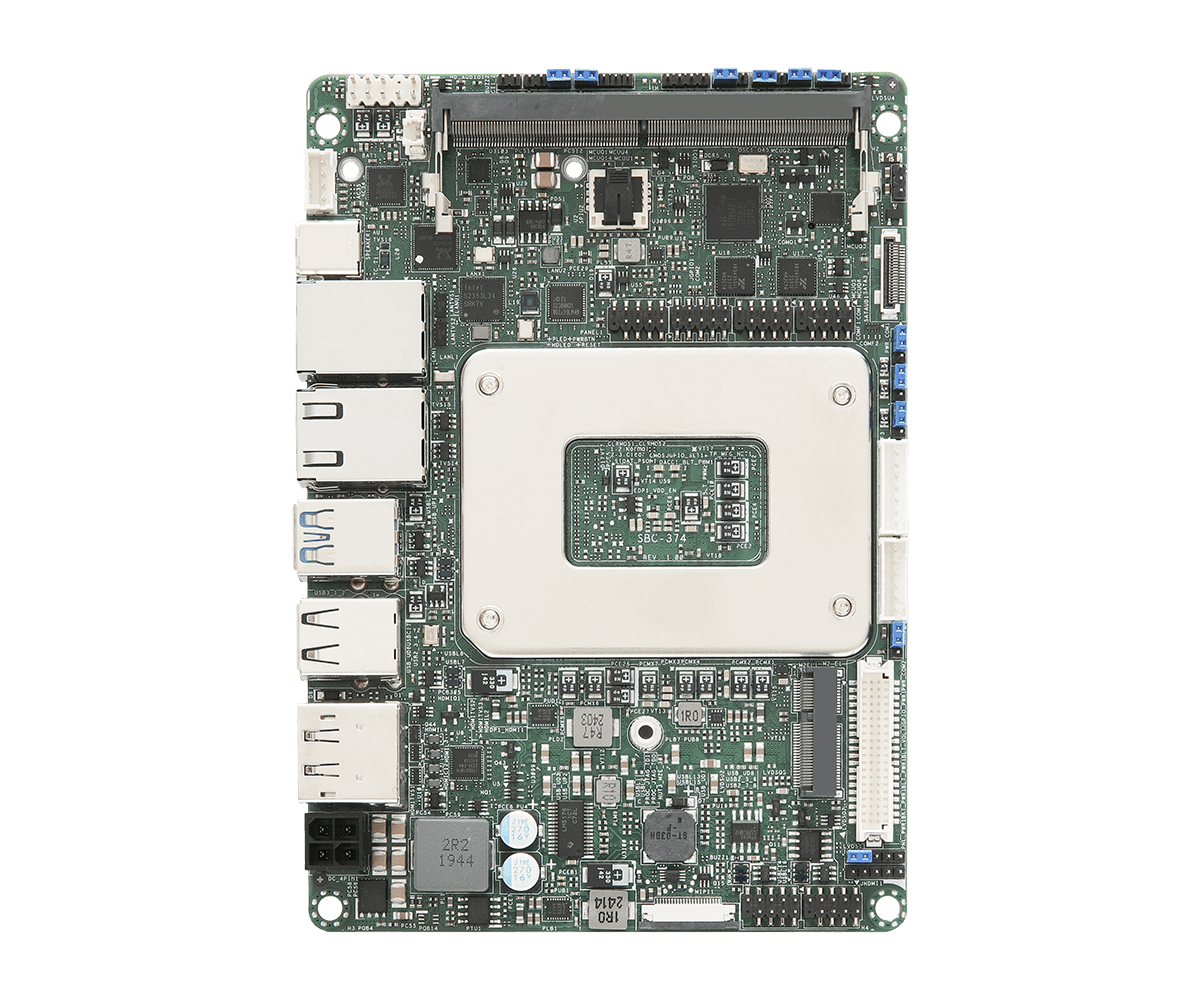

- 3.5"SBC (5.8-in x 4-in x 1.09-in, 14.7 cm x 10.2 cm x 2.77 cm)
- Form Factor
- SBC (single-board computer)
Security
- Security TPM
- TPM 2.0 onboard IC
Other
- Socket
- LGA 1851
- BIOS
- AMI SPI 256 Mbit
- Secure Flash
- AMI SPI 32Mbit (Optional)
- Watchdog Timer Output
- From Super I/O to drag RESETCON#
- Watchdog Timer Interval
- 256 Segments, 0, 1, 2, ...255sec
- Operating Temp
- 20ºC ~ 70ºC
- Operating Humidity
- 5% ~ 90%
I/O Ports 8
- 2x RJ-45
- 1x HDMI 2.1 TMDS
- 1x DP 1.4a
- 1x 1 Gigabit LAN
- 1x 2.5 Gigabit LAN
- 1x USB 3.2 Gen2x2 (Type-C, 5V/3A, Support DP 1.4a display output)
- 2x USB 3.2 Gen2
- 2x USB 2.0
