ASRock

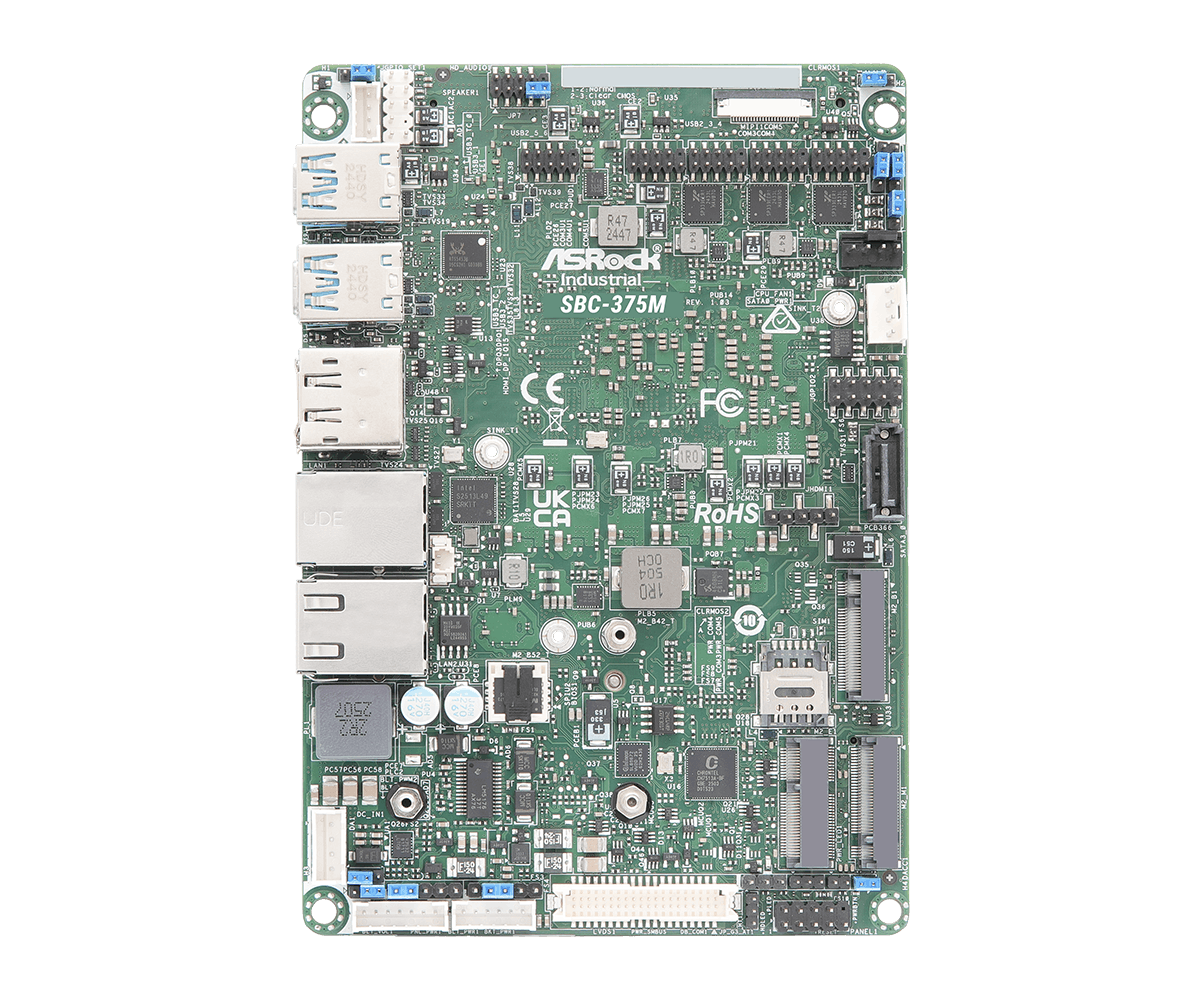

SBC-375M
Model
SBC-375MSKU375MSoCIntel Core Ultra
RAM48 GB DDR5-5600
Storage6 GB SSD
GPIO4 x GPI, 4 x GPO
Ethernet2.5 GbE
Ports2×USB-C · HDMI 2.1 · RJ45
Power in12 to 36 V DC
Form factorSBC (single-board computer)
Specifications 32
Audio
- Audio
- Interface: Realtek ALC256 HD, High Definition Audio.
- Internal Connector Speaker Header
- 1
Environment & compliance
- Storage Temperature
- 40 °C ~ 85 °C
- Storage Humidity
- 5% ~ 90%
- Operating Temperature
- 20ºC ~ 70ºC
- Operating Humidity
- 5% ~ 90%
Display
- Display Outputs
- HDMI: HDMI 2.1 TMDS
Max resolution up to 4096 x 2160@60 Hz
DisplayPort: DP 1.4a
LVDS: Dual channel 24 bit up to 1920 x 1200@60 Hz
(Connector shared with eDP)
eDP: Max resolution up to 1920 x 1080@60 Hz
(Connector shared with LVDS)
MultiDisplay: Quad display (Included 2 output from Type-C) - Internal Connector MIPI Camera Header
- 1
- Rear I/O HDMI
- 1 x HDMI 2.1 TMDS
- Rear I/O DisplayPort
- 1 x DP 1.4a
- Internal Connector LVDS
- 1 (Connector with LVDS/eDP signal, switch by BIOS)
Processor & AI
- Processor
- Intel Core Ultra processors (Meteor Lake-H)
SBC-375M (Ultra5 125H, 4P+8E) - Graphics
- Intel Arc Graphics
Memory & storage
- Memory
- Technology: Single Channel DDR5 5600 MHz
Capacity: 48 GB
Socket: 1 x 262-pin SO-DIMM - Storage
- M.2: 1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD
1 x M.2 (Key M, 2242) with PCIe Gen4 x4 for SSD
SATA: 1 x SATA3 (6Gb/s)
RAID: Intel VMD RAID 0/1
**supported by PCIE interface
PCIE interface: M.2 Key B + M.2 Key M1/2 or 2 - Expansion M.2
- 1 x M.2 (Key E, 2230) with PCIe Gen4 x1, USB 2.0 and CNVi for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G - Internal Connector SATA PWR Output
- 1
Networking
- Networking
- Controller/ Speed: LAN1: Intel I226LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I210AT with 10/100/1000 Mbps
Connector: 2 x RJ-45 - Rear I/O Ethernet
- 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN - Expansion SIM Socket
- 1 x SIM socket connected to M.2 key B
I/O & expansion
- Expansion PCIe
- 1 x PCIe x1 Gen3 (supports up to 10 W)
- Rear I/O USB
- 2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
- Internal Connector USB
- 4 x USB 2.0 (2 x 2.00 mm pitch header)
- Internal Connector COM
- COM3, COM4, COM5 (RS-232/422/485)
- Internal Connector GPIO
- 4 x GPI, 4 x GPO
- Watchdog Timer Output
- From Super I/O to drag RESETCON#
- Watchdog Timer Interval
- 256 Segments, 0, 1, 2, ...255sec
Power
- Power
- Input PWR: 12~36V DC-In with 4-pin wafer PWR cable
12V DC-In only (BOM option)
Power On: AT/ATX Supported
AT : Directly PWR on as po wer input ready
ATX : Press button to PWR on after po wer input ready
Physical
- Form Factor Dimensions
- 3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)
- Form Factor
- SBC (single-board computer)
Software & security
- BIOS
- AMI SPI 256 Mbit
- Security TPM
- TPM 2.0 onboard IC
I/O Ports 7
- 2x RJ-45
- 1x HDMI 2.1 TMDS
- 1x DP 1.4a
- 1x 1 Gigabit LAN
- 1x 2.5 Gigabit LAN
- 2x USB 3.2 Gen2
- 2x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
