BeagleBoard

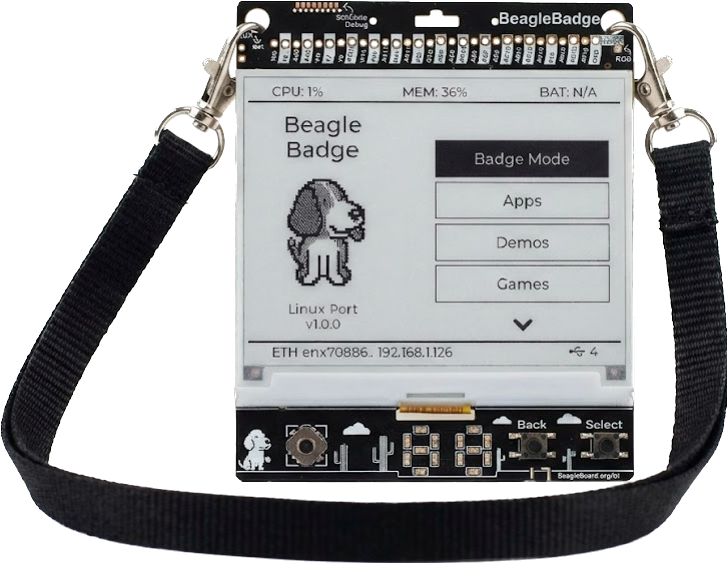

BeagleBadge
SoCArm Cortex A53 · 2C
RAM2 GB LPDDR4-1600
Storage4 GB eMMC
Ports1×USB-C · 1×USB-A
WirelessWi-Fi 6
Specifications 5
Processor & AI
- Processor
- AM62L Sitara SoC, Dual-core 64-bit Arm Cortex-A53 microprocessor subsystem at up to 1.25 GHz Dual Cortex-A53 cluster with 256 KB L2 cache Each A53 core includes 32 KB L1 instruction cache and 32 KB L1 data cache, Dual Cortex-A53 cluster with 256 KB L2 cache
Memory & storage
- Memory
- 2Gb (128M x 16bit)-1600 MHz 3200Mbps LPDDR4
- Storage
- 4 GB eMMC storage
Networking
- Wireless
- BeagleMod CC3301-1216 Module, WiFi6 (2.4 GHz) + Bluetooth 5.2 with MHF4 Connector
LoRaWAN (Wio SX1262 module) with u.FL Connector
I/O & expansion
- Expansion
- Support 4.2" ePaper via 24-pin FPC Connector
MIPI DSI connector for LCD displays
I/O Ports 4
- 4GB eMMC storage
- 256Mb OSPI flash
- USB Type-C for Power input and debug
- 1× USB2.0 Type-A host
