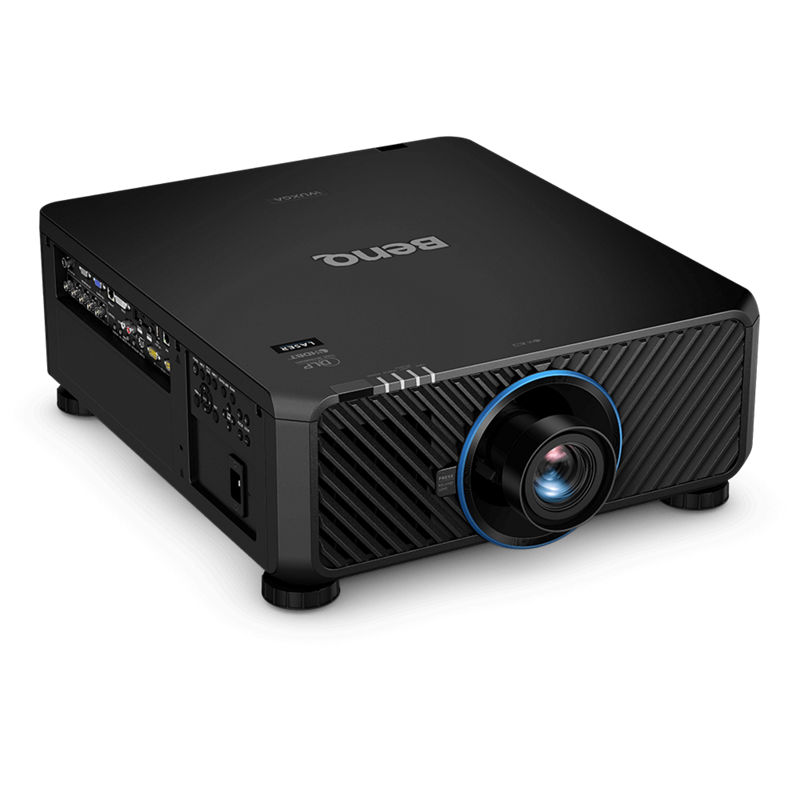

LU9750 8500lms Wuxga Large-Venue Projector

SKULU9750

DisplayWUXGA 1920 x 1200

Weight58.2 lb

Specifications 50

Display

Display Color: 30-bit (1.07 billion colors)
Resolution: WUXGA (1920x1200)
Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Brightness (ANSI lumens): 8500
Native Aspect Ratio: 16:10

Connectivity

LAN (RJ45): (x1)
Network Stand-by Power Consumption: <6W
HDMI in: (x2)
USB Type A: (x1)
USB Type B: USB Type B-1(service)

Camera & audio

Speaker: No Speaker
Audio in (3.5mm Mini Jack): (x1)

Power & battery

Remote Control w/ Battery: RCA025
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 792 W
Stand-by Power Consumption: <0.5W
Power Cord (by region): x1 (1.8M)

Physical & build

Net Weight (kg): 26.4 kg
Dimensions (WxHxD) (mm): 500 × 211 × 587.3

More details

Contrast Ratio (FOFO): 3,000,000:1
Light Source: Laser
Throw Ratio: (Optional Lens) Ultra Short Throw: 0.38 LS1ST3A Short throw 0.77-1.1 LS1ST2A Wide Zoom 2: 1.1-1.3 LS1ST1A Wide Zoom 1: 1.25-1.6 LS1SDA Standard: 1.54-1.93 LS1LT0 Semi long: 1.93-2.9 LS1LT1 Semi long 1: 2.22-3.67 LS1LT2 Long zoom 1: 3.58-5.38 LS1LT3 Long Zoom2: 5.31~8.26
Zoom Ratio: (Optional Lens) Standard: 1.25x, (Optional Lens) Wide Zoom: 1.18x, (Optional Lens) Semi Long: 1.5x, (Optional Lens) Long Zoom 1: 1.67x, (Optional Lens) Ultra Short Throw: Fixed, (Optional Lens) Ultra Wide: 1.25x, (Optional Lens) Semi Long: 1.65x, (Optional Lens) Long Zoom 1: 1.5x, (Optional Lens) Semi Throw: 1.28x
Lens: LS1ST4 Ultra Short Throw (5J.JCY37.001) LS1ST3A Short throw (5J.JPN37.001) LS1ST2A Wide Zoom 2 (5J.JPN37.002) LS1ST1A Wide Zoom 1 (5J.JPN37.003) LS1SDA Standard (5J.JPN37.004) LS1LT0 Semi long (5J.JPN37.005) LS1LT1 Semi long 1 (5J.JAM37.051) LS1LT2 Long zoom 1 (5J.JAM37.031) LS1LT3 Long Zoom2 (5J.JAM37.041)
Projection Offset (Full-Height): 0%
Keystone Adjustment: 2D, Vertical ± 30 degrees
Horizontal ± 30 degrees
Lens Shift Vertical: (Optional Lens)Ultra Short Throw: V: (-3% ~ +7%) H: (-5%- 5%) LS1ST3A Short throw: '-15 ~ +55% Vertical
-5% ~ +5% Horizontal LS1ST2A Wide Zoom 2 '-15 ~ +55% Vertical
-5% ~ +5% Horizontal LS1ST1A Wide Zoom 1: '-15 ~ +55% Vertical
-5% ~ +5% Horizontal LS1SDA Standard '-15 ~ +55% Vertical
-5% ~ +5% Horizontal LS1LT0 Semi long (5J.JPN37.005) '-15 ~ +55% Vertical
-5% ~ +5% Horizontal LS1LT1 Semi long 1 0 ~ +50% Vertical
-10% ~ +10% Horizontal LS1LT2 Long zoom 1: 0 ~ +50% Vertical
-10% ~ +10% Horizontal LS1LT3 Long Zoom2: 0 ~ +50% Vertical
Rec. 709 Coverage: 95%
Picture Modes: 3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1, User 2, Video
Input Lag: 33.4 ms (1080P 60 Hz)
Horizontal Frequency: 15K~135KHz
Vertical Scan Rate: 23~120 Hz
PC in (D-sub 15pin): (x1)
Monitor out (D-sub 15pin): (x1)
HDBaseT (RJ45): (x1)
3D Sync in: (x1)
3D Sync out: (x1)
RS232 in (DB-9pin): (x1)
RS232 out (DB-9pin): (x1)
Wired Remote in (3.5mm Mini Jack): (x1)
Wired Remote out (3.5mm Mini Jack): (x1)
DC 12V Trigger (3.5mm Jack): (x1)
Operating Temperature: 0~40℃
Acoustic Noise (Typ./Eco.)(dB): 38/35
User Manual CD: 1 (12L)
Projection System: DLP

Features

Light Source Life
Installation Guide
Warranty Card (by region)
Lens cover
