BenQ

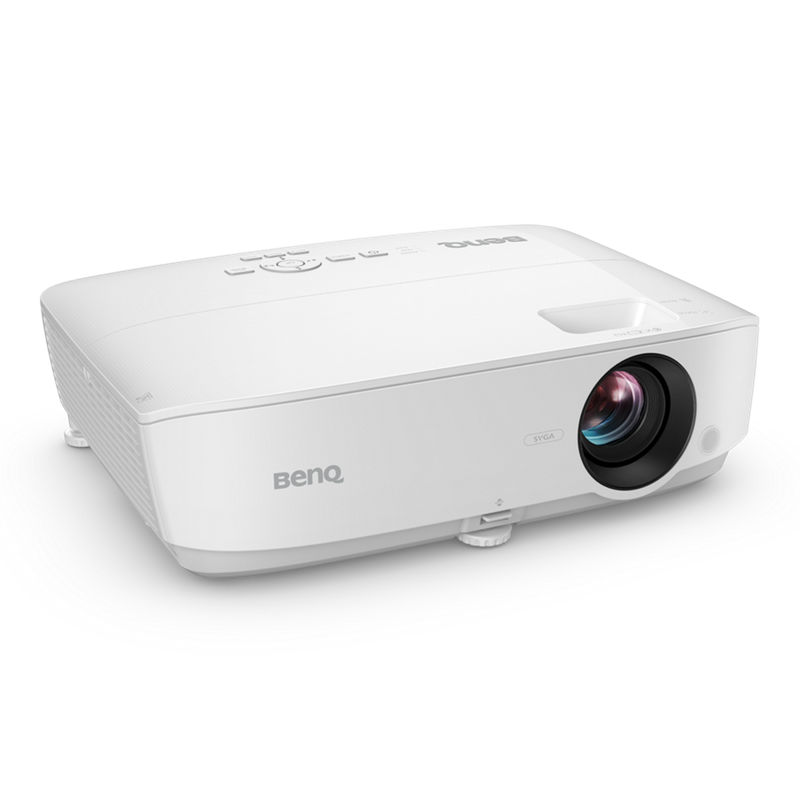

MS536 4000AL SVGA Business Projector with Dual HDMI

Out of stock
SKUMS536-001MPNMS536
Display800 x 600
Weight0.22 lb

Specifications 41

Display
Display Color
30-bit (1.07 billion colors)
Resolution
SVGA (800x600)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Brightness (ANSI lumens)
4000
Native Aspect Ratio
4:3
Connectivity
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.2), HDMI-2 (1.4a/HDCP1.2)
USB Type A
(x1)
USB Type Mini B
(x1)
Camera & audio
Speaker
(x1), 2 W
Audio in (3.5mm Mini Jack)
1
Audio out (3.5mm Mini Jack)
1
Power & battery
Remote Control w/ Battery
RCX015
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
252 W
Stand-by Power Consumption
<0.5W
Power Cord (by region)
x1 (1.8M)
Physical & build
Net Weight (kg)
2.6+/- 100g
Dimensions (WxHxD) (mm)
330.6 × 100.4 × 241.0
More details
Contrast Ratio (FOFO)
20000:1
Light Source
Lamp
Throw Ratio
1.965~2.356
Zoom Ratio
1.2x
Lens
F=2.42-2.62 f=22-25.79
Projection Offset (Full-Height)
106%
Keystone Adjustment
1D, Vertical ± 40 degrees
Picture Modes
3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Horizontal Frequency
15K~102KHz
PC in (D-sub 15pin)
(x2)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
RS232 in (DB-9pin)
(x1)
Operating Temperature
0~40℃
Acoustic Noise (Typ./Eco.)(dB)
32/29
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
DGD5, (Optional)
Quick Start Guide
1 (18L)
Projection System
DLP
Features
  • Light Source Life
  • Warranty Card (by region)
  • Universal Ceiling Mount (CMG3)
