BenQ

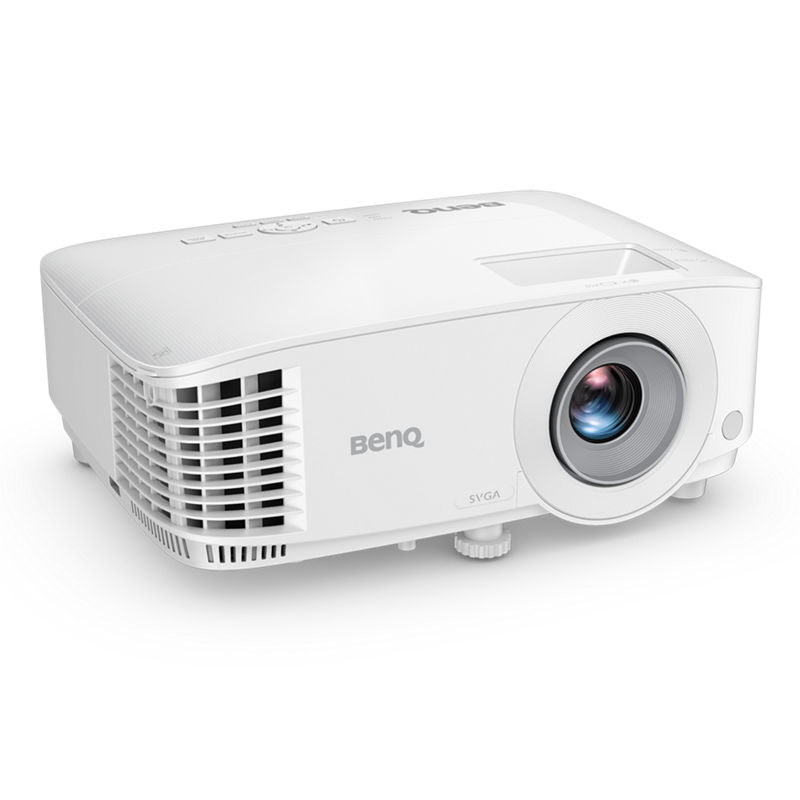

MS560 4000AL SVGA Business Projector with Dual HDMI

Out of stock
SKUMS560-001MPNMS560
Display800 x 600
Weight5.1 lb

Specifications 40

Display
Display Color
30-bit (1.07 billion colors)
Resolution
SVGA (800x600)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Brightness (ANSI lumens)
4000
Native Aspect Ratio
4:3
Connectivity
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4)
USB Type A
(x1)
USB Type Mini B
(x1)
Camera & audio
Speaker
(x1), 10 W
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Power & battery
Remote Control w/ Battery
RCX016
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
260 W/110V
Power Cord (by region)
x1 (1.8M)
Physical & build
Net Weight (kg)
2.3 kg
Dimensions (WxHxD) (mm)
296 × 120 × 221
More details
Contrast Ratio (FOFO)
20,000:1
Light Source
Lamp
Throw Ratio
1.96~2.15
Zoom Ratio
1.1x
Lens
F/# = 2.56 ~ 2.68, f=22~24.1 mm
Projection Offset (Full-Height)
110%
Keystone Adjustment
1D, (Auto) Vertical ± 40 degrees
Picture Modes
3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Horizontal Frequency
15K~102KHz
PC in (D-sub 15pin)
(x1)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
RS232 in (DB-9pin)
(x1)
Operating Temperature
0~40℃
Acoustic Noise (Typ./Eco.)(dB)
34/29
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 21L
Universal Ceiling Mount
CM00G3, (Optional)
Projection System
DLP
Features
  • Light Source Life
  • Warranty Card (by region)
