BenQ

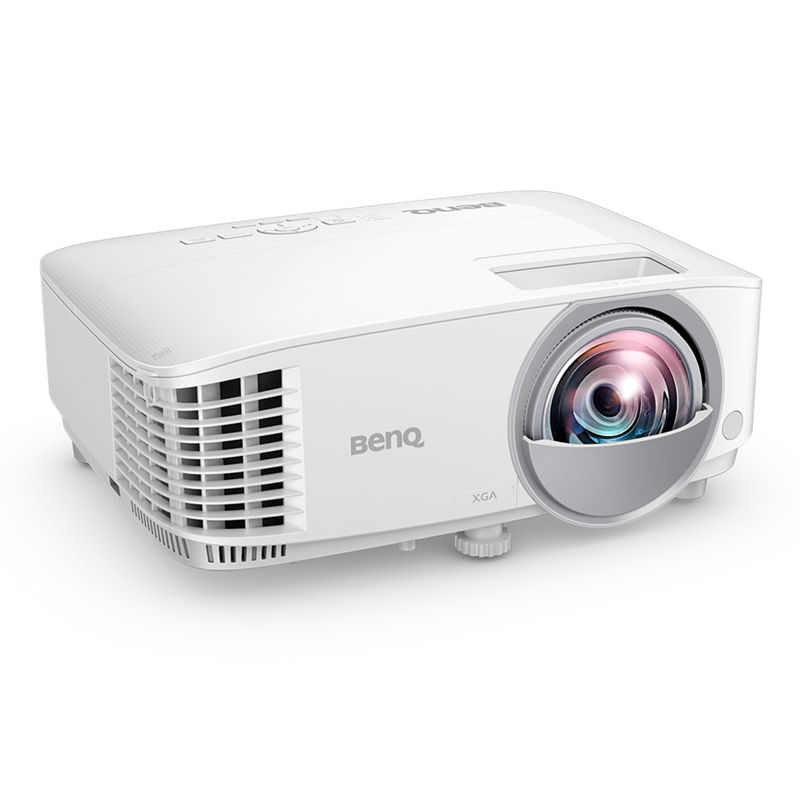

MX825STH 3500AL XGA Short Throw Network Business Projector

Out of stock
SKUMX825STH-001MPNMX825STH
Display1024 x 768
Weight5.7 lb

Specifications 43

Display
Display Color
30-bit (1.07 billion colors)
Resolution
XGA (1024x768)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Brightness (ANSI lumens)
3500
Native Aspect Ratio
4:3
Connectivity
LAN (RJ45)
(x1)
HDMI in
(x2), HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4/MHL)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A)
USB Type Mini B
(x1), USB Type Mini B-1(service/Page up&down)
Camera & audio
Speaker
(x1), 10 W
Audio in (3.5mm Mini Jack)
(x2)
Audio out (3.5mm Mini Jack)
(x1)
Power & battery
Remote Control w/ Battery
RCE013
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
260
Power Cord (by region)
x1 (3.0M)
Physical & build
Net Weight (kg)
2.6 kg
Dimensions (WxHxD) (mm)
296 × 120 × 239
More details
Contrast Ratio (FOFO)
20,000:1
Light Source
Lamp
Throw Ratio
0.61
Zoom Ratio
Fixed
Lens
F/# = 2.6,f = 6.9 mm
Projection Offset (Full-Height)
115%
Keystone Adjustment
1D, Vertical ± 30 degrees
Picture Modes
3D, Bright, Cinema, Presentation, sRGB, User 1, User 2
Input Lag
34 ms (1080p@60 Hz)
Horizontal Frequency
15K~102KHz
PC in (D-sub 15pin)
(x2)
Monitor out (D-sub 15pin)
(x1)
Composite Video in (RCA)
(x1)
S-Video in (Mini DIN 4pin)
(x1)
RS232 in (DB-9pin)
(x1)
Operating Temperature
0~40℃
Acoustic Noise (Typ./Eco.)(dB)
33/29
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 18L
Anti-dust Filter
(Optional), All SKU
Wall Mount
(Optional), WM06G3
Projection System
DLP
Features
  • Light Source Life
  • Carry Bag (5J.J3T09.001 (optional)
  • Warranty Card (by region)
