BenQ

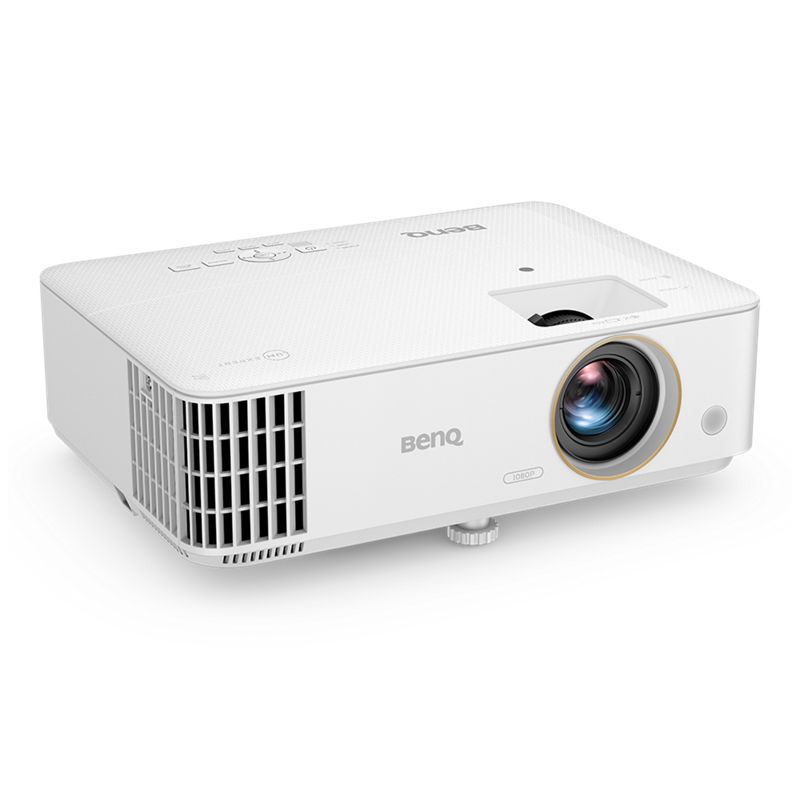

TH685 1080p HDR 3500lm Home Theater Projector

Out of stock
SKUTH685-001MPNTH685GTIN00840046042998
DisplayFHD 1920 x 1080
Weight6.2 lb

Specifications 43

Display
Display Color
30-bit (1.07 billion colors)
Resolution
1080P (1920x1080)
Resolution Support
VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Brightness (ANSI lumens)
3500
Native Aspect Ratio
16:9
Connectivity
HDMI in
(x2), HDMI-1 (2.0b/HDCP2.2), HDMI-2 (2.0b/HDCP2.2)
USB Type A
(x1), USB Type A-1 (2.0/Power Supply1.5A)
Camera & audio
Speaker
(x1), 5 W Chamber
Audio in (3.5mm Mini Jack)
(x1)
Audio out (3.5mm Mini Jack)
(x1)
Power & battery
Remote Control w/ Battery
RCV013
Power Supply
AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V)
297 W/110V
Stand-by Power Consumption
<0.5W
Power Cord (by region)
x1 (1.8M)
Physical & build
Net Weight (kg)
2.79 kg
Net Weight (lb)
6.15 lb
Dimensions (WxHxD) (mm)
312 × 110 × 225
Dimensions (WxHXD) (inch)
12.2 × 4.3 × 8.8
More details
Contrast Ratio (FOFO)
10,000:1
Light Source
Lamp
Throw Ratio
1.127~1.46
Zoom Ratio
1.3x
Lens
F/#=1.94~2.07
f=11.9~15.5 mm
Projection Offset (Full-Height)
105%
Keystone Adjustment
1D, (Auto) Vertical ± 40 degrees
Rec. 709 Coverage
95%
Picture Modes
3D, Bright, Cinema, Game, HDR, HLG, Living Room, Sports, User 1, User 2
Input Lag
16.7 ms (1080P 60 Hz), 33.4 ms (4K 60 Hz) *downscaling to 1080p, 8.3 ms (1080P 120 Hz)
Horizontal Frequency
15K~102KHz
PC in (D-sub 15pin)
(x1), PC in-1 (shared with component video)
Monitor out (D-sub 15pin)
(x1)
RS232 in (DB-9pin)
(x1)
Operating Temperature
0~40℃
Acoustic Noise (Typ./Eco.)(dB)
35/29 dB
Carry Bag
5J.J3T09.001, (Optional)
VGA(D-sub 15pin) Cable
1 (1.5m)
3D Glasses
DGD5, (Optional)
Quick Start Guide
(x1) 21L
Universal Ceiling Mount
CM00G3, (Optional)
Projection System
DLP
Features
  • Light Source Life
  • Warranty Card (by region)
