Corsair

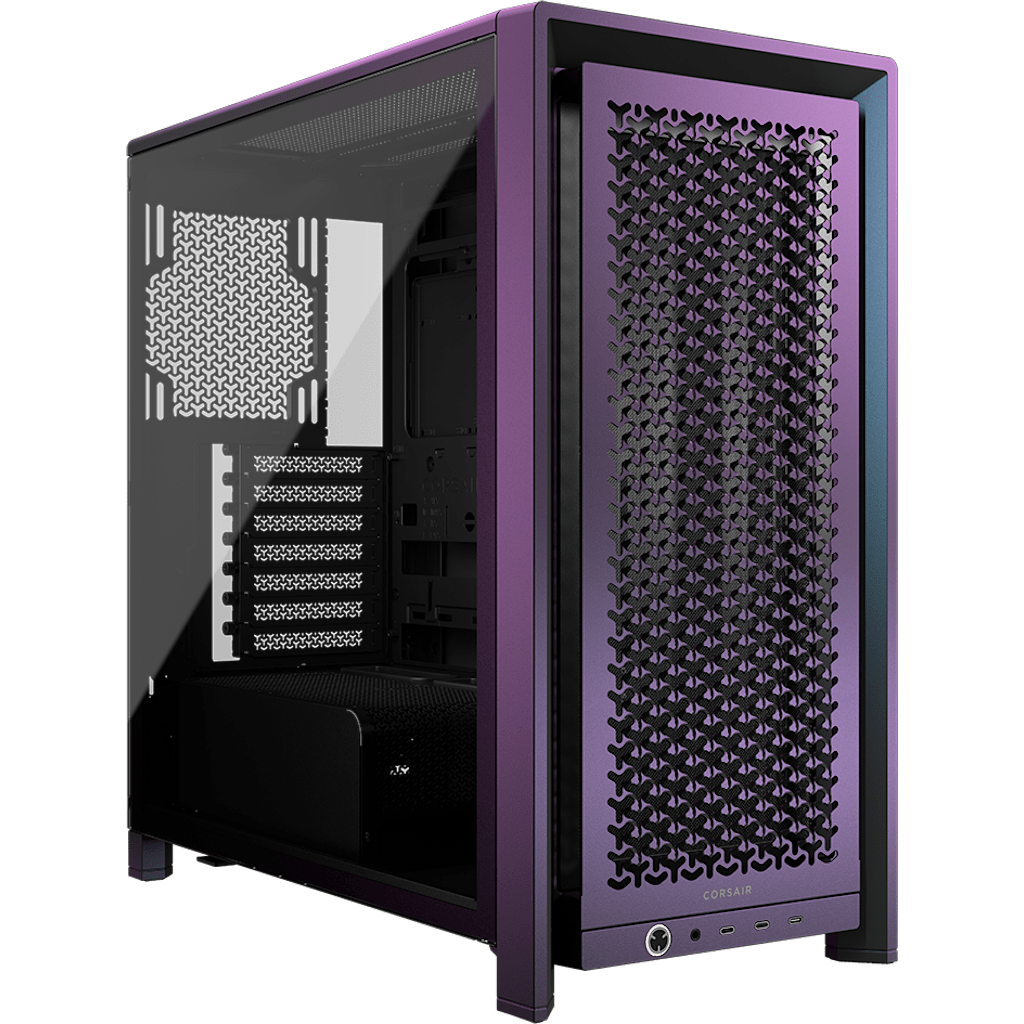

Frame 4000D Vault Series Modular Mid-Tower PC Case – Galaxy
SKU
CC-9011342-WWMPNCC-9011342GTIN0840440417903ASINB0GLHWBPBBWeight26.5 lb
Specifications 37 normalized
Processor
- Maximum CPU Cooler Height
- 170 mm
Graphics
- Maximum GPU Length
- 430 mm
Display
- Right Side Panel
- Steel
- Left Side Panel
- Tempered Glass
Connectivity
- Reverse Connector Motherboard Support
- Yes
- Case Expansion Slots
- 7 Horizontal or 3 Vertical
- Front IO Motherboard Connections
- 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Power & battery
- Case Power Supply
- ATX
- Maximum PSU Length
- 220 mm
Physical & build
- Weight
- 12 kg
- Color
- BLACK
- Case Size
- Mid-Tower
- Material
- Steel, Tempered Glass, Plastic
- Fan Support - Top
- 3x 120 mm, 2x 140 mm
- Fan Support - Front
- 3x 120 mm, 2x 140 mm, 2x 200 mm
- Fan Support - Bottom
- 3x 120 mm
- Fan Support - Side
- 3x 120 mm, 2x 140 mm
- Fan Support - Rear
- 1x 120 mm, 1x 140 mm
Operating system & software
- Included Fans
- No Fans Included
- RapidRoute Included
- No
Warranty & support
- Case Warranty
- 2 Year
- Vertical Mount Support
- Supported (Riser Card Sold Separately)
- Case Supported
- Mini-ITX
MicroATX
ATX
E-ATX (305 mm x 277 mm) - Radiator Support - Top
- 360 mm, 280 mm, 240 mm
- Radiator Support - Front
- 360 mm, 280 mm, 240 mm
- Radiator Support - Bottom
- None
- Radiator Support - Side
- 360 mm, 280 mm, 240 mm
- Radiator Support - Rear
- 140 mm, 120 mm
Other
- Radiator Compatibility
- 120 mm,140 mm,240 mm,280 mm,360 mm
- Case Height
- 486
- Case Length
- 490
- Case Width
- 239
- Case Window
- Tempered Glass
- Compatible Liquid Coolers
- H60, H100, H115, H150, NAUTILUS, TITAN
- Case Front IO
- (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
- Dust Filtration
- Yes
- Cable Routing Space
- 37 mm
