Corsair

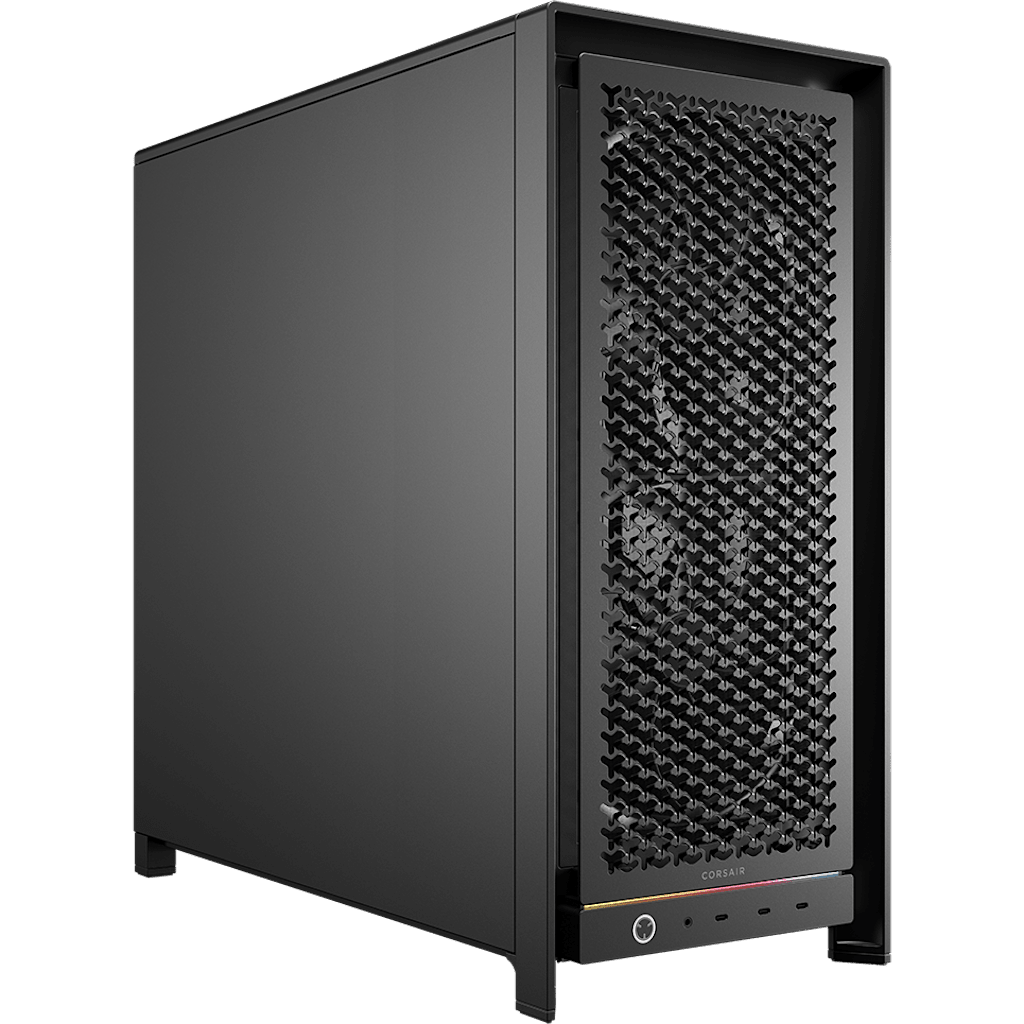

Frame 5000D Workstation Modular Mid-Tower PC Case
SKU
CC-9011330-WWMPNCC-9011330GTIN0840440408000Weight33.1 lb
Specifications 36
Processor
- Maximum CPU Cooler Height
- 175 mm
- Front IO Motherboard Connections
- 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio
Graphics
- Maximum GPU Length
- 450 mm
Display
- Right Side Panel
- Steel
- Left Side Panel
- Tempered Glass
Connectivity
- Case Expansion Slots
- 8 horizontal + 3 vertical
Power & battery
- Case Power Supply
- ATX
Physical & build
- Weight
- 15 kg
- Case Warranty
- 2 Year
- Color
- BLACK
- Case Size
- Mid-Tower
- Included Fans
- RS Series
- Case Supported
- Mini-ITX
MicroATX
ATX
E-ATX (305 mm x 277 mm)
SSI-CEB
SSI-EEB - Case Height
- 542
- Case Length
- 556
- Case Width
- 250
- Material
- Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic
- Case Window
- Tempered Glass
- Case Front IO
- (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out
- Fan Support - Top
- 3x 120 mm, 3x 140 mm
- Fan Support - Front
- 3x 120 mm, 3x 140 mm, 2x 200 mm
- Fan Support - Bottom
- 4x 120 mm
- Fan Support - Side
- None
- Fan Support - Rear
- 1x 120 mm, 1x 140 mm
Warranty & support
- Vertical Mount Support
- Supported (Riser Card Sold Separately)
- Radiator Support - Top
- 420 mm, 360 mm, 280 mm, 240 mm
- Radiator Support - Front
- 360 mm, 280 mm, 240 mm
- Radiator Support - Bottom
- None
- Radiator Support - Side
- None
- Radiator Support - Rear
- 140 mm, 120 mm
Cooling
- Max CPU cooler height
- 175 mm
More details
- Compatible Liquid Coolers
- H60, H100, H115, H150, NAUTILUS, TITAN
- Cable Routing Space
- 42 mm
Features
- Reverse Connector Motherboard Support
- Dust Filtration
- RapidRoute Included
