Grandstream

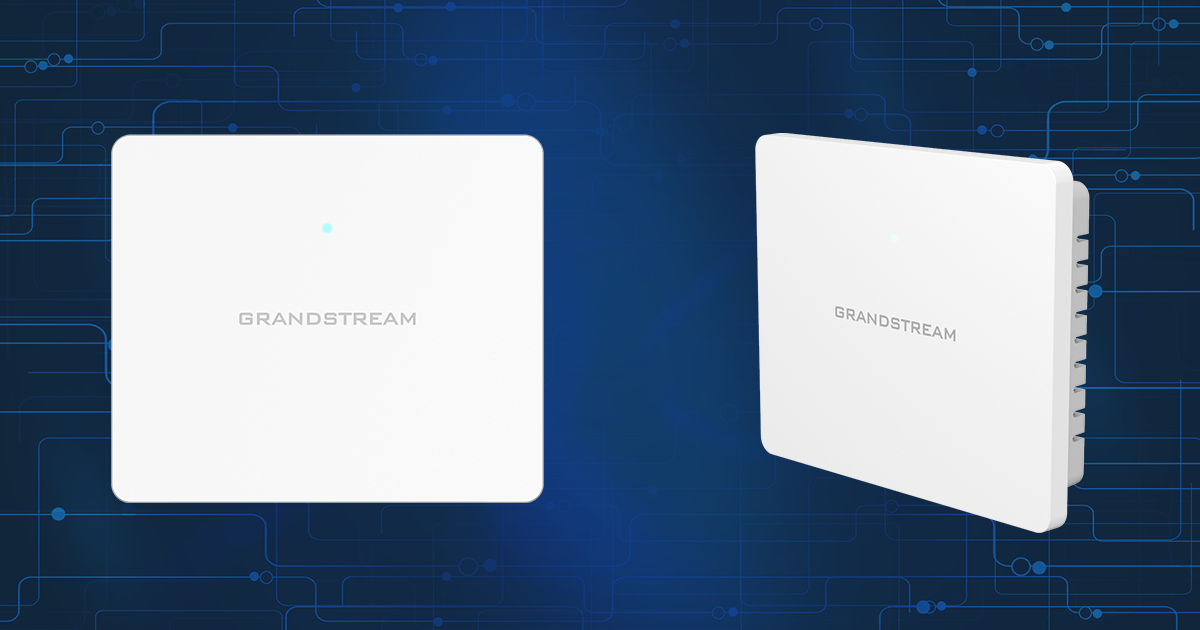

GWN7603
MPN
GWN7603PoE budgetSupports PoE 802.3af/ 802.3at
Switching capacity867Mbps (2x2:2 MU-MIMO)
Wi-FiWi-Fi 5
Form factorIndoor wall mount
Specifications 13
Ports & interfaces
- Network Interfaces
- 1 x 10/100/1000M uplink Ethernet port with POE/POE+ 2 x 10/100/1000M Ethernet port with PSE 1 x 10/100/1000M Ethernet port
Performance
- 5G Throughput
- 867Mbps (2x2:2 MU-MIMO)
- 2.4G Throughput
- 300Mbps (2x2:2 MU-MIMO)
400 Mbps with 256-QAM
Power & PoE
- Po E/Po E+
- Supports PoE 802.3af/ 802.3at
PSE max output per port: 12 W
Max Consumption: 6.5 W (Excluding PoE Output)
Wireless
- Wi-Fi and Security Systems
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device - Wi-Fi Standards
- IEEE 802.11a/b/g/n/ac (Wave-2)
- Antennas
- 2 dual band internal antennas
Management & software
- Client Devices
- 100+
Physical & environment
- Dimensions
- 135 mm x 115 mm x 30 mm
- Mounting
- Indoor wall mount
- Temperature
- 0 °C to 45 °C
More details
- Range
- Up to 100 Meters
- SSIDs
- 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
