Grandstream

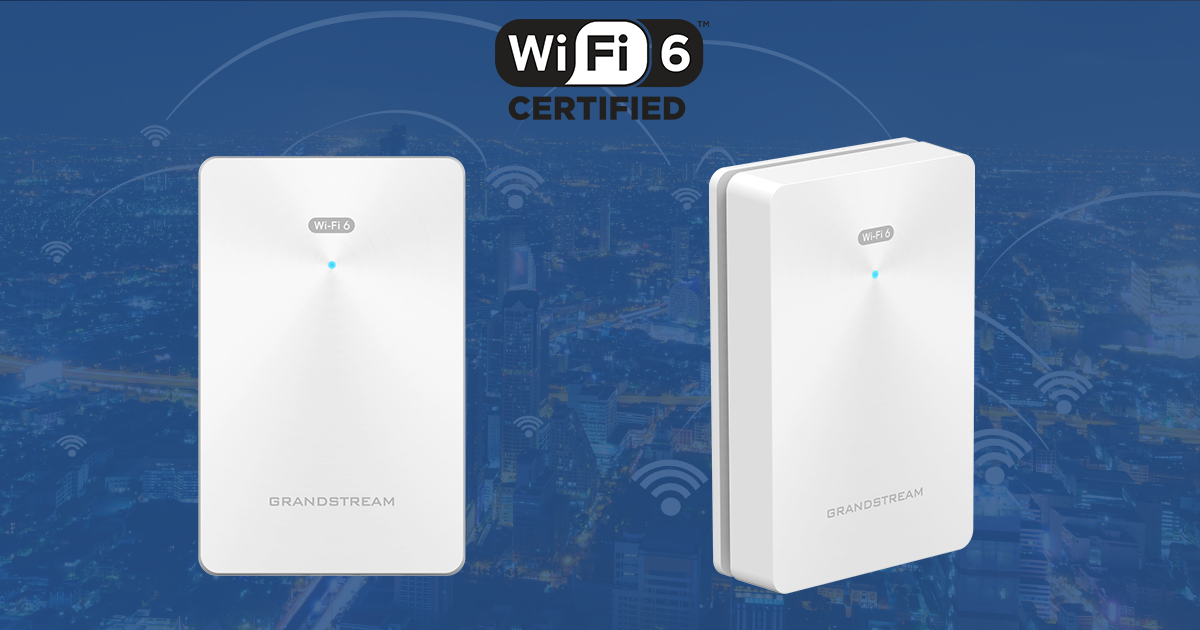

GWN7661
MPN
GWN7661PoE budgetSupports 802.3az, PoE 802.3af/ 802.3at
Switching capacity1201Mbps (2x2:2 MU-MIMO)
Wi-FiWi-Fi 6
Form factorWall Mountable
Weight0.41 lb
Specifications 13
Ports & interfaces
- Network Interfaces
- 1x 10/100/1000M uplink Ethernet port with PoE/PoE+, 2x 10/100/1000M Ethernet ports with PSE, 1x 10/100/1000M Ethernet port
Performance
- 5G Throughput
- 1201Mbps (2x2:2 MU-MIMO)
- 2.4G Throughput
- 573.5Mbps (2x2:2 MU-MIMO)
Power & PoE
- Po E/Po E+
- Supports 802.3az, PoE 802.3af/ 802.3at
PSE Maximum Output Per Port: 6 W
Maximum Power Consumption: 25 W
Wireless
- Wi-Fi and Security Systems
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device - Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac/ax
- Antennas
- 4 single band internal antennas
Management & software
- Client Devices
- 500+
Physical & environment
- Dimensions
- 135 mm(L)x86 mm(W)x38.5 mm(H)
Unit Weight: 185g - Mounting
- Wall Mountable
- Temperature
- -10 °C to 50 °C
More details
- Range
- Up to 100 Meters
- SSIDs
- 32 SSIDs total, 16 per radio (2.4 GHz & 5 GHz)
