Grandstream

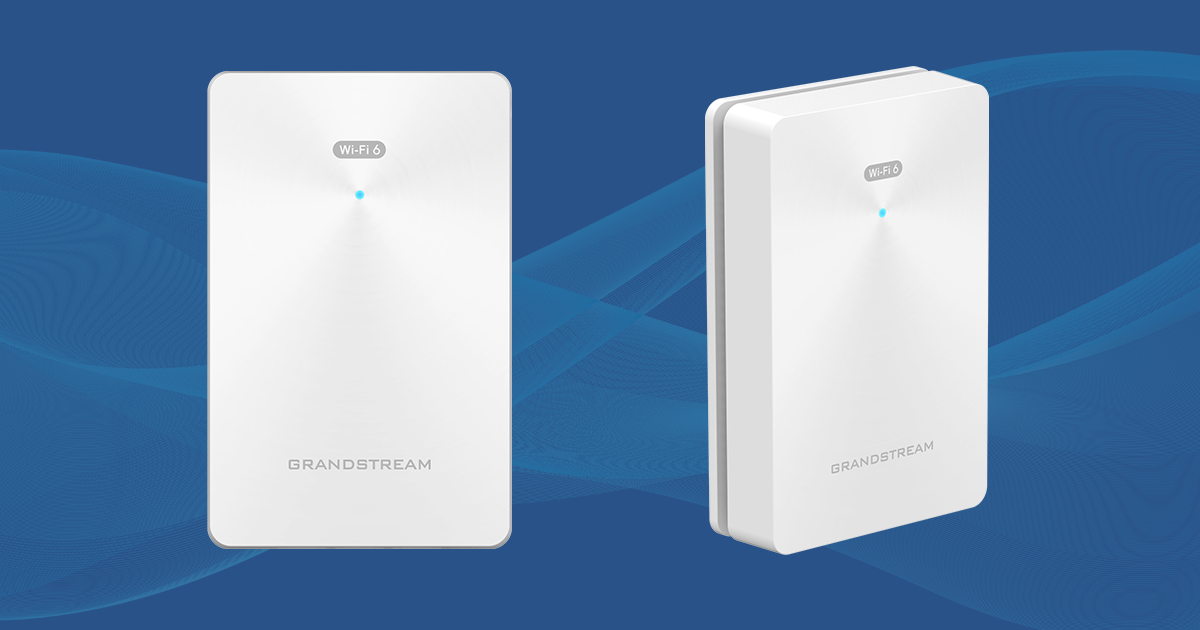

GWN7661E
MPN
GWN7661EPoE budgetSupport 802.3az PoE 802.3af/ 802.3at
Switching capacity2.4Gbps (3x3:2 MU-MIMO)
Wi-FiWi-Fi 6
Form factorIn-Wall Mountable
Specifications 13
Ports & interfaces
- Network Interfaces
- 1x 10/100/1000M uplink Ethernet port with PoE/PoE+ 2x 10/100/1000M Ethernet port with PSE 1x 10/100/1000M Ethernet port
Performance
- 5G Throughput
- 2.4Gbps (3x3:2 MU-MIMO)
- 2.4G Throughput
- 573.5Mbps (2x2:2 MU-MIMO)
Power & PoE
- Po E/Po E+
- Support 802.3az PoE 802.3af/ 802.3at
The maximum output of all PSE ports is 12 W
Maximum Power Consumption: 25 W
Wireless
- Wi-Fi and Security Systems
- WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES)
WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device - Wi-Fi Standards
- IEEE 802.11 a/b/g/n/ac/ax
- Antennas
- 2x dual-band internal antennas,1x 5G internal antenna
Management & software
- Client Devices
- Up to 256
Physical & environment
- Dimensions
- 135 mm(L) x 86 mm(W) x 38.5 mm(H)
- Mounting
- In-Wall Mountable
- Temperature
- 0 °C to 45 °C
More details
- Range
- Up to 100 Meters
- SSIDs
- 32 SSIDs total, 16 per radio (2.4 GHz & 5 GHz)
