HYSTOU

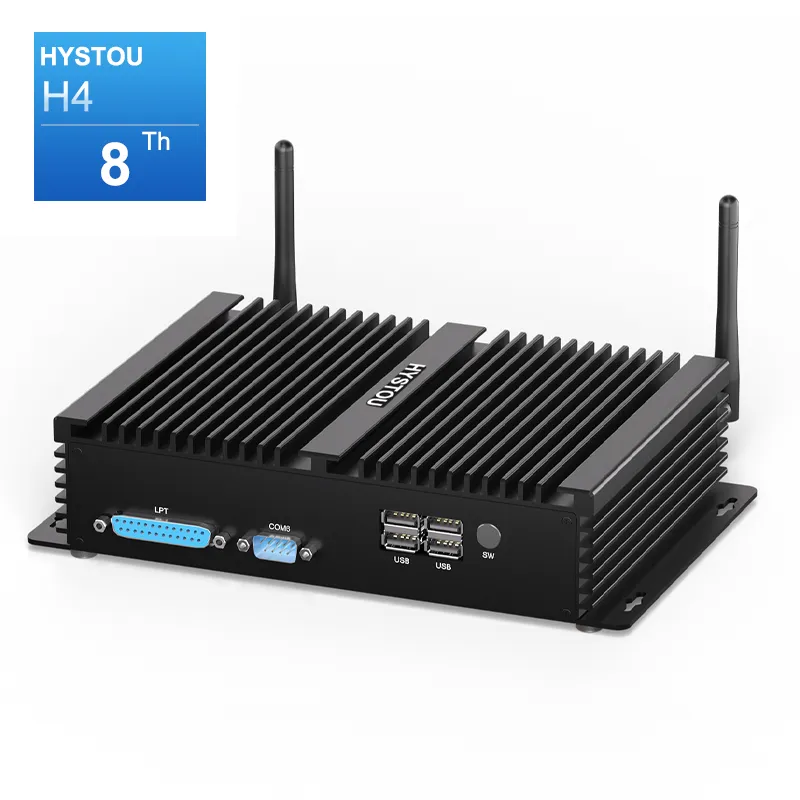

Industrial Fanless Mini PC with 6 COM Ports | Hystou H4 Triple Display

CTO
ProcessorIntel Core i5 8250U
Memory64 GB DDR4
GraphicsIntel UHD Graphics 620
OSWin10Win11Linux
Weight3.5 lb

Specifications 9 normalized

Processor
Processor
Intel Core i5-8250U
Memory & storage
Memory
2x DDR4 260-pin SODIMM, supports up to 64 GB
Storage
1×M.2 2240/2260/2280 PCIe 3.0 x2/SATA, supporting NVMe/SATA protocol SSDs
1×MSATA
1×SATA 3.0, for installing 2.5-inch HDD/SSD
Graphics
Graphics
Intel UHD Graphics 620
Connectivity
Networking
2×Gigabit Ethernet
Default WiFi5 Bluetooth 4.2
Optional WIFI6 Bluetooth 5.2
Power & battery
Power Supply
12V 5A/6A
Physical & build
Weight
1.6 kg (net), 2.2 kg (with accessories)
Dimensions
238×182×52 mm
Operating system & software
Operating System
Win10Win11Linux

I/O Ports 9

  • 4x USB 2.0
  • 4x USB 3.0
  • 1x 3.5mm Audio Out
  • 1x 3.5mm Audio In
  • 1x HDMI 4K 60Hz
  • 1x DP*1.2 4K 60Hz
  • 2x Gigabit RJ45 LAN Port
  • 1x DC (5.5*2.5mm)
  • RS232 or 4 RS232 + 2 RS485

Configurator · 1 group · 38 options · live

Configured total: $412.46 · base $412.46 · deltas vs as-shipped config
CPU + RAM + SSD 38 options
✓ Intel Core i5-8250Uincl.
Intel Core i7-8650U+$116.95
Intel Core i5-8250U · 8GB DDR4 · 128GB SSD+$149.16
Intel Core i5-8250U · 8GB DDR4 · 256GB SSD+$196.78
Intel Core i5-8250U · 16GB DDR4 · 128GB SSD+$217.79
Intel Core i7-8650U · 8GB DDR4 · 128GB SSD+$244.40
Intel Core i5-8250U · 8GB DDR4 · 512GB SSD+$261.21
Intel Core i5-8250U · 16GB DDR4 · 256GB SSD+$265.41
Intel Core i5-8250U · 8GB DDR4 · 128GB SSD+1TB HDD+$269.61
Intel Core i7-8650U · 8GB DDR4 · 256GB SSD+$292.02
Intel Core i7-8650U · 16GB DDR4 · 128GB SSD+$313.03
Intel Core i5-8250U · 8GB DDR4 · 256GB SSD+1TB HDD+$317.23
Intel Core i5-8250U · 16GB DDR4 · 512GB SSD+$329.84
Intel Core i5-8250U · 16GB DDR4 · 128GB SSD+1TB HDD+$338.24
Intel Core i5-8250U · 32GB DDR4 · 128GB SSD+$343.84
Intel Core i7-8650U · 8GB DDR4 · 512GB SSD+$356.45
Intel Core i7-8650U · 16GB DDR4 · 256GB SSD+$360.65
Intel Core i7-8650U · 8GB DDR4 · 128GB SSD+1TB HDD+$364.85
Intel Core i5-8250U · 8GB DDR4 · 512GB SSD+1TB HDD+$381.66
Intel Core i5-8250U · 16GB DDR4 · 256GB SSD+1TB HDD+$385.86
Intel Core i5-8250U · 32GB DDR4 · 256GB SSD+$391.46
Intel Core i7-8650U · 8GB DDR4 · 256GB SSD+1TB HDD+$412.47
Intel Core i7-8650U · 16GB DDR4 · 512GB SSD+$425.08
Intel Core i7-8650U · 16GB DDR4 · 128GB SSD+1TB HDD+$433.48
Intel Core i7-8650U · 32GB DDR4 · 128GB SSD+$439.08
Intel Core i5-8250U · 16GB DDR4 · 512GB SSD+1TB HDD+$450.29
Intel Core i5-8250U · 32GB DDR4 · 512GB SSD+$455.89
Intel Core i5-8250U · 32GB DDR4 · 128GB SSD+1TB HDD+$464.29
Intel Core i7-8650U · 8GB DDR4 · 512GB SSD+1TB HDD+$476.90
Intel Core i7-8650U · 16GB DDR4 · 256GB SSD+1TB HDD+$481.10
Intel Core i7-8650U · 32GB DDR4 · 256GB SSD+$486.70
Intel Core i5-8250U · 32GB DDR4 · 256GB SSD+1TB HDD+$511.91
Intel Core i7-8650U · 16GB DDR4 · 512GB SSD+1TB HDD+$545.52
Intel Core i7-8650U · 32GB DDR4 · 512GB SSD+$551.13
Intel Core i7-8650U · 32GB DDR4 · 128GB SSD+1TB HDD+$559.53
Intel Core i5-8250U · 32GB DDR4 · 512GB SSD+1TB HDD+$576.34
Intel Core i7-8650U · 32GB DDR4 · 256GB SSD+1TB HDD+$607.15
Intel Core i7-8650U · 32GB DDR4 · 512GB SSD+1TB HDD+$671.57
