Kontron

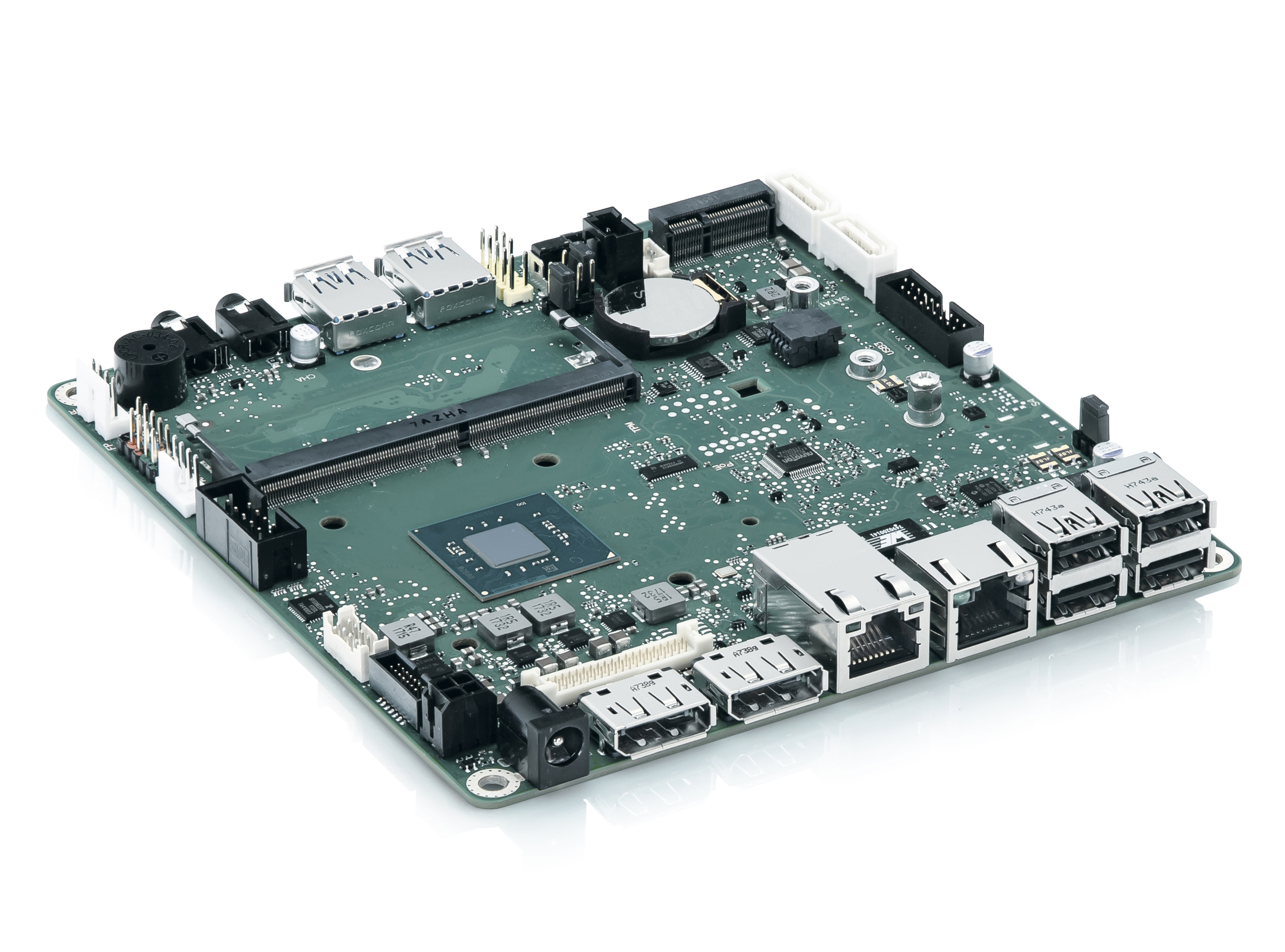

Kontron D3544-S mSTX
SoCIntel Celeron
Ethernet1 GbE
Power in8 to 24 V DC
Specifications 26
Audio
- Audio Controller
- Realtek ALC671
- Audio
- 5.1-channel
High Definition Audio Codec
Environment & compliance
- Cooling
- 1x PWM-Fan
Passive Cooling supported - Operating Temperature
- 0 °C-60 °C
- Operating Humidity
- 5%-85%
- Certifications
- cTÜVus acc. IEC62368-1 (upon request), CE Class B, FCC-B verified
Display
- Display
- 2x DP V1.2a
Processor & AI
- Processor
- Intel Celeron Processor
J4005/J4105 & Intel Pentium Silver Processor J5005 - Chipset
- SoC
- Graphics Controller
- Integrated Intel UHD Graphics 600/605
Memory & storage
- Main Memory
- 1x DDR4 2400 SO-DIMM up to 16 GB
- SATA
- 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI
Networking
- Networking
- 1x Intel i210 with 10/100/1000 MBit/s,
1x Realtek RTL8111G with 10/100/1000 Mbit/s
I/O & expansion
- Power connector
- External / Internal DC-In
- USB
- 4x USB 2.0, 1x USB 2.0 (by header)
2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header) - Serial
- 1x RS-232 (limited feature set, by header)
1x RS-232/RS-422/RS-485 (by header) - Expansion
- 1x M.2 Key B socket (2242/2260/2280)
PCIe/SATA, 1 lane
1x M.2 Key-E (2230) - Watchdog
- 2Level HW Watchdog (BIOS BOOT / OS)
Power
- Input Voltage
- 8V-24V
Physical
- Mechanical Dimensions
- Mini-STX (140 × 148 mm / 5.5" x 5.8")
Software & security
- Operating System
- Windows 10
Linux-64 - Available I/Os
- 1x 8Bit GPIO (by header)
- BIOS
- AMI Aptio 5.x (UEFI) BIOS
More details
- Real Time Clock
- integrated
CMOS Battery buffered - Kontron product group
- Motherboards
- Kontron product family
- Mini-STX
