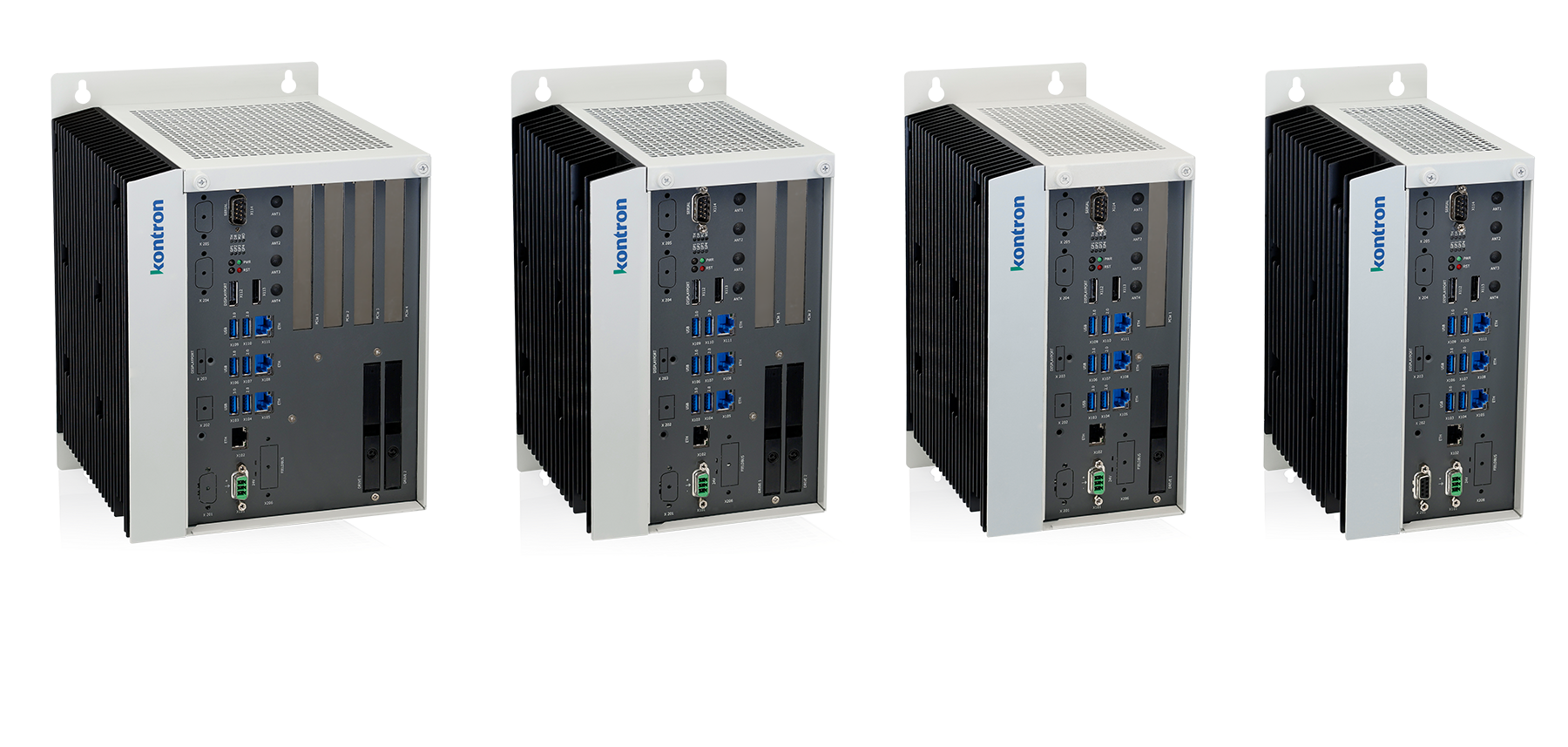

Kontron KBox C-104-RPL

Processor13th Gen Intel via COM Express type 6 modules:

GraphicsIntel Iris Xe

Specifications 14

Processor

Processor: 13th Gen Intel processors via COM Express type 6 modules:
- Core i7-13800HRE: 14x 2.5 GHz, 24 MB cache, Intel TCC and TSN
- Core i7-13800HE: 14x 2.5 GHz, 24 MB cache
- Core i5-13600HRE: 12x 2.7 GHz, 18 MB cache, Intel TCC and TSN
- Core i5-13600HE: 12x 2.7 GHz, 18 MB cache
- Core i3-13300HRE: 8x 2.1 GHz, 12 MB cache, Intel TCC and TSN
- Core i3-13300HE: 8x 2.1 GHz, 12 MB cache

Memory & storage

Main Memory: DDR5 5600 RAM, up to 64 GB, 2x SODIMM

Graphics

Graphics: Intel Iris Xe Graphics (on i5/i7 models)
Intel UHD Graphics (on i3 models)

Connectivity

Networking: 4x 2.5 GbE with TSN support, WOL
USB: 3x USB 3.2, 3x USB 2.0
Expansion: KBox C-104-RPL-0: 1x M.2 3052 B-Key for LTE/5G expansion w. SIM card socket
1x mPCIe for Fieldbus NVRAM or WI-FI expansion
KBox C-104-RPL-1: 1x PCIe x4, 1x M.2 3052 B-Key for LTE/5G expansion w. SIM card socket
1x mPCIe for Fieldbus, NVRAM or WI-FI expansion
KBox C-104-RPL-2: 2x PCIe x4 or 1x PCIe x4 + 1x PCI,1x M.2 3052 B-Key for LTE/5G expansion w. SIM card socket
KBox C-104-RPL-4: 2x PCIe x4 + 2x PCIe x1, 1x M.2 3052 B-Key for LTE/5G expansion w. SIM card socket

Power & battery

Power Supply: 24 VDC (17-36 VDC), up to 20 ms hold-up

Physical & build

Dimensions (H x W x D): KBox C-104-RPL-0: Mounting 290 × 117 × 210 mm (11.42" x 4.61" x 8.27")
236 × 117 × 210 mm
(9.29" x 4.61" x 8.27")
KBox C-104-RPL-1: 290 × 130 × 210 mm
(11.42" x 5.12" x 8.27")
w/o Mounting Brackets 236 × 130 × 210 mm (9.29" x 5.12" x 8.27")
KBox C-104-RPL-2: 290 × 155 × 210 mm (11.42" x 6.1" x 8.27")
236 × 155 × 210 mm (9.29" x 6.1" x 8.27")
KBox C-104-RPL-4: 290 × 195 × 210 mm (11.42" x 7.68" x 8.27")
w/o Mounting Brackets 236 × 195 × 210 mm (9.29" x 7.68" x 8.27")
Cooling: Fanless, optional with fan

More details

Temperature: 0 °C to +50 °C
Mounting: Control cabinet key holes, book size format
Sidewall mounting optional
Compliance: CE, CB, UL, FCC
Kontron product group: Embedded Box PC
Kontron product family: KBox C-Series
