Kontron

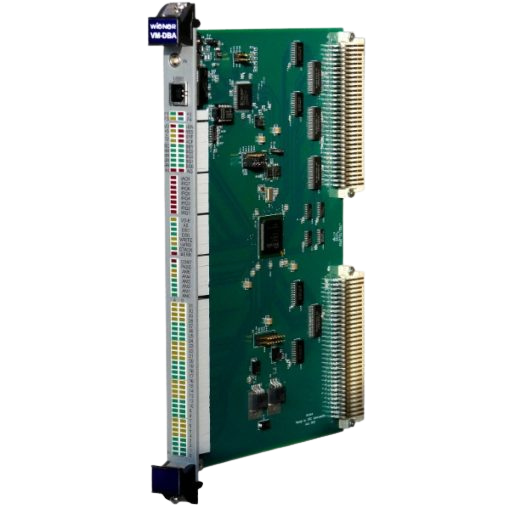

Kontron VM-DBA VME Display and Bus Analyzer Module
Kontron product groupVME
Kontron product familyAccessories
Specifications 3
More details
- Features
- Compliance: Fully conforms to ANSI/IEEE STD 1014, IEC 821, IEC 297
Control & Monitoring: Programmable trigger conditions, USB and VME access, MS Windows software for waveform analysis
Power & Efficiency: Low-power CMOS design with 1.4 A typical current draw
Design & Components: Dual on-board SPI memories for FPGA configurations, firmware upgradable via VME
Mechanical: 6U single-slot module, front-panel LEMO trigger input
Functionality: Visualization of all key VME signals (data, address, IRQ, control, and voltage lines) via color LEDs - Kontron product group
- VME
- Kontron product family
- Accessories
Price history
