Kontron

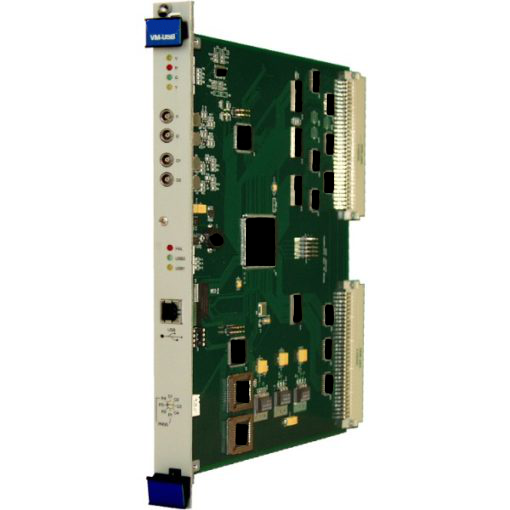

Kontron VM-USB VME Controller with USB-2 interface
Kontron product groupVME
Kontron product familyAccessories
Specifications 3
More details
- Features
- Compliance:
Fully compliant with ANSI/IEEE STD 1014, IEC 821, and IEC 297
Power & Efficiency:
Low-power CMOS design with typical power consumption of 1.2 A @ +5 V
Protection:
Integrated bus arbitration and interrupt handling with full IRQ1–7 support
Control & Monitoring:
Programmable sequencing and trigger conditions
USB 2.0 and VME access
supported by Windows, Linux, and LabVIEW software
Design & Components:
Xilinx Spartan-3 FPGA with dual on-board flash for configuration storage
firmware upgradable via USB
selectable configuration via rotary switch
Mechanical:
6U single-slot VME module with front-panel connectors for NIM/TTL I/O, LEMO trigger input, and diagnostic LEDs" - Kontron product group
- VME
- Kontron product family
- Accessories
