Kontron

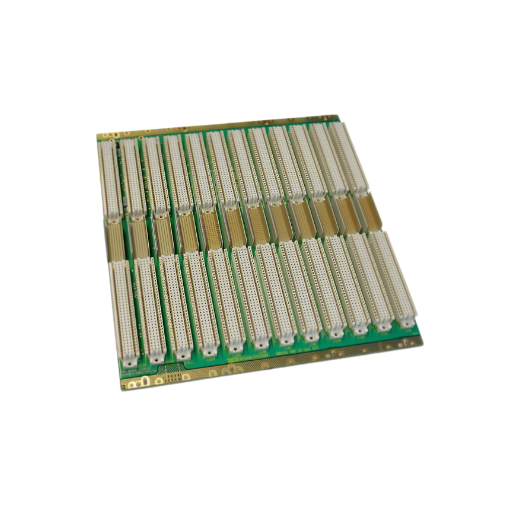

Kontron VME64x 6U Backplane – Series 166
Form factorRackmount
Specifications 12
Environment & compliance
- Temperature
- Operating temperature with active termination: 0 °C to +70 °C
with passive termination: -40 °C to +85 °C - Operating Humidity
- Relative humidity: 90%, non-condensing
I/O & expansion
- Free Slots
- Available configurations: 3, 9, 10, and 21 slots
- Connector
- 160-pin, 2 mm press-fit connectors, quality grade 2
power connection through a terminal bar or M6 screw terminal
chassis-ground connection via combined M6 screw and Faston 6.3 × 0.8 mm
Power
- Power & Efficiency
- Power consumption with both ends terminated: active < 0.1 A, passive < 1.6 A
permissible current loads: terminal bar 200 A, combined double-spade/screw connection 25 A, and Faston connector 10 A
current load per slot: +3.3 V 12.5 A, +5 V 9.0 A, +12 V 1.5 A, -12 V 1.5 A, +5 V standby 1.5 A, and +48 V (38–75 V) 3.0 A
Physical
- Form Factor
- 3U J1
designed for VME64x systems
More details
- Backplanes
- Slot pitch: 4 HP (20.32 mm)
active or passive termination on/in the backplane
daisy chaining/bus grant electronically automatic using an OR gate or manual using jumpers or wire-wrap on request - Mechanical
- PCB thickness: 4.3 mm (0.17 in)
slot pitch: 4 HP or 20.32 mm - Design & Components
- RF-optimized PCB design using FR-4 material
ohmic resistance: < 1.5 Ω
signal-line surge impedance: 60 Ω
continuous chassis-ground surface in the mounting area
RF coupling of rack and system ground via 10 nF, 200 V capacitors at each slot - Compliance
- ANSI/VITA 1.1-1997 base specification
- Kontron product group
- VME
- Kontron product family
- Backplanes
