Kontron

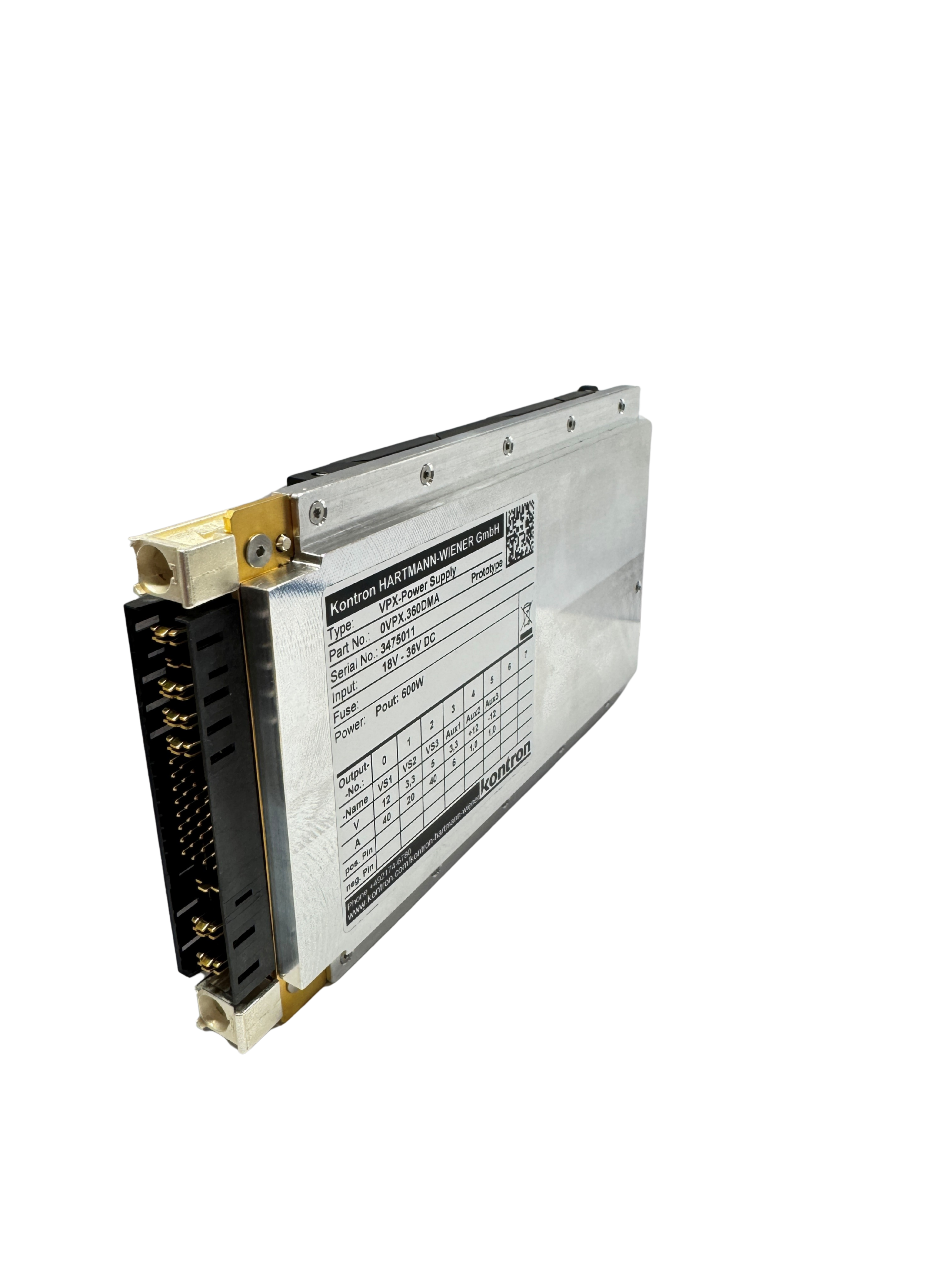

Kontron VPX360
Kontron product groupVPX
Kontron product familyPower Supply
Specifications 8
Power
- Power & Efficiency
- Next Gen power conversion technology
Output power up to 600 W with high efficiency
Dual / wide input voltage range: 12 V DC … 68 V DC (nominal 28V and 48V)
Reverse polarity and input overvoltage protection
Physical
- Mechanical Dimensions
- 100.0 mm x 168.5 mm x 19.56 mm (3.94 in x 6.63 in x 0.97 in)
More details
- Compliance
- Compliant to VITA 62 specification
MIL-STD-461, MIL-STD-704, MIL-STD-1275 compliance (to be tested as per VITA 62, par. 3.2.1)
Ruggedized to MIL-STD-810, with standard conformal coating (other on request) - Protection Features
- Voltage sense controlled
Over Voltage, Under Voltage, Over Current, Over Temperature protection - Management & Control
- Microprocessor controlled
I²C bus communication for monitoring (status, input and 6 output voltages and currents, temperatures)
Micro-USB connector for communication and firmware updates
IPMI support as per VITA 46.11 - Design & Components
- No liquid / wet / aluminum electrolytic capacitors
- Kontron product group
- VPX
- Kontron product family
- Power Supply
