Kontron

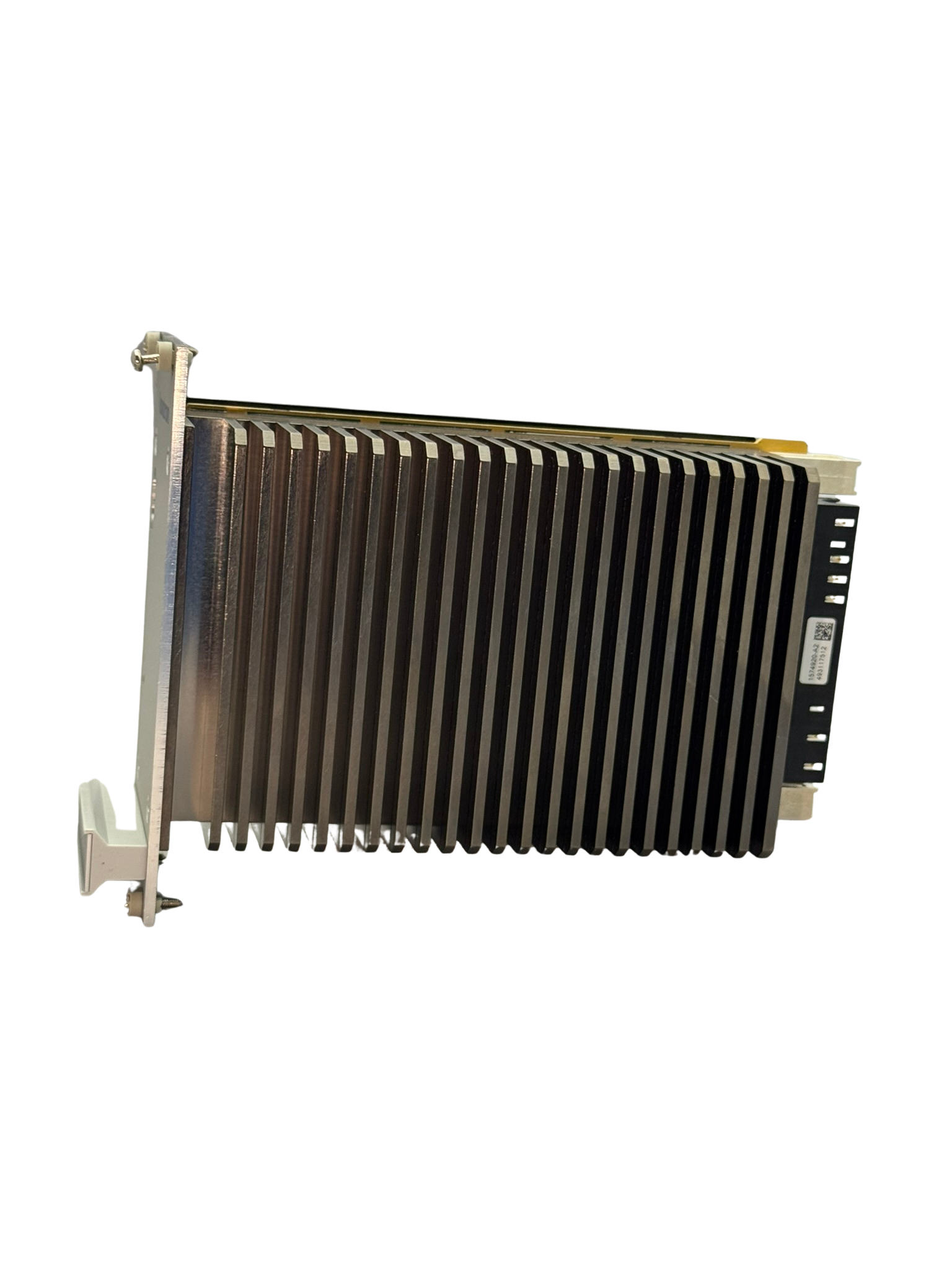

Kontron VPX360 Air-cooled
Power in28 V DC
Specifications 12
Environment & compliance
- Temperature
- Operating temperature: -40 °C to +85 °C at up to 95% relative humidity
linear power derating from 600 W to 500 W between +75 °C and +85 °C
storage temperature: -55 °C to +105 °C
I/O & expansion
- Other Features
- Optional external hold-up circuit
28 V version: VPX360DMA, 600 W, 28 V key and standard acrylic conformal coating
28 V ordering codes: VPXBL360-DMA21100 and VPXBR360-DMA21100 with RoHS
48 V version: VPX360EMA, 600 W, 48 V key and standard acrylic conformal coating
48 V ordering codes: VPXBL360-EMA21100 and VPXBR360-EMA21100 with RoHS
Power
- Power & Efficiency
- Nominal input voltage: 28 V DC or 48 V DC, depending on version and mechanical keying
input voltage range: 12 V DC to 68 V DC
minimum turn-on voltage: 12 V DC
minimum turn-off voltage: 8 V DC
maximum continuous input voltage: 68 V DC
maximum peak input voltage: ±250 V for less than 1 ms
reverse-polarity and input-overvoltage protection
outputs are disabled when the input voltage exceeds 68 V DC for more than 600 ms, with automatic restart after 10 seconds - Input Voltage
- Nominal input voltage: 28 V DC or 48 V DC, depending on version and mechanical keying
input voltage range: 12–68 V DC
minimum turn-on voltage: 12 V DC
minimum turn-off voltage: 8 V DC
maximum continuous input voltage: 68 V DC
maximum peak input voltage: ±250 V for less than 1 ms
Software & security
- Software Support
- Programmable enable/inhibit behavior
programmable power-on delay for each channel
integrated event log
customizable failure-handling behavior available on request
More details
- Mechanical
- Form factor: 3U VPX CC, air-cooled
pitch: 10 HP / 2.0 inches
dimensions: 122.40 × 171.04 × 50.46 mm
weight: 1.2 kg / 2.6 lbs - Protection Features
- Overvoltage, undervoltage, overcurrent, overtemperature, reverse-polarity and input-overvoltage protection
hardware current limiting
outputs disabled when input voltage exceeds 68 V DC for more than 600 ms, with automatic restart after 10 seconds
internal PCB temperature protection threshold: 125 °C, with outputs disabled when exceeded
maximum internal working temperature: 125 °C
input-to-output isolation: 500 V
input-to-case-ground isolation: 500 V
output-to-case-ground isolation: 500 V
case-ground-to-safety-ground resistance: <10 mΩ, to be confirmed - Management & Control
- Microprocessor-controlled monitoring of input status, six output voltages and currents, and temperatures
I²C bus communication with optional control functions
USB-C for communication and firmware management
optional IPMI support according to VITA 46.11
control and status signals include ENABLE, INHIBIT, FAIL, SYSRESET, voltage sense, current sharing, geographic addressing and system management - Design & Components
- Air-cooled COTS power supply with next-Gen switching power conversion technology
input filter combined with booster and isolation stages
no liquid, wet or aluminum electrolytic capacitors
standard acrylic conformal coating for protection against moisture, dust, sand, salt atmosphere and environmental stress
alternative coatings available on request - Compliance
- Designed according to ANSI/VITA 62.0 and for compatibility with standard VITA 46.0 VPX chassis
designed to meet MIL-STD-810G environmental requirements
designed for MIL-STD-461F sections CE102, CS101, CS114, CS115 and CS116
designed for MIL-STD-704F normal transients LDC105, abnormal transients LDC302 and distortion spectrum LDC103
designed to meet MIL-STD-1275
compliance testing pending as indicated in the preliminary datasheet - Kontron product group
- VPX
- Kontron product family
- Power Supply
