MikroTik

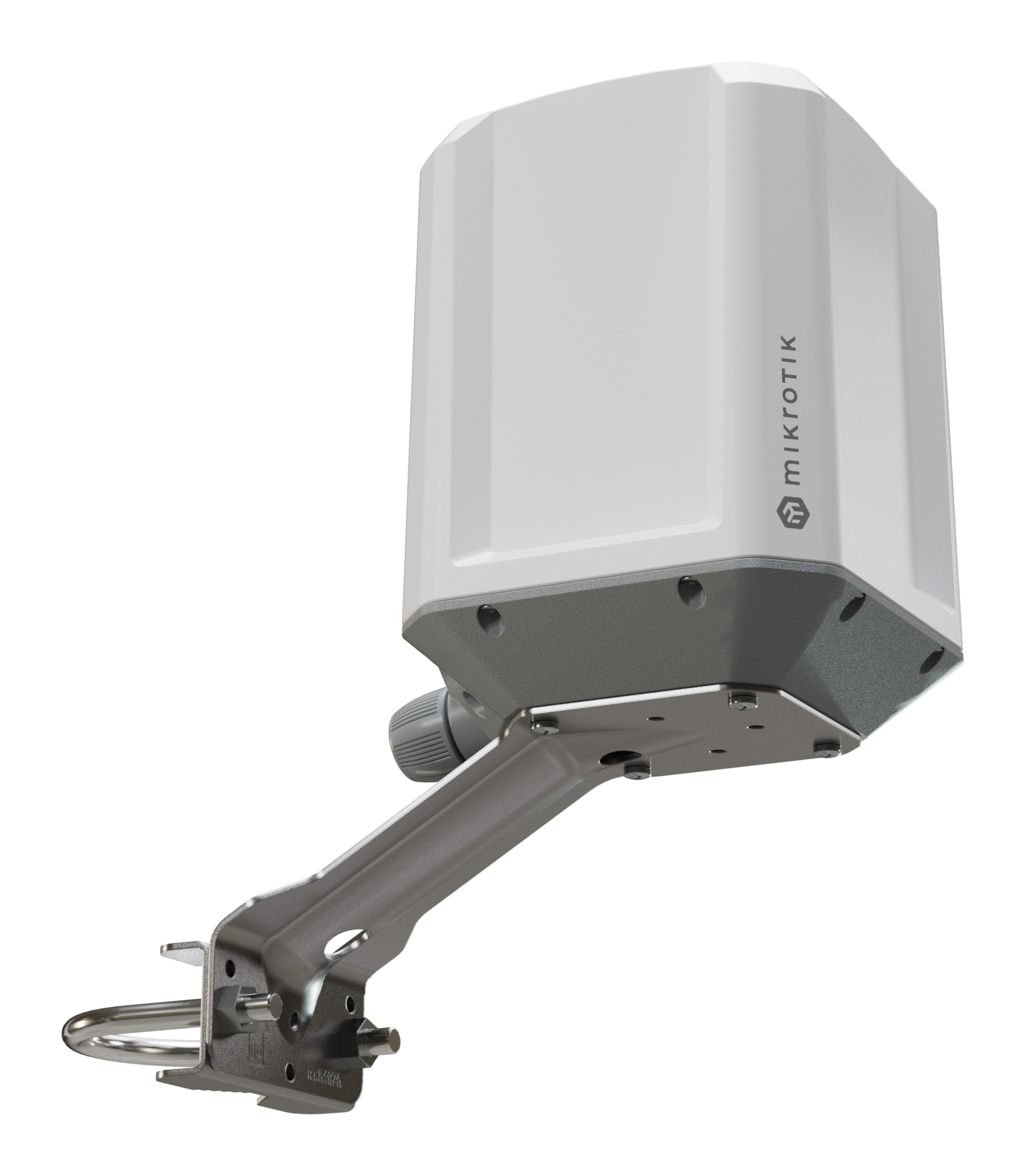

Lamp 5G R16 (Lampgm&RG520F-EU)

MPNLAMPGM&RG520F-EU
Processor88F3720
Storage32 MB
OSRouterOS v7

Specifications 37 normalized

Processor
Processor
88F3720
CPU core count
2
CPU nominal frequency
800 MHz
CPU Threads count
2
Memory & storage
Size of RAM
512 MB
Storage size
32 MB
Storage type
FLASH
Connectivity
10/100/1000 Ethernet ports
1
Number of 1G Ethernet ports with Reverse PoE (PoE-in)
1
Number of SIM slots
1 Modem (Micro SIM)
Number of M.2 slots
1
Power & battery
Max power consumption
10 W
Max power consumption without attachments
10 W
Physical & build
Cooling type
Passive
Operating system & software
Operating System
RouterOS v7
Other
Architecture
ARM 64bit
RouterOS license
3
MTBF
Approximately 200'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
1 (PoE-IN)
PoE in
802.3af/at
PoE in input Voltage
12-56 V
3G Category
R8 (DL: 42.2 Mbps
UL: 5.76 Mbps)
3G bands
1 (2100 MHz) 5 (850 MHz) 8 (900 MHz)
LTE Category
20 (DL: 2.0 Gbps
UL: 200 Mbps)
MIMO DL
4x4
MIMO UL
2x2
LTE FDD bands
1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz) 32 (1500 MHz)
LTE TDD bands
38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 42 (3500 MHz) 43 (3700 MHz)
5G NSA FDD bands
1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
5G NSA TDD bands
38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz)
5G SA FDD bands
1 (2100 MHz) 3 (1800 MHz) 5 (850 MHz) 7 (2600 MHz) 8 (900 MHz) 20 (800 MHz) 28 (700 MHz)
5G SA TDD bands
38 (2600 MHz) 40 (2300 MHz) 41 (2500 MHz) 75 (1500 MHz) 76 (1500 MHz) 77 (3700 MHz) 78 (3500 MHz)
TAC
86945405
E SIM
Yes
Certifications
CE, EAC, ROHS
IP
67

I/O Ports 2

  • 1× 10/100/1000 Ethernet
  • 1× 1G Ethernet with Reverse PoE (PoE-in)
