OnLogic

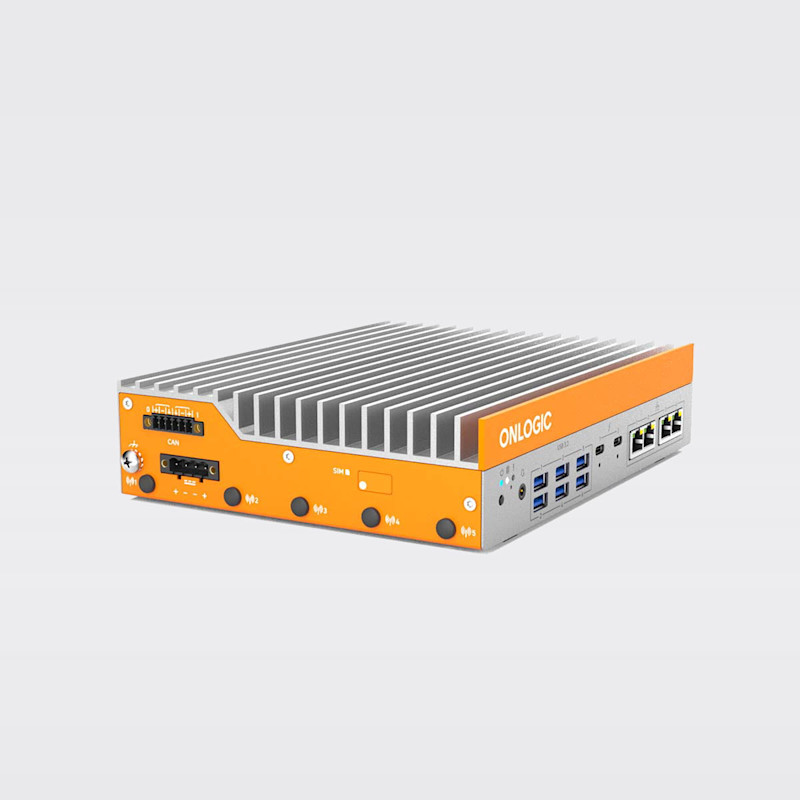

Helix 521 with Zededa

SKUZEDEDA-HX521
ProcessorIntel Core Ultra 5 125H
Memory96 GB DDR5-5600
GraphicsIntel Arc Graphics
OSUbuntu

Specifications 9 normalized

Processor
Processor
Intel Core Ultra 5 125H
Memory & storage
Memory
Up to 96 GB DDR5-5600
Storage
1 M.2 2242/60/80 B-key
1 M.2 2242/60/80 M-key
Drive Bays
1× M.2
Graphics
Graphics
Intel ARC Graphics
Connectivity
Networking
4x Intel I226LM / Intel I226V
Physical & build
Form Factor
50.8 mm x 177 mm x 225 mm
Cooling
Fanless
Operating system & software
Operating System
Red Hat, Ubuntu

I/O Ports 9

  • 1x 3.5mm Audio Jack
  • 6x USB 3.2 Gen 2 (Type A)
  • 2x Thunderbolt 4, USB Type C (40 Gb/s)
  • 4x 2.5Gb LAN
  • 4x COM (RS-232/422/485)
  • Optional CAN
  • Optional DIO
  • 2x DisplayPort 2.1 UHBR20
  • 2x Dual COM (RS-232, RS-485, RS-422)
