Prusa Research

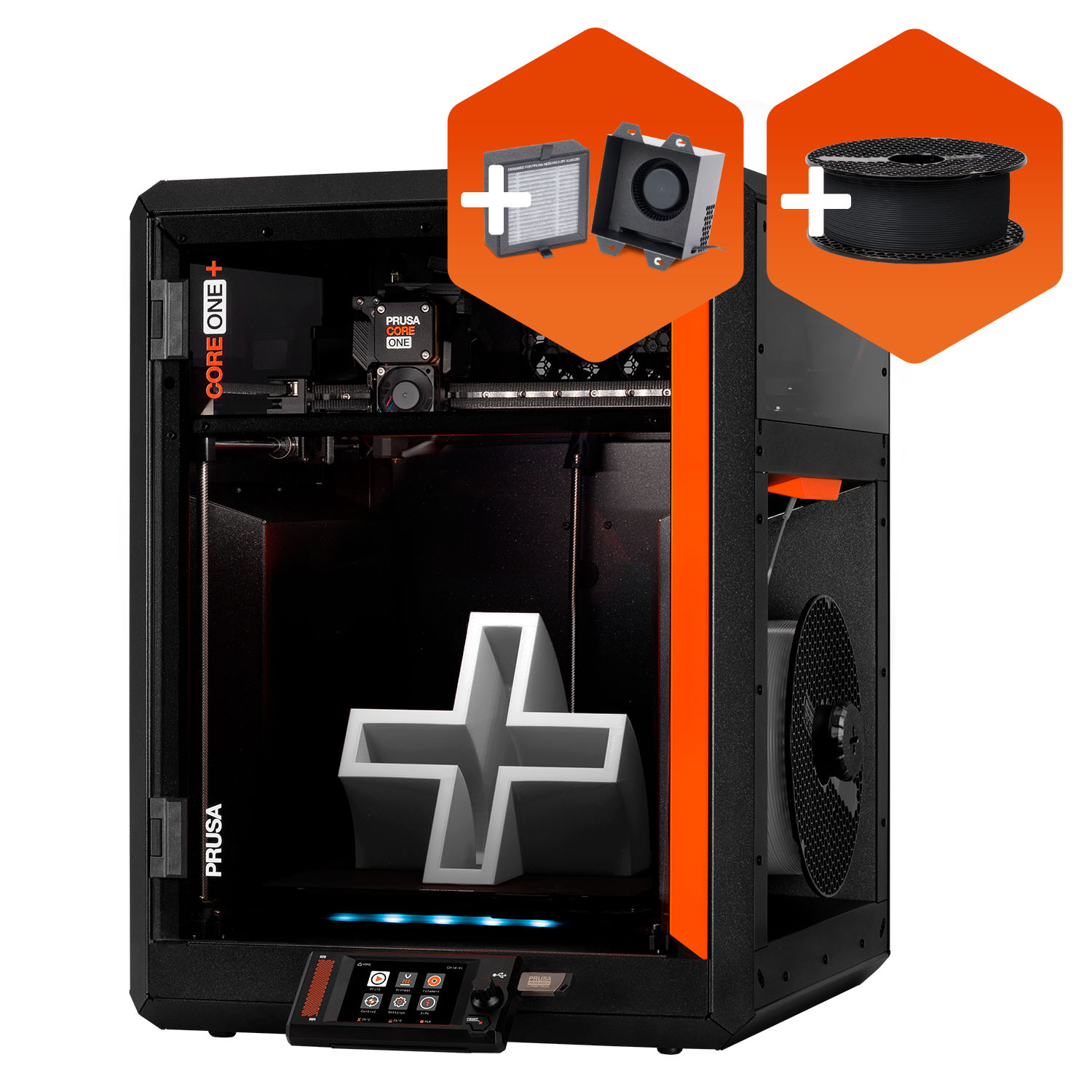

Prusa CORE One+ (Gen 2) Advanced Filtration Bundle
TechnologyFDM
Build volume250 × 220 × 270 mm
Max nozzle temp290 °C
Max bed temp120 °C
Layer range0.05–0.3 mm
EnclosureEnclosed
Weight49.6 lb
Specifications 48
Temperatures
- Max chamber temperature
- 55 °C / 131 °F
- Max heatbed temperature
- 120 °C / 248 °F
- Max nozzle temperature
- 290 °C / 554 °F
Electronics & firmware
- Firmware update interface
- USB drive, Prusa Connect, Prusa Mobile App
- Extruder electronics
- Custom breakout board for connecting fans, thermistors and other parts.
- Stepper motors
- Precise 0.9° X,Y stepper motors (prevents VFA)
- Stepper Drivers
- Trinamic 2130
- Mainboard
- Custom 32-bit xBuddy electronics with STM32
Sensors & calibration
- Power panic
- Custom made by Delta with Power Panic HW
- Bed calibration
- Automatic, Mesh Bed Leveling (only on print area)
- Thermistors
- 5 high-precision thermistors (genuine Semitec)
Physical & power
- Power Consumption
- PLA settings: 90 W / ABS settings: 110 W
- PSU
- 240 W
- Weight
- 22.5 kg
- Printer dimensions
- 415 × 444 × 555 mm
16.3 × 17.5 × 21.8 in (X×Y×Z) - Assembly
- Assembled
Printing
- Supported materials
- PLA, PETG, Flex, PVA, PC, PP, CPE, PVB and when using the optional Advanced Filtration System ABS, ASA, HIPS, PA
- Print surface
- Magnetic heatbed with removable PEI spring steel sheets
- Print medium
- USB drive / LAN / internet via Prusa Connect or mobile Prusa App
- Nozzle
- High-flow Prusa Nozzle brass CHT - 0.4 mm
- Cooling fan
- High-performance turbine, 360° cooling system
- Drive system
- Nextruder Planetary Gear System, 10:1 gearbox ratio
- Filament path
- Aluminum heatsink, all-metal hotend
- Extruder
- Nextruder, Direct Drive, E3D V6 compatible (with adapter)
- Layer height
- 0.05-0.30 mm
- Filament diameter
- 1.75 mm
- Build Volume
- 250 × 220 × 270 mm
9.8 × 8.6 × 10.6 in
Connectivity
- Wireless
- NFC receiver, optional ESP Wi-Fi module (delivered with the printer)
Display & controls
- LCD screen
- 3.5" graphic 65k color screen
Features
- Phase Stepping
- Input shaper
- First layer calibration
- Door sensor
- Fan motors monitoring
- Loadcell sensor
- Filament Sensor (2 sensors)
- Ethernet connection
- Accelerometer compatibility
- GPIO Board compatibility
- Advanced Filtration System (optional)
- HEPA filtration (optional)
- MMU3 support
- Internal camera (optional, in-chamber solution)
- Lighting
- Quick-Swap nozzle system
- Prusa App for iOS and Android support
- Prusa Connect support
- Touch control
