StarTech.com

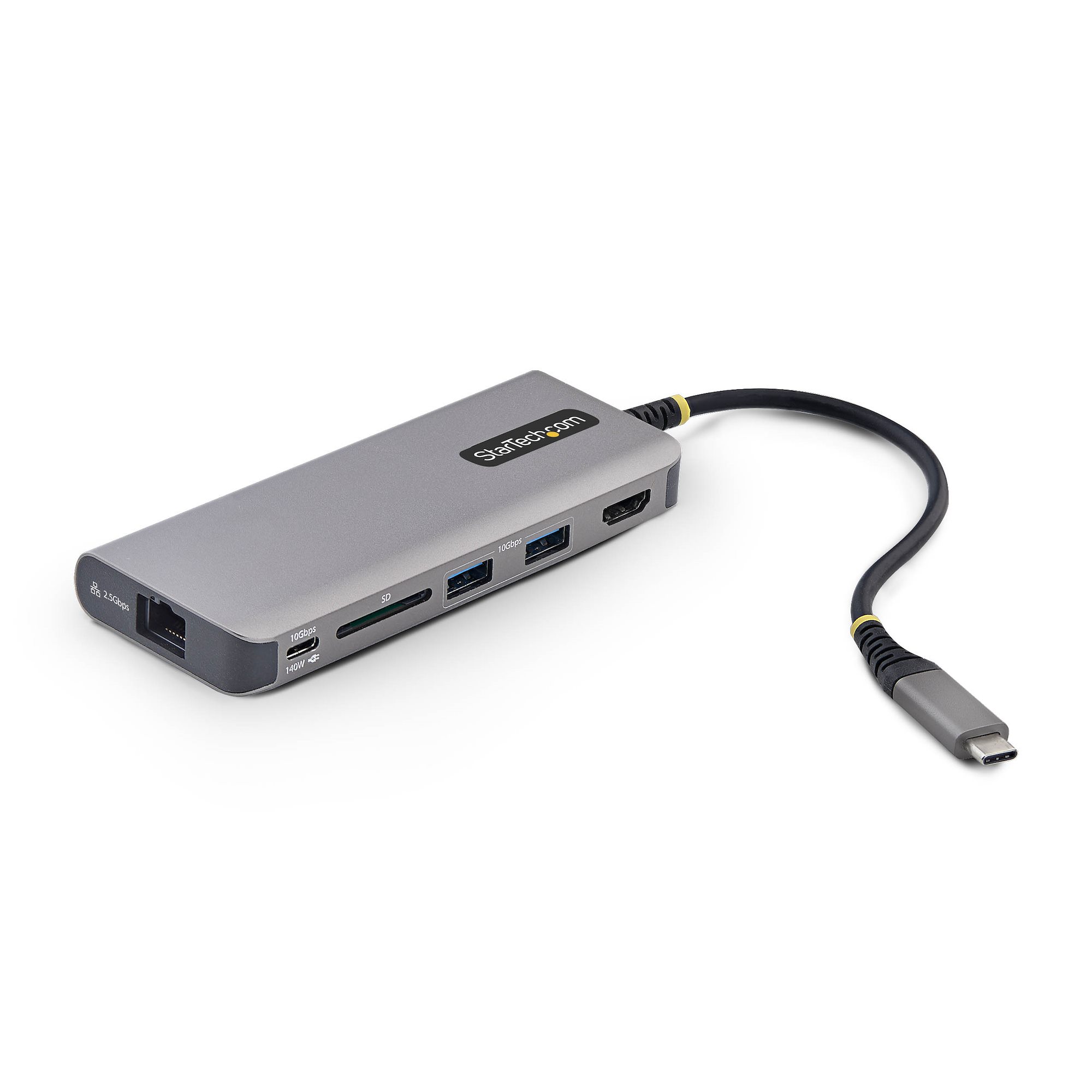

USB-C to HDMI Multiport Adapter, 140W PD Charging, 4K 60Hz, 3-Port USB 10Gbps Hub, SD Card Slot, 2.5GbE
Model
177B-USBC-MULTIPORTGTIN065030904162Weight0.23 lb
Specifications 45 normalized
Processor
- Chipset ID
- VIA - VL600
VIA - VL109
VIA - VL822
Realtek - RTL8156BG
Genesys Logic - GL3224
Memory & storage
- Storage Temperature
- -10°C to 70°C (14°F to 158°F)
Display
- Maximum Digital Resolutions
- 3840x2160 @ 60hz
- Displays Supported
- 1
- Number of Displays
- 1
Connectivity
- Wake-On-LAN (WOL)
- Yes
- Compatible Networks
- 2.5G/1G/100Mbps/10Mbps
- Host Connectors
- 1 x USB-C Dual-Mode DP++ (10Gbps, 7.5W / DP Alt-Mode)
Camera & audio
- Audio
- Yes
Power & battery
- Power Source
- Bus Powered and Host USB-C Power Adapter
- Power Delivery
- 140W
- Power Consumption
- SPR (Up to 100W) : 15W
EPR (Up to 140W) : 20W
Physical & build
- Weight of Product
- 3.7 oz [105 g]
- Shipping (Package) Weight
- 5.0 oz [141 g]
- Weight
- 3.7 oz [105 g]
- Dimensions
- 4.9 x 2.0 x 0.6 in (L x W x H)
- Color
- Space Gray
- Material
- Aluminum and Plastic
Operating system & software
- Included in Package
- 1 - Multiport Adapter
1 - Product Documentation - OS Compatibility
- Windows 11 ARM
Windows 10
macOS Sequoia (15.0)
macOS Sonoma (14.0)
macOS Tahoe (26.0)
macOS Ventura (13.0)
Linux
iOS
iPadOS
macOS Golden Gate (27.0)
Warranty & support
- Warranty
- 3 Years
- UASP Support
- Yes
- Full Duplex Support
- Yes
- 4K Support
- Yes
Other
- Product Type
- USB-C Multiport Adapters
- Special Notes
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery and DP alt mode.
If the USB-C Host does not support USB Power Delivery, the PD Power Port will not supply power to the USB-C Host.
A 4K-capable display is required to achieve UHD resolution (4K is also known as 4K x 2K).
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 Gen 2 (10Gbps).
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
The SD card slot supports SD and SDHC/SDXC cards utilizing the Ultra-High Speed I (UHS-I) interface - System and Cable Requirements
- A host device with an available USB-C port (to ensure full adapter functionality, the host device's USB-C port must support USB Power Delivery and DP alt mode).
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter). - Output Voltage
- 5 DC
- Plug Type
- USB Type-C (24 pin) USB Power Delivery Only
- Cable Length
- 8.0 in [20.3 cm]
- Product Length
- 4.9 in [12.5 cm]
- Product Width
- 2.0 in [50 mm]
- Product Height
- 0.6 in [15 mm]
- Operating Temperature
- -10°C to 45°C (14°F to 113°F)
- Operating Humidity
- 10% ~ 90% RH
- Maximum Data Transfer Rate
- 10Gbps
- Type and Rate
- USB 10Gbps
- PXE
- Yes
- MTBF
- 28,434 Hours
- Bus Type
- USB-C
- Industry Standards
- USB 3.2 Gen 2 (10Gbps)
HDMI 2.0
USB Power Delivery Specification Rev. 3.2 - Package Width
- 2.2 in [57 mm]
- Package Depth
- 7.5 in [19 cm]
- Package Height
- 0.7 in [19 mm]
- TAA Compliant
- No
I/O Ports 5
- 1 x RJ-45
- 1 x USB-C Dual-Role (10Gbps, 4.5W / 100W PD Input)
- 1 x SD Card Slot
- 2 x USB-A (10Gbps, 4.5W)
- 1 x HDMI
