LS500WH 3,000 Lumens WXGA Shorter Throw LED Projector with 125% Rec. 709

SKULS500WHGTIN766907016734

DisplayWXGA 1280 x 800

Weight5.4 lb

Specifications 46

Display

Screen Size: 30 - 300 in. / 0.76 - 7.62 m
Display Resolution: WXGA (1280x800)
1280 x 800
On Screen Display: Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
PC Resolution (max): 1920x1080
PC Resolution (min): 640 x 480
Mac Resolution (max): 1920 x 1080
Mac Resolution (min): 640 x 480
Brightness (Lumens): 3,000 LED (2,000 ANSI)
Aspect Ratio: 16:10

Connectivity

USB 2.0 Type A: 1
HDMI 1.4 (with HDCP 1.4): 1
Kensington Lock Slot: 1

Camera & audio

3.5mm Audio Out: 1
3.5mm Audio In: 1
RCA Audio In (L/R): 1
Internal Speakers: 2 W (x1)

Power & battery

Light Source (watt): RGB LED

Physical & build

Color Depth: 1.07 Billion Colors

Warranty & support

Warranty: Three-year limited warranty on parts and labor, 1-year limited warranty on the light source, 1st year free Express Exchange service. (One year Express Exchange Service requires product registration).

More details

Throw Distance: 1m-10.98m (100""@3.34m)
Throw Ratio: 1.55-1.70
Lens: 1.1x optical zoom
Light Source Life, Normal (hours): 30000
Input Lag: 37ms
Light Source: LED
Dynamic Contrast Ratio: 3,000,000:1
Keystone: Vertical (+/- 40°)
Frequency Horizontal: 15K~102KHz
Frequency Vertical: 23-120 Hz
Control (RS232): 1
Voltage: 100-120V+/- 10%, 50/60 Hz
Consumption (typical): 156 W
Stand-by: <0.5W
Physical Controls: Keypad, Power key
Temperature: 32-104º F (0 - 40º C)
Net (lbs): 5.4 lbs
Gross (lbs): 7.8 lbs
Net (kg): 2.5 kg
Gross (kg): 3.6 kg
Packaging (in.): 14.4 x 11.8 x 7.4
Physical (in.): 11.5 x 8.7 x 4.5
Packaging (mm): 365.0 x 300.0 x 188.0
Physical (mm): 293.0 x 221.0 x 115.0
Regulations: cTUVus
Package Contents: LS500WH projector, power cable, remote control, Quick Start Guide,
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.

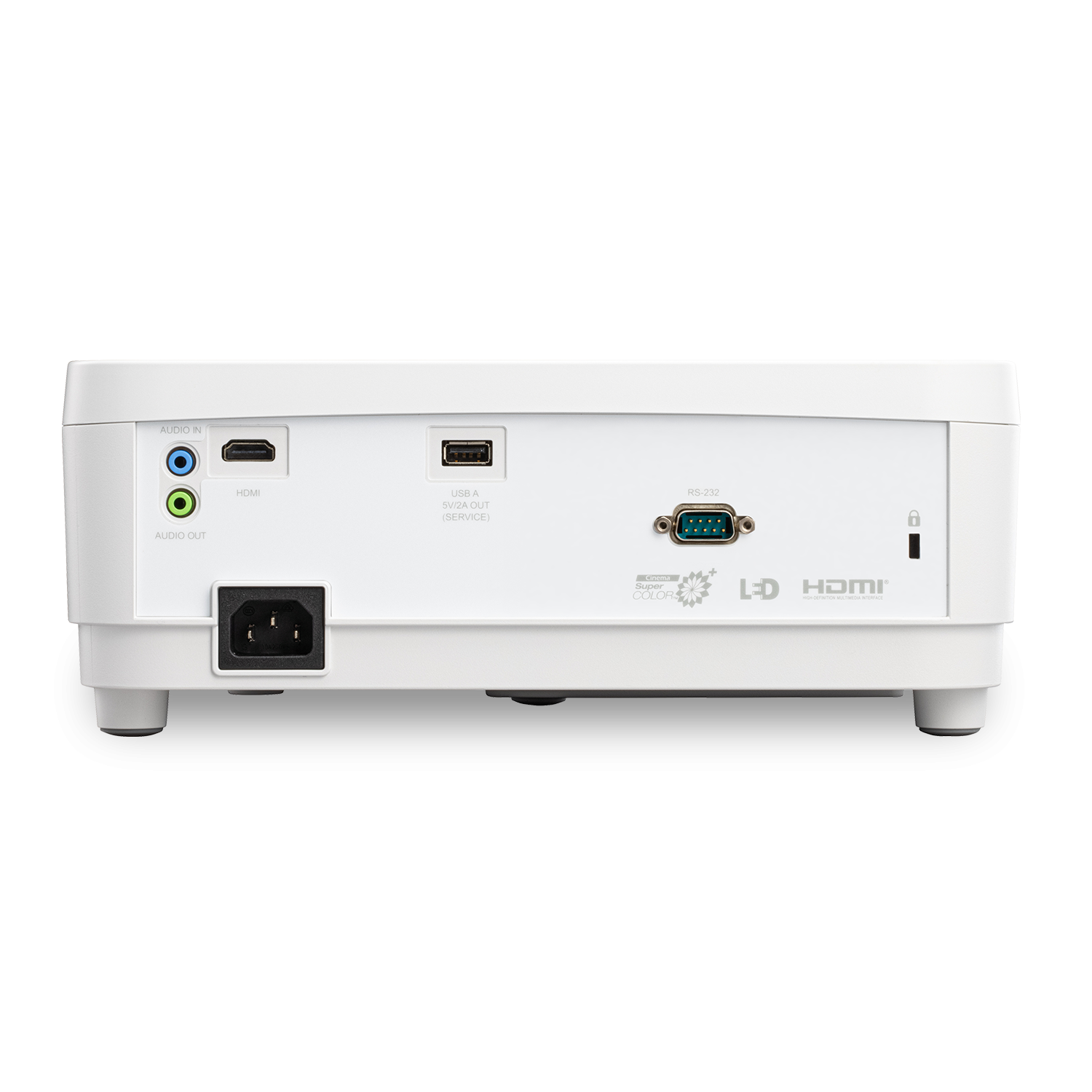

I/O Ports 5

1x USB 2.0 Type A
1x 3.5mm Audio Out
1x 3.5mm Audio In
1x HDMI 1.4 (with HDCP 1.4)
1x RCA Audio In (L/R)
