ViewSonic

LS625X - 1024 x 768 Resolution, 3,200 ANSI Lumens, 0.49 Throw Ratio

SKULS625XGTIN766907979916
Display1024 x 768
Weight13.6 lb

Specifications 50

Display
Screen Size
60 - 300 in. / 1.5 - 7.6 m
Display Resolution
XGA (1024x768)
1024 x 768
On Screen Display
Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
PC Resolution (max)
1920 x 1080
Mac Resolution (max)
1920 x 1080
Brightness (Lumens)
3,200 ANSI
Aspect Ratio
4:3
Connectivity
Ethernet LAN (RJ45)
1
HDMI 1.4 In
1
HDMI 1.4 (with HDCP 1.4)
1
Mini USB
1
Kensington Lock Slot
1
Camera & audio
3.5mm Audio Out
1
3.5mm Audio In
1
Internal Speakers
10 W (x1)
Physical & build
Color Depth
1.07B Color (R/G/B 10bit)
Warranty & support
Warranty
Three-year limited warranty on parts and labor, 1st year free Express Exchange service. (One year Express Exchange Service requires product registration).
More details
Throw Distance
2.1 - 10.4 ft / 0.6 - 3.2 m
Throw Ratio
0.49
Lens
Fixed Zoom
Light Source Life, Normal (hours)
20000
Light Source Life, Dynamic Eco-Mode (hours)
20000
Input Lag
37ms
Light Source
Laser
Keystone
Vertical (+/- 40°)
Frequency Horizontal
15K~102KHz
Frequency Vertical
23~120 Hz
3.5mm 12V Trigger
1
Control (RS232)
1
VGA In
2
VGA Out
1
Composite RCA Video In
1
S-Video In
1
Consumption (typical)
305 W
Stand-by
<0.5W
Physical Controls
Power, keystone/arrow keys, left/blank, menu/exit, right/panel key lock, mode/enter, auto, source
Temperature
32-104º F (0 - 40º C)
Humidity (non-condensing)
0-90%
Net (lbs)
13.6 lbs
Gross (lbs)
15.4 lbs
Net (kg)
6.2 kg
Gross (kg)
7.0 kg
Packaging (in.)
19.1 x 9.4 x 15.4
Physical (in.)
15.1 x 5.8 x 11.5
Packaging (mm)
485.0 x 238.0 x 390.0
Physical (mm)
383.0 x 147.0 x 291.0
AV Control
AMX Certified, Crestron Certified, PJ Link Certified
Regulations
FCC, cTUVus, ROHS
Package Contents
LS625X projector, power cable, VGA cable, remote control, Quick Start Guide
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.

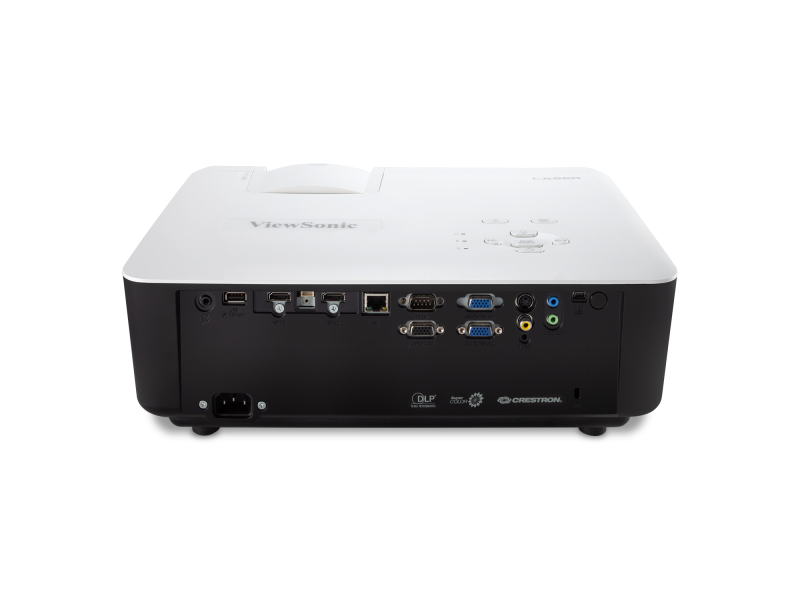

I/O Ports 8

  • 1x Ethernet LAN (RJ45)
  • 1x 3.5mm Audio Out
  • 1x 3.5mm Audio In
  • 1x HDMI 1.4 In
  • 1x HDMI 1.4 (with HDCP 1.4)
  • 2x VGA In
  • 1x VGA Out
  • 1x Mini USB
