ViewSonic

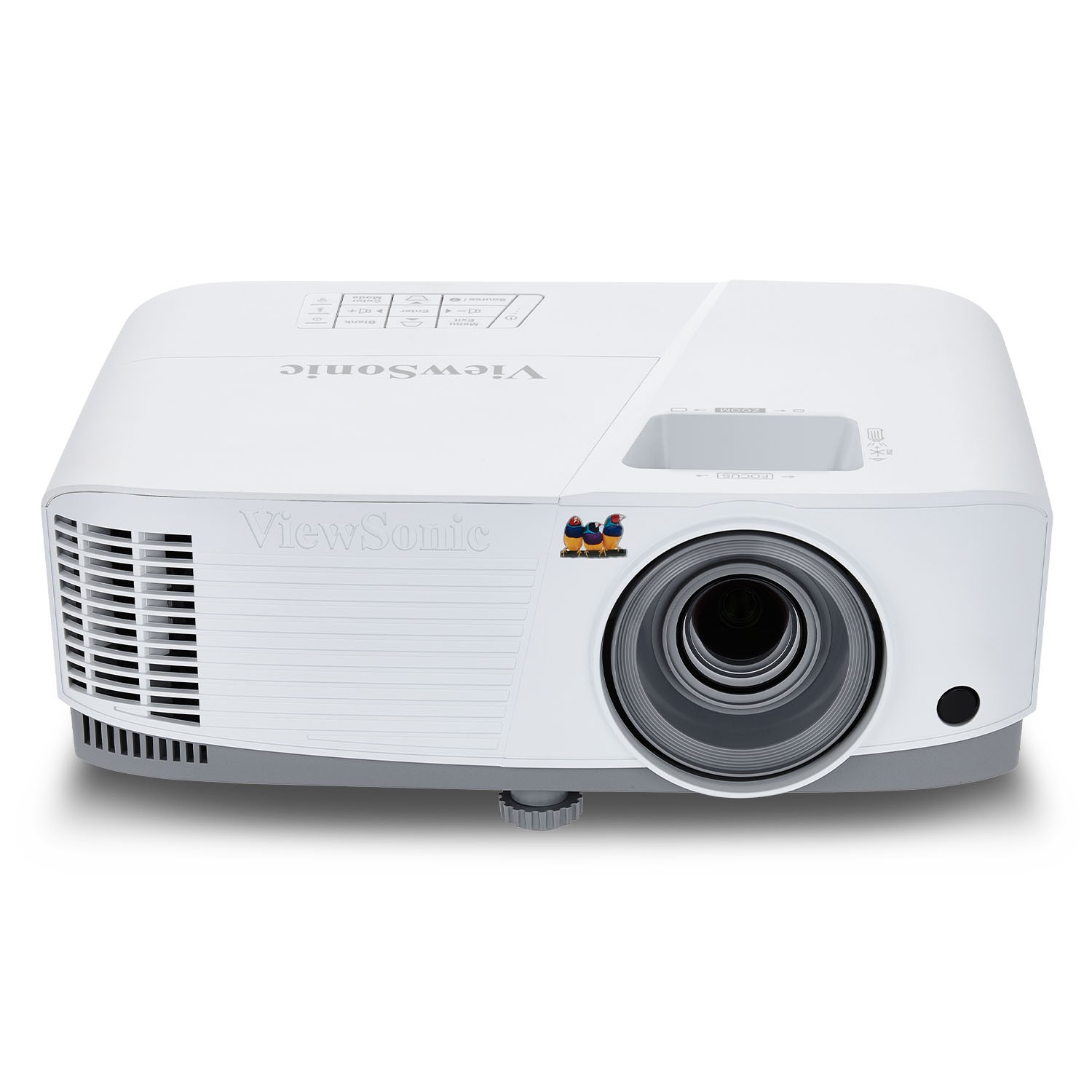

PA504W 4,000 Lumens WXGA High Brightness Projector with LAN Control, Dual HDMI, 0.65" DMD Chip

SKUPA504WGTIN766907026306
DisplayWXGA 1280 x 800
Weight5.1 lb

Specifications 46

Display
Screen Size
30 - 300 in. / 0.76 - 7.62 m
Display Resolution
WXGA (1280x800)
1280 x 800
On Screen Display
Display, Image, Power Management, Basic, Advanced, System, Information (See user guide for full OSD functionality)
PC Resolution (max)
VGA(640 x 480) to FullHD(1920 x 1080)
Mac Resolution (max)
480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Brightness (Lumens)
4,000 ANSI
Aspect Ratio
16:10
Connectivity
Ethernet LAN (RJ45)
1
USB 2.0 Type A
1
HDMI 1.4 (with HDCP 1.4)
2
Kensington Lock Slot
1
Camera & audio
3.5mm Audio Out
1
3.5mm Audio In
1
Internal Speakers
10 W (x1)
Physical & build
Color Depth
1.07B Color (R/G/B 10bit)
Warranty & support
Warranty
Three-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service. (One year Express Exchange Service requires product registration).
More details
Throw Distance
2.5-33.3ft (100"@8.56ft)
Throw Ratio
1.21-1.57
Lens
1.3x optical zoom
Light Source Life, Normal (hours)
6000
Light Source Life, Dynamic Eco-Mode (hours)
15000
Light Source
DLP Lamp
Dynamic Contrast Ratio
22,000:1
Keystone
Vertical (+/- 40°)
Frequency Horizontal
15K~102KHz
Frequency Vertical
23~120 MHz
Control (RS232)
1
VGA In
1
VGA Out
1
Composite RCA Video In
1
Voltage
100-240V+/- 10%, 50/60 Hz AC
Consumption (typical)
255 W
Stand-by
<0.5W
Physical Controls
Keypad, Power key
Temperature
32-104º F (0 - 40º C)
Net (lbs)
5.14 lbs
Gross (lbs)
7.81 lbs
Net (kg)
2.33 kg
Gross (kg)
3.54 kg
Packaging (in.)
16.3 x 6.6 x 11.7
Physical (in.)
11.6 x 8.5 x 4.3
Packaging (mm)
415.0 x 168.0 x 297.0
Physical (mm)
294.0 x 218.0 x 110.0
Regulations
cTUVus
Package Contents
PA503HD, power cable, remote control, Quick Start Guide,
Recycle/Disposal
Please dispose of in accordance with local, state or federal laws.

I/O Ports 7

  • 1x USB 2.0 Type A
  • 1x Ethernet LAN (RJ45)
  • 1x 3.5mm Audio Out
  • 1x 3.5mm Audio In
  • 2x HDMI 1.4 (with HDCP 1.4)
  • 1x VGA In
  • 1x VGA Out
