Grandstream

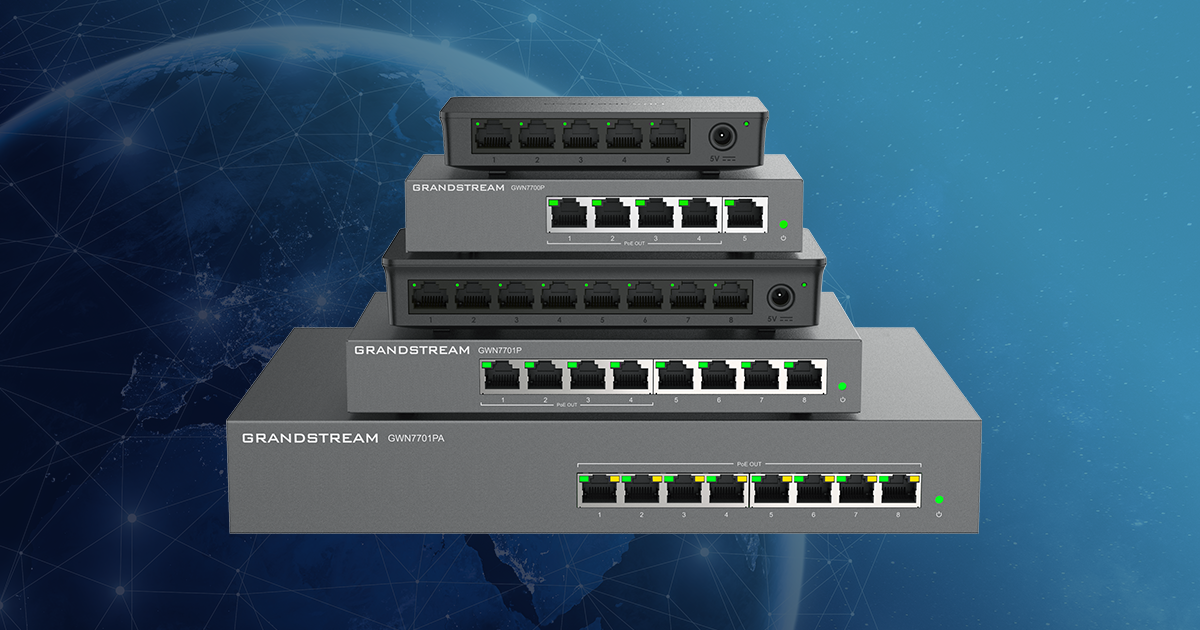

GWN7701(P/pa)
Ports8 ports
Port speed1G
PoE budget4 on GWN7701P, 8 on GWN7701PA
Specifications 9
Ports & interfaces
- Port Features
- 8× 10/100/1000 Mbps RJ-45 Ports AUTO Negotiation AUTO MDI/MDIX
- Gigabit Ports
- 8
- PoE Ports (PoE Models)
- 4 on GWN7701P, 8 on GWN7701PA
Performance
- Jumbo Frame
- 9 KB
- Switching Capability
- 16Gbps
Power & PoE
- PoE Configuration (PoE Models)
- 1-4 & 1-8 Ports 802.3 af/at compliant GWN7701P: Up to 30 W on Each Port, Total 60 W Power Budget GWN7701PA: Up to 30 W on Each Port, Total 145 W Power Budget Overload to cut off the lowest-priority port GWN7701P Priority: Port 4 to Port 1 GWN7701PA Priority: Port 8 to Port 1
Management & software
- Standards and Protocols
- IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Physical & environment
- Operating Humidity
- 10% to 90%
More details
- Enclosure
- Plastic GWN7801, Metal GWN7801P/PA
