Lenovo

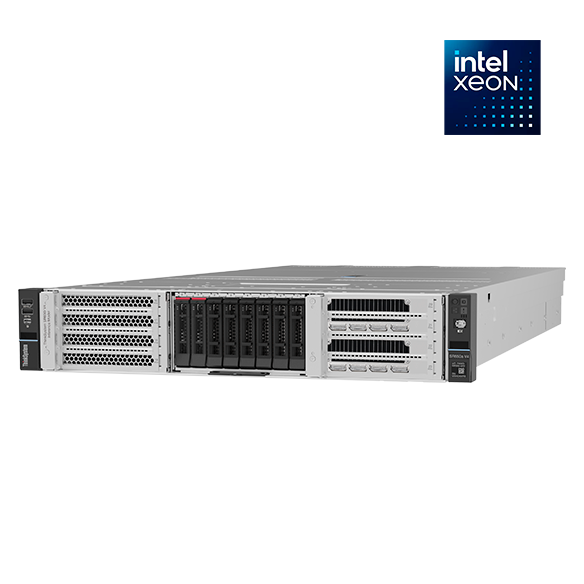

ThinkSystem SR650i V4

Model7DGDA03SNA
ProcessorUp to 2x Intel Xeon 6 · 86C
Memory8 TB
Storage491.52 TB
GraphicsNVIDIA

Specifications 27

Processor
Processor
Up to 2x Intel Xeon 6 processors, up to 86 cores and 350 W TDP
Memory & storage
Memory Included
8x64 GB 2Rx4
Memory Slots Available
8(4)
Memory
Up to 32x TruDDR5 3DS/RDIMMs with speeds up to 6400 MHz
up to 16x TruDDR5 MRDIMMs with speeds up to 8000 MHz. Maximum capacity up to 8 TB.
Total Memory Capacity
8 TB/TruDDR5
Drive Bays
Up to 8 x 2.5"
Graphics
Graphics
NVIDIA
Connectivity
Networking
OCP adapter installed in the OCP 3.0 slot Networking PCIe adapters
PCIe Expansion Slots (maximum)
Up to 8
Maximum Expansion
Up to 32 DIMM
Expansion Slots
Up to 14x PCIe Gen5 slots 2x OCP 3.0 slots for flexible networking options
Ports
Front: Optional 2x USB 3.0 with XClarity Mobile support and 1x mini DP Optional External diagnostics handset port Rear: 2x USB 3.0 G1 VGA 1GbE RJ-45 dedicated management port Optional: 2nd 1GbE management port in OCP slot location Optional Serial port
Power & battery
Power Supply
2x2700W Power Supply
Power
Dual Redundant AC & DC (multiple wattages)
Platinum & Titanium rated PSUs
Physical & build
Form Factor
2U Rack
Form Factor/Height
2U rack server
Cooling
Lenovo Neptune Core and Neptune Air technology
Operating system & software
Included Warranty
3 Year CRU & On-site 9x5 Next Business Day (NBD)
OS Support
Microsoft SUSE Red Hat VMware Visit lenovopress.com/osig for details.
Warranty & support
Warranty
1-year and 3-year customer replaceable unit and onsite service, Next business day 9 to 5
Optional service upgrades
RAID Level Supported
0, 1, 5, 10
Supported Hard Disk
2.5" SAS/SATA/NVMe
HBA/RAID Support
VROC for NVMe SW RAID (0,1,5,10) Standard and internal PCIe RAID/HBA adapters
More details
Internal Hard Disk (Max)
491.52 TB
HDC Description
ThinkSystem M.2 RAID B550i-2i SATA/NVMe Enablement Kit
GPUs
Up to 8x single-width GPUs or 4x double-width GPUs
Systems Management
Lenovo XClarity Controller
